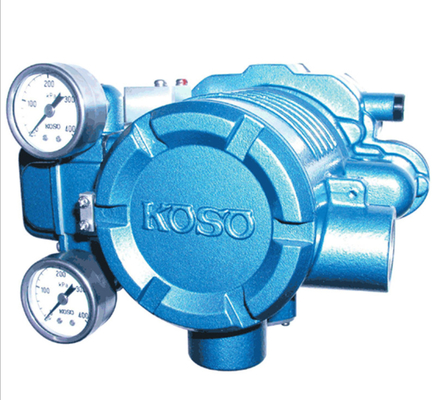

Single Acting Pneumatic Valve Positioner
| Place of Origin | Japan |
|---|---|
| Brand Name | KOSO |
| Certification | CCC CE ISO |
| Model Number | PPA800 |
| Minimum Order Quantity | 1 |
| Price | $1300-$1600PCS |
| Packaging Details | Strong carton Packing with export standard. If each model more than 300PCS can make colored strong carton |
| Delivery Time | 14 work days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 1000Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Die-cast Aluminum, AISI 316L | Warranty | 1 Year |
|---|---|---|---|
| Air Supply | 140-700kPa | Input Signal | 20-100,20-60,60-100kPa |
| Max. Capacity | 175Nl/min. At Sup.140kPa | WG | 4.5 Kg |
| Highlight | single acting Pneumatic Valve Positioner,Pneumatic Valve Positioner 700kPa,700kPa Digital Valve Positioner |
||
You can tick the products you need and communicate with us in the message board.
| Type | PPA800 for single acting | PPC800 for Double acting | |
|---|---|---|---|
| Linearity | +/-1.0% | +/-1.5% | |
| Hysteresis | 0.5% | 0.8% | |
| Response Level | 0.1% | 0.2% | |
| Repeatability | 0.2% | 0.3% |
Product Description
Same series as EP800 but this works having pneumatic signal (20 to 100Kpa). Also double acting and single acting types are available.
This series is for positioning of pneumatic actuator oper-ated cotrol valves. Input signal 4 to 20mA DC is changed to air pressure. Accurate positioning is achieved by having valve position feedback from valve stem.
-
Type PPA800 for single acting PPC800 for Double acting Application Linear-motion Valve/Rotary-motion Valve/Long-stroke Valve Input Signal 20-100,20-60,60-100kPa Air supply 140-700kPa Single acting type Double acting type Linearity +/-1.0% +/-1.5% Hysteresis 0.5% 0.8% Response Level 0.1% 0.2% Repeatability 0.2% 0.3% Air consumption 5Nl/min. at sup.140kPa 15Nl/min. at sup.400kPa Max. capacity 175Nl/min. at sup.140kPa 400Nl/min. at sup.400kPa Enclosure Weather proof Environment temp. Standard:-20 - 80/ Low temp.:-50 - 60/ High temp.:0 to 100 deg.C - 1. who are we?
