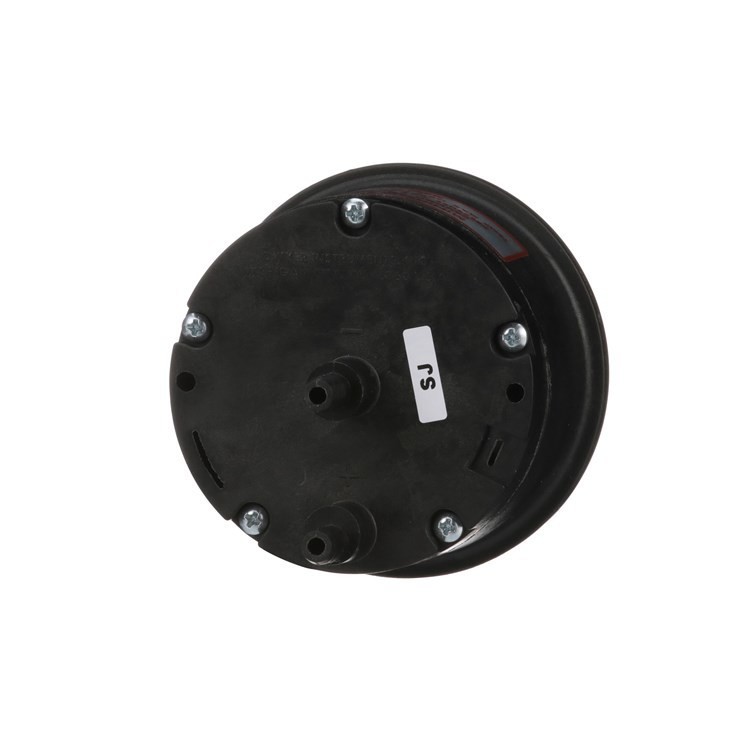

ODM Differential Pressure Gauge
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC CE |
| Model Number | 2-5000-100MM |
| Minimum Order Quantity | 1 |
| Price | $55- $75pc |
| Packaging Details | Strong carton Packing with export standard. If each model more than 300PCS can make colored strong carton |
| Delivery Time | 14 work days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 5000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Customized Support | OEM ODM |
|---|---|---|---|
| Service | Air And Compatible Gases. | Wetted Materials | Consult Factory. |
| Accuracy | ±5% Of FS At 70°F (21.1°C). | Weight | 6 Oz (170.1g). |
| Highlight | ODM Differential Pressure Gauge,Differential Pressure Gauge 2-5000-100MM,ODM High Accuracy Pressure Gauge |
||
You can tick the products you need and communicate with us in the message board.
| Pressure range | 0-3KPA | |
|---|---|---|
| Pressure range | 0-250pa | |
| Pressure range | 0-500pa | |
| Pressure range | 0-1kpa |
Product Description
SERIES 2-5000 MINIHELIC® II DIFFERENTIAL PRESSURE GAGE
Combining High Accuracy, Compactness, Dependability, and Low Cost
The 2-5000 series Minihelic® II differential pressure gauges are compact, small in size, low in price, and high in precision. They are widely used in various occasions where differential pressure needs to be monitored. The Minihelic® II differential pressure gauge is a full-featured analog differential pressure gauge with a pressure resistance of 30psig, and it is our smallest differential pressure gauge. As long as a 2-5/8” diameter round hole is opened on the panel, it can be easily used for panel installation. The standard configuration is a push-in connector, and a 1/8” NPT male thread connector can also be selected. With overpressure safety protection function, as long as the pressure is lower than the withstand voltage value, the instrument will not be damaged. Its front and rear panels are removable for easy access and maintenance.
The differential pressure gauge adopts a casing made of glass fiber reinforced plastic, and the disk is made of plexiglass, which makes it durable and can withstand higher pressures. It has 5% accuracy and low price, especially suitable for various equipment manufactured by OEM, such as fume hoods, medical ventilators, air sampling machines, laminar flow hoods, air handlers, etc. Minihelic® II differential pressure gauges* are suitable for applications that do not require the high accuracy, sensitivity and small differential pressure measurement of Magnehelic& differential pressure gauges.
|
Service: Air and compatible gases.
Housing: Glass filled nylon; acrylic lens.
Wetted Materials: Consult factory.
Accuracy: ±5% of FS at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight: 6 oz (170.1g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.
FEATURES
- Removable lens and rear-housing provides easy, cost-effective servicing
- Accuracy and value provides an excellent solution for OEM and user applications
- Durable housing materials make it well-suited for rough environments and total high pressure
