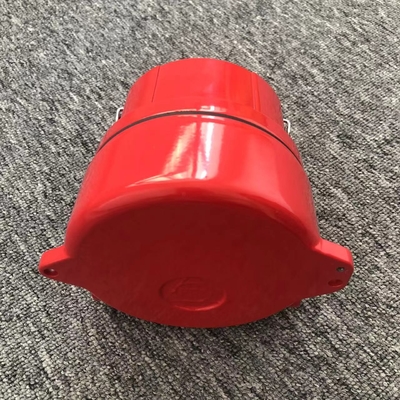

100% New Honeywell FS24X Multispectral Tri-frequency Infrared Flame Detector FS24X-211-22-1

Product Overview: The FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR™, WideBand 4.3 micron IR™, and Visible detection technology, the FS24X is a quantum leap in flame detection. Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm rejection. The WideBand IR™ Infrared technology using high-speed solid-state Quantum sensors allows detection of all types of fires, hydrocarbon and non-hydrocarbon, in all weather conditions. If the detector’s signal is blocked by ordinary window glass, the patented WideBand IR sensors will still alarm to the fire but at a reduced sensitivity and slower response time. Dual microprocessors provide a high level of fail-safe operation combined with fast and reliable performance. The Master Microprocessor performs high-speed digital sampling and signal-processing calculations: while the slave microprocessor handles various sensor data, performs communications, self-diagnostics and provides interface versatility: and additional memory for storing Event Log and FirePic™ data. The FSX family of detectors feature our patented* FirePic data storage and information retrieval facility. FirePic™ records pre-fire data, which can be recovered from the Detector’s non-volatile flash memory for post fire analysis and postulation of the fire cause. Additionally, unique Real-Time Graphing (RTG™) allows viewing of the data that the Detector actually sees. A combination of outputs makes the FS24X a truly versatile detector for today’s demanding industrial requirements. The FS24X Flame Detector has a detection range greater than 200 feet (Very High Sensitivity setting) for the detection of a one square-foot Heptane reference fire and has a cone of vision far greater in volumetric coverage than any other Multi-Spectrum IR Detector. This means fewer detectors can be used as compared to other manufacturers’ detectors. Additional Features and Benefits: Features:

• Patented* WideBand IR™ Technology
• Patented* Electronic Frequency Analysis™
• Visible Sensor for optimum false alarm rejection
• Selectable detection sensitivities
• Field-of-View: 110° full 100% cone-of-vision (90° full 100% cone-of-vision model also available)
• Dual microprocessors for reliable performance
• Real-time clock for accurate time dating of events
• FirePic™ — pre-fire event data storage
• Event log with date and time stamp
• RS-485 ModBus communication
• Non-Isolated 4-20 mA Analog output (sink or source)
• Alarm, Fault and Fire Verification relays
• Automatic optical path and electronic self-test
• Widest operating temperature range
• Patented* Electronics Module for components protection with easy plug-in terminations and field installation
• Two ¾” NPT OR 25mm conduit entries
• Low power consumption
• High RFI and EMI immunity
• FM, ATEX, CE mark approvals
• Meets SIL 2 requirements

Benefits:

• Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
• User selectable outputs
• Optimal false alarm rejection for all environmental conditions
• Minimal maintenance for trouble-free operation
• PC software and Interface Module (FSIM) for fault diagnostics, real-time graphics (RTGs), and downloading of FirePics™ and event log
• Suitable for a wide variety of applications
• Easy electronics module replacement
• Test lamps for manual testing.

Features & Benefits:

• Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
• User selection outputs
• Optimal false alarm rejection

  Brand	Honeywell
  Color	red
  warranty	1 year
