Pneumatic Valve Actuators Intelligent Positioner SRD998 SRD991 SRD960

Foxboro Eckardt Intelligent Positioner SRD998 SRD991 SRD960 For Pneumatic Valve Actuators With Hart - Dp Flow

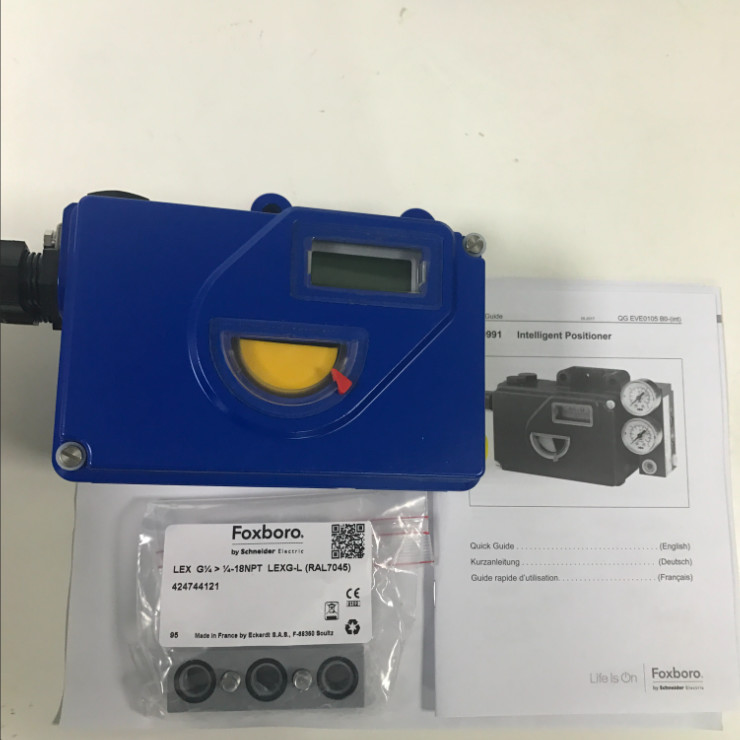

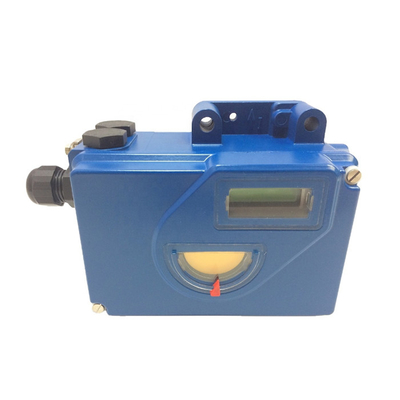

The intelligent positioner SRD991 is designed to operate pneumatic valve actuators and can be operated from control systems (e.g. the Foxboro I/A Series System), controllers or PC-based configuration- and operational tools such as PC20 / IFDC or PC50 (FDT Software). The positioner is available with different communication protocols. The multi-lingual full text graphical-LCD in connection with the 3 push buttons allows a comfortable and easy local configuration and operation as well as the display of valve specific data, and status- and diagnostic messages.

DEVICE FEATURES

Intelligent

• Auto-start with self-calibration

• Self diagnostics, status- and diagnostic messages

• Easy operation with three keys

• Multi-Lingual full text graphical LCD, or LEDs

  with communication

  • HART, FOUNDATION Fieldbus H1, PROFIBUS-PA, FoxCom

  • Configuration by means of local keys, handheld terminal (HART), PC or I/A Series system or with a infrared interface by means of IRCOM

  without communication

  • Input signal 4 to 20 mA

COMMON FEATURES

• Stroke 8 to 120 mm / 260 mm (0.3 to 4.7 in / 10.2 in)

• Angle range up to 95 °

• Supply air pressure up to 6 bar (90 psig), with spool valve up to 7 bar (105 psig)

• Single or double-acting

• Mounting on linear actuators according to NAMUR

  – IEC 534, Part 6     – VDI/VDE 3847

• Mounting on rotary actuators acc. to VDI/VDE 3845

• Protection class IP 65, NEMA 4X

• Explosion protection: Intrinsic safety according to ATEX and FM/CSA

SPECIFICATION
