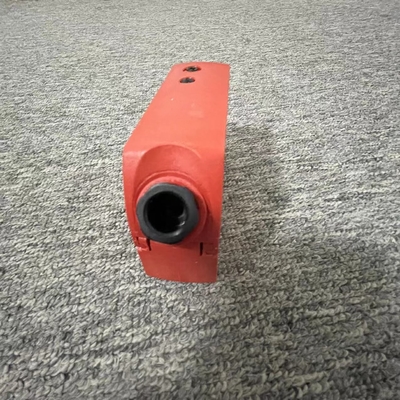

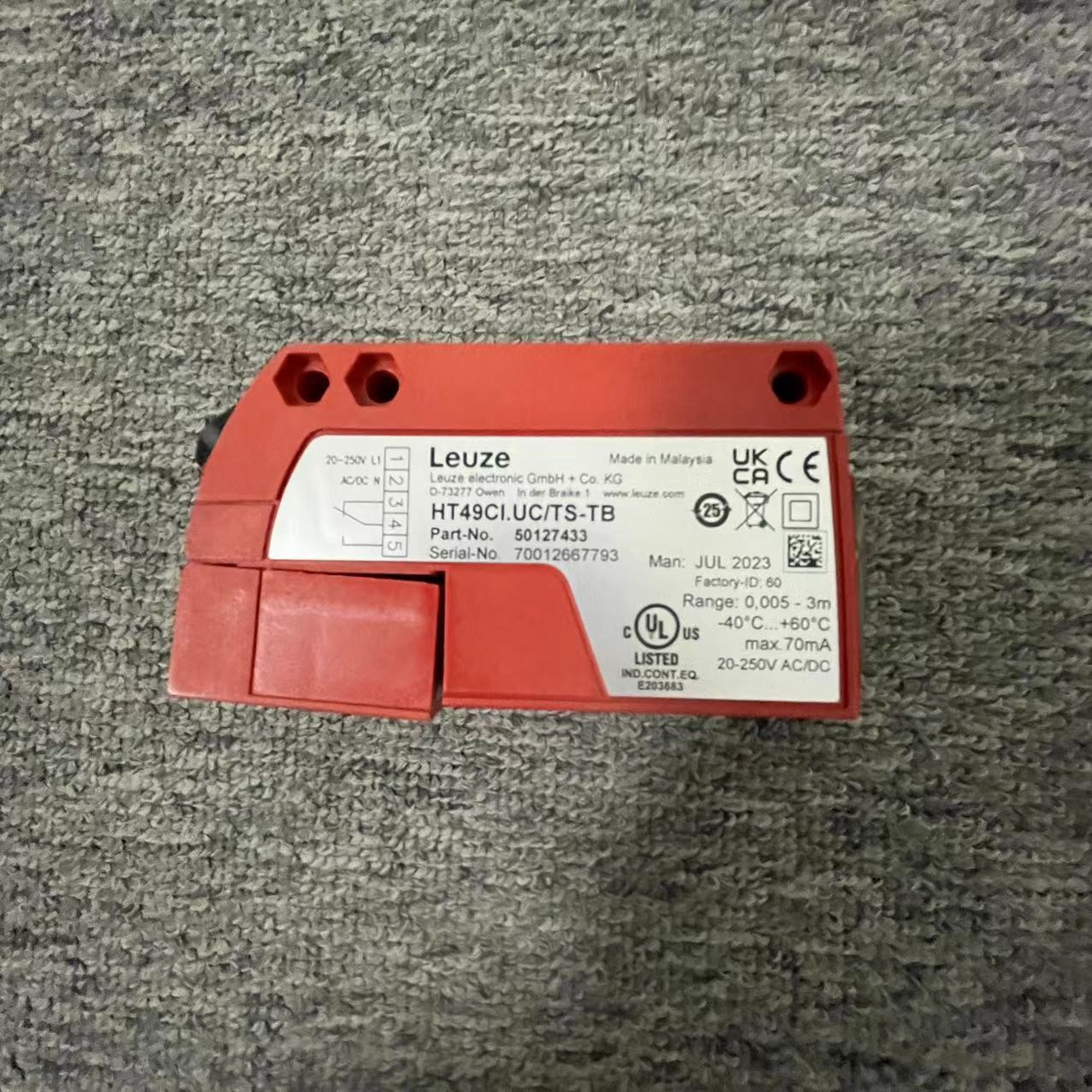

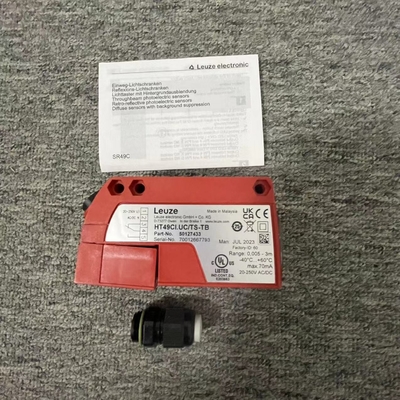

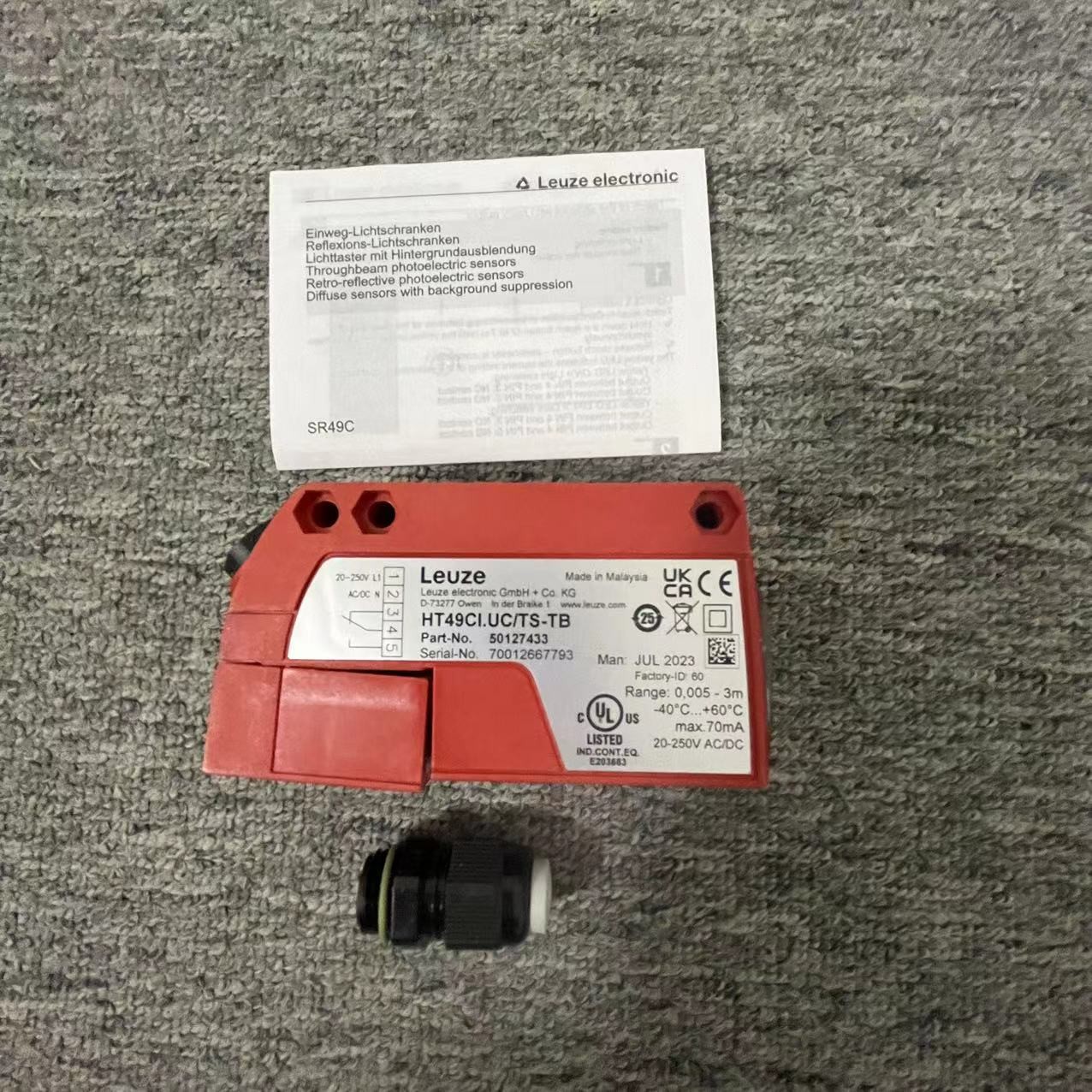

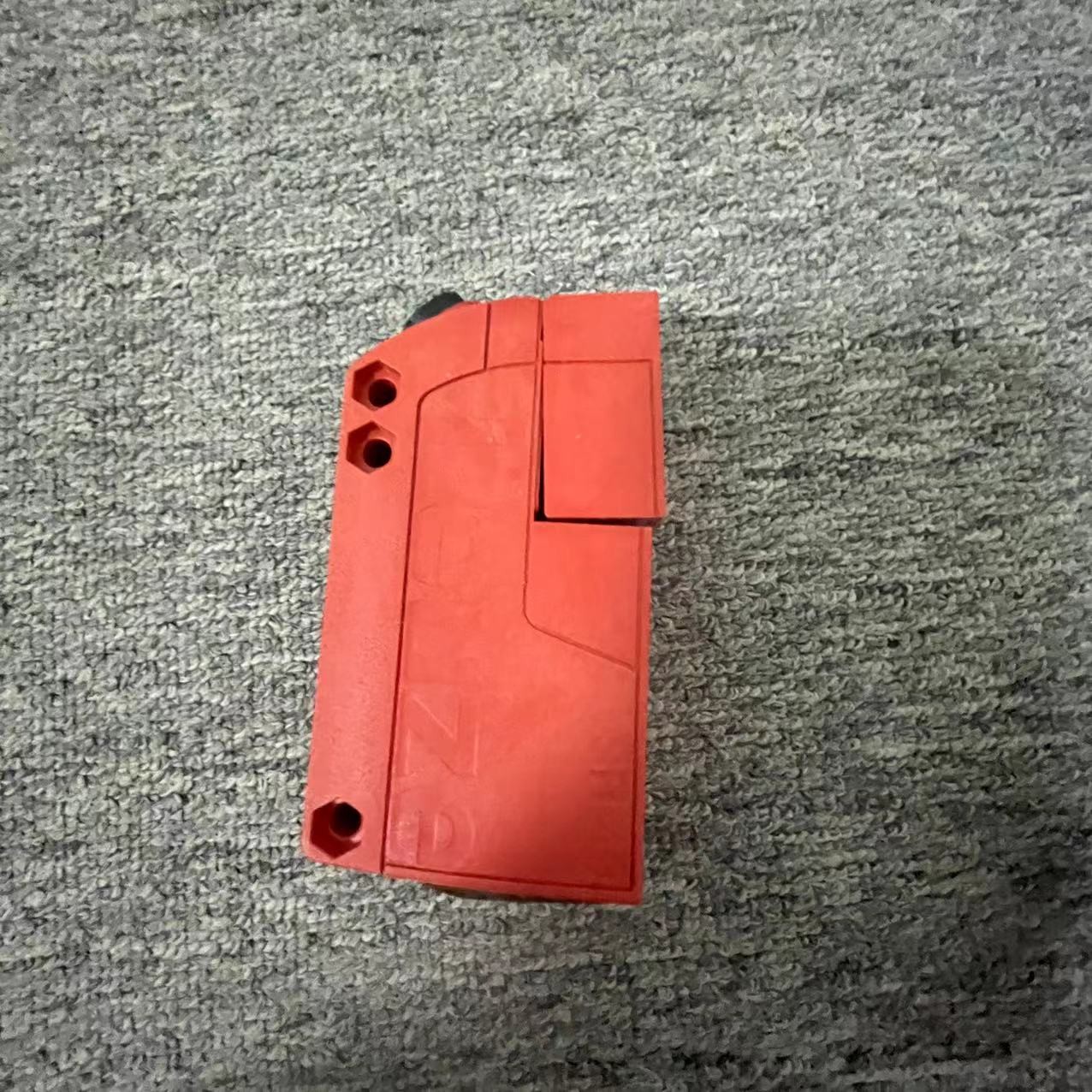

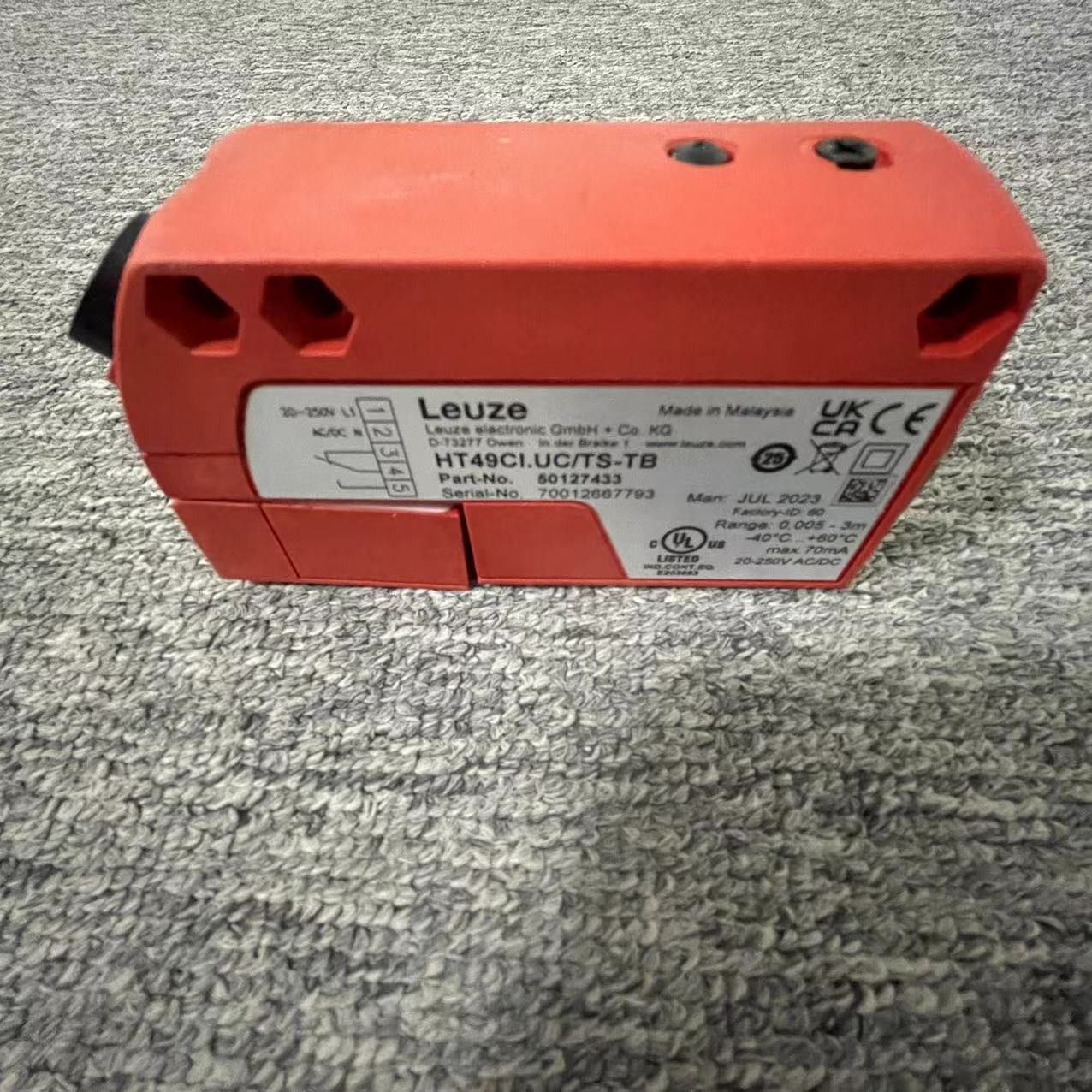

Original Leuze HT49CI.UC/TS-TB 50127433 Photoelectric Sensor have stock
| Place of Origin | - |
|---|---|
| Brand Name | Leuze |
| Certification | CE |
| Model Number | HT49CI.UC/TS-TB |
| Minimum Order Quantity | 1 |
| Price | USD$20/pc |
| Packaging Details | Carton |
| Delivery Time | 1-2weeks |
| Payment Terms | L/C, D/A, T/T, Western Union, MoneyGram, D/P |
| Supply Ability | 500 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Light Source | LED, Infrared | Wavelength | 860 Nm |
|---|---|---|---|
| LED Group | Exempt Group (in Acc. With EN 62471) | Supply Voltage UB | 20 ... 250 V, AC/DC |
| Power Consumption (with AC) | 1.5 V·A | Switching Element | Relay, NC |
| Switching Frequency | 25 Hz | Readiness Delay | 300 Ms |
Product Description
Series: 49C
Operating principle: Scanning principle with background suppression
Operating range, white 90%: 0.005 - 3 m
Operating range, gray 18%: 0.02 - 2 m
Operating range, black 6%: 0.05 - 1.5 m
Operating range limit: 0.005 - 3 m
Light source: LED, Infrared
Switching frequency: 150 Hz
Response time: 3.3 ms
Protective circuit: Interference blanking, Transient protection
Supply voltage: 20 - 250 V, AC/DC
Number of digital switching outputs: 2
Output 1 switching element: Relay, NC
Output 1 switching principle: Light/dark reversible
Output 2 switching element: Relay, NO
Output 2 switching principle: Light/dark reversible
Type of connection: Terminal
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Via optional mounting device
Operational controls: Multiturn potentiometer, Teach button
Degree of protection: IP 67, IP 69K
Diffuse sensor with background suppression, red light and infrared design, clamp connection.
Large scanning range
High function reserve
Exact object detection, independent of surface structure (minimal black-white error)
