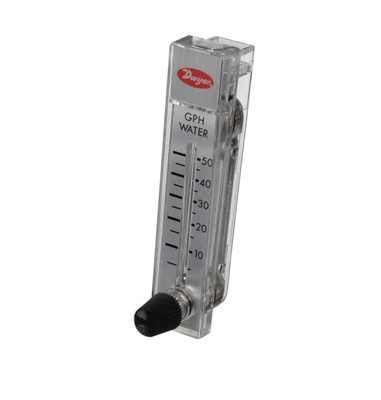

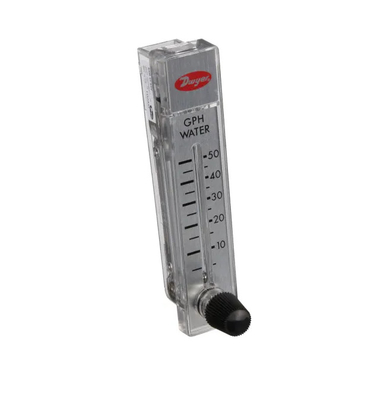

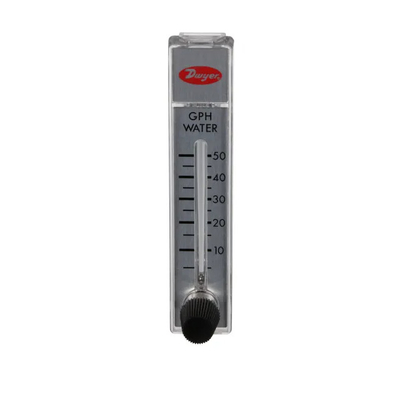

Original Dwyer RMA-45-SSV Flow Meter 5-50 GPH Water Stainless Valve
| Place of Origin | usa |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | RMA-45-SSV |
| Minimum Order Quantity | 1 |
| Price | USD$60/PC |
| Packaging Details | Original |
| Delivery Time | 4-6 weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service | Compatible Gases And Liquids | Accuracy | RMA: 4%; RMB: 3%; RMC: 2% Of FS |
|---|---|---|---|
| Pressure Range | 5-50 GPH Psi | Series | RMA Series |
| Weight | 0.5kg | Pressure Limit | 100 Psi |
| Wetted Materials | Body: Polycarbonate; O-ring: Neoprene And Buna-N; Metal Parts: SS; Float: SS, Black Glass, Aluminum, K Monel, Tungsten Carbide Depending On Range. | ||
| Highlight | Stainless Valve Flow Meter,Original Dwyer Flow Meter,5-50 GPH Flow Meter |
||
Product Description
Dwyer RMA-45-SSV Flow Meter 5-50 GPH Water Stainless Valve
Product application
1. Medical equipment
2. Air samplers
3. Gas analyzers
4. Pollution monitors
5. Chemical injectors
6. Cabinet purging
Features
- Easy to read design - The direct reading scales eliminate troublesome conversions
- Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore
- The float is highly visible against a white background
- Construction assures accuracy - All Rate-Master flowmeter bodies are injection moulded of tough, clear, shatter-proof polycarbonate plastic around a precision tapered pin
- The result is accurate and repeatable readings

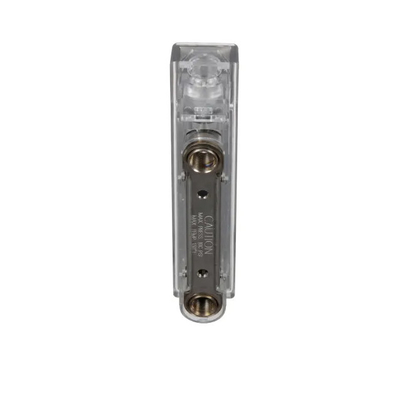

- The single piece plastic body is mounted to a stainless steel back bone into which pipe thread inserts are welded to absorb piping torque
- Precision metering valves of brass or stainless steel (specify BV or SSV on order) are available as an optional extra and permit precise flow adjustments
- For vacuum applications, Model RMA units are available with top mounted valves (specify TMV in the model number)
- Installation is simple - The Rate-Master flowmeter can be neatly through-panel mounted to keep flow tube centres in the same plane as the panel surface or surface mounted on the panel by means of tapped holes in the backbone
- When through-panel mounted, the bezel automatically positions the instrument at the correct depth in the panel cutout
- Surface mounted units can also be held in place by the piping
- All mounting hardware plus installation and operating instructions are included
- Easy-to-Interchange bodies - Within a given Series Rate-Master flowmeter bodies can be instantly interchanged
- Simply "unplug" the body from backbone and replace it with another
- O-rings provide a tight seal on inlet and outlet
- Piping remains undisturbed
- Interchangeability is useful where different scale ranges are sometimes required at the same location in the laboratory or plant
- Cleaning is easy - To release the plastic flowmeter body from the stainless steel backbone, just remove four screws
- Pipe thread flow connections remain undisturbed
- Remove the slide cover and the plug ball stop, clean the flow tube with soap and water and reassemble
