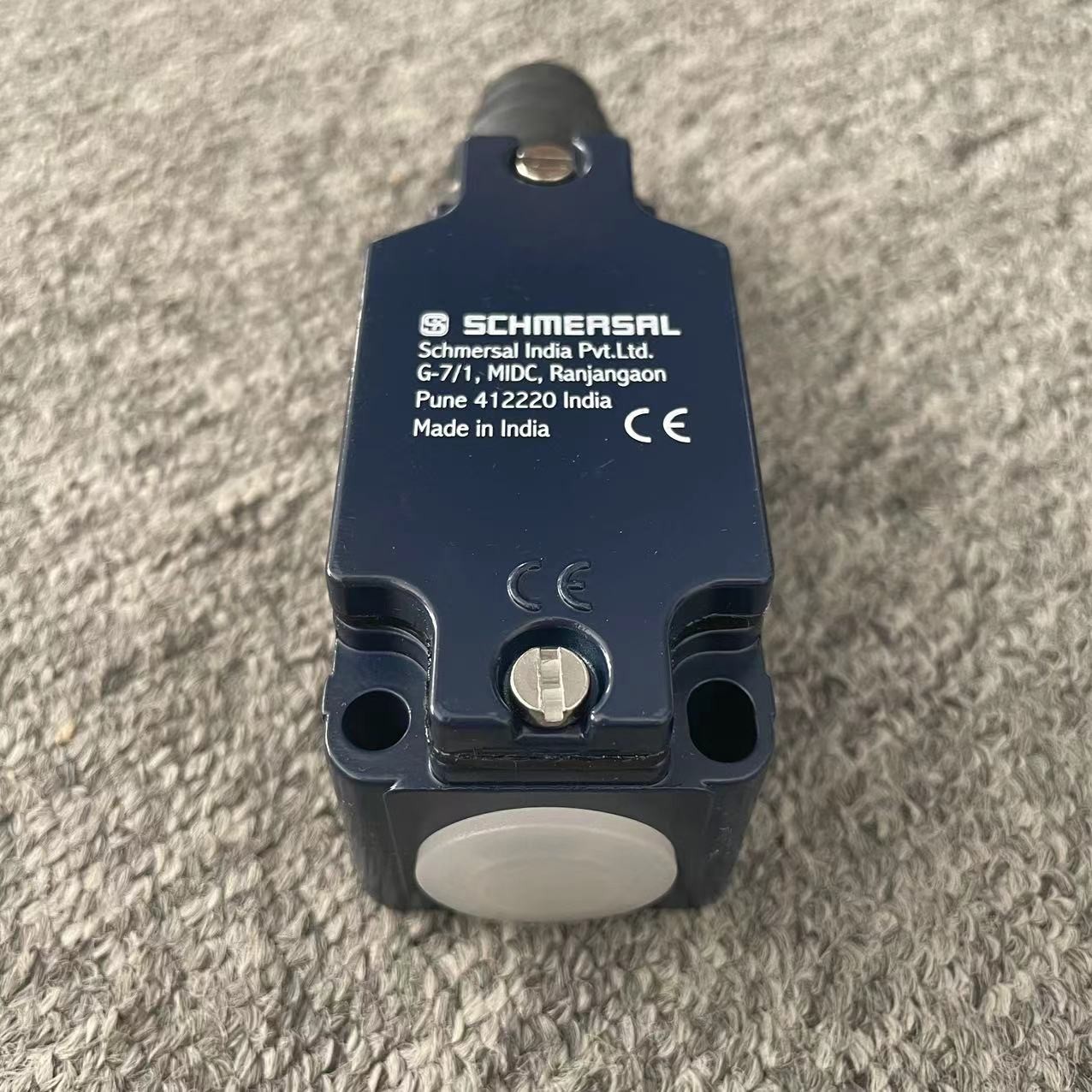

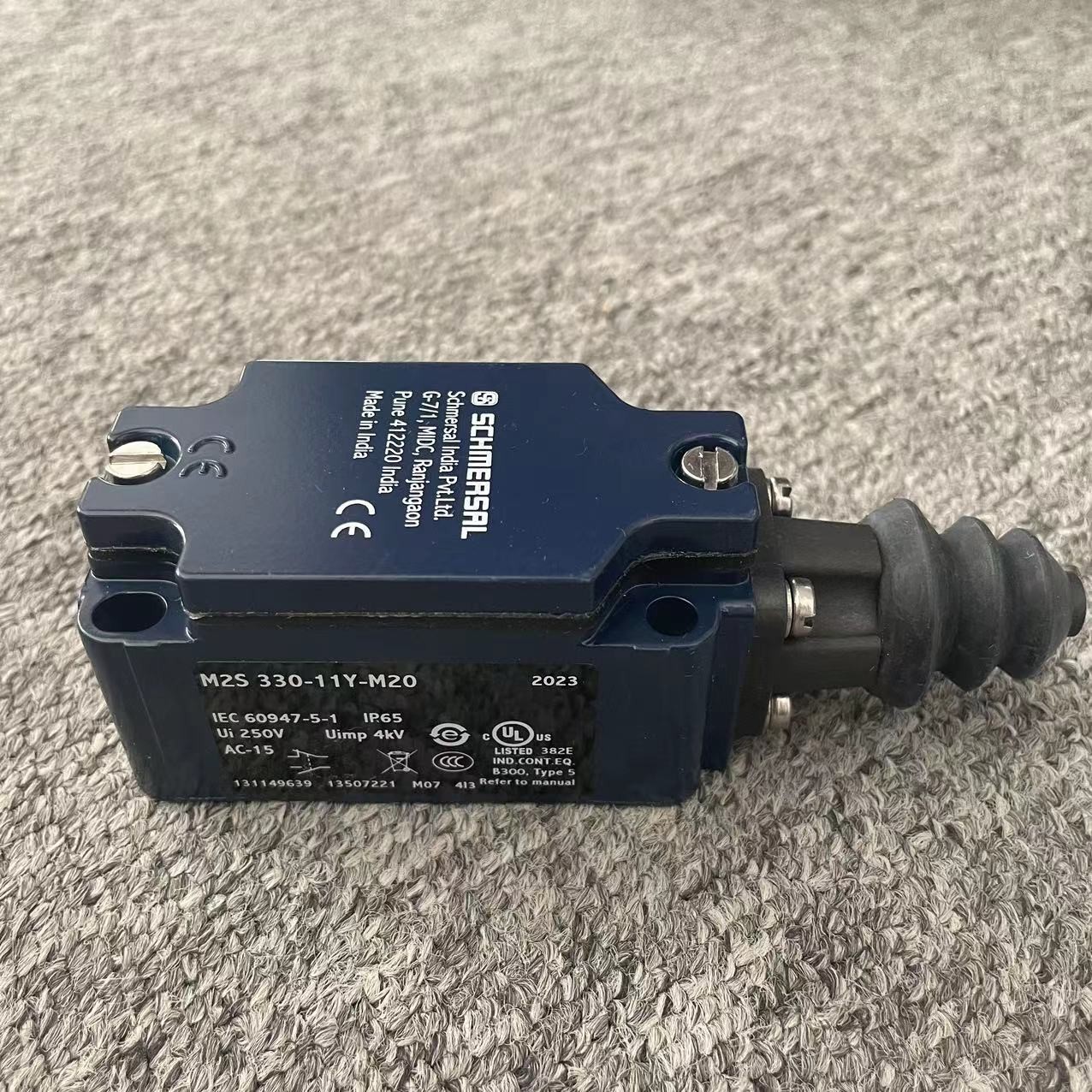

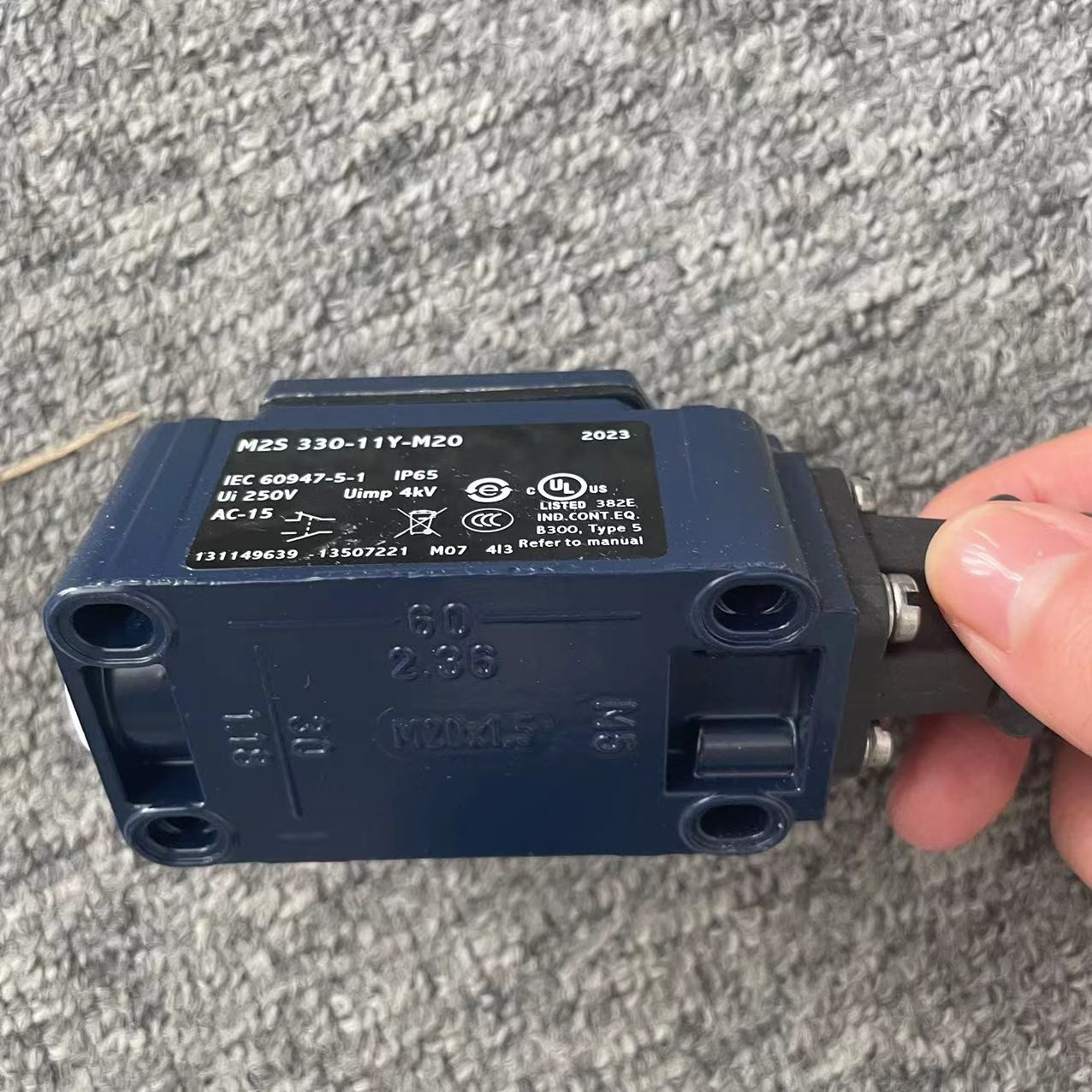

100% Original Schmersal Limit Switch M2S 330-11Y-M20 With Best Price
| Place of Origin | - |
|---|---|
| Brand Name | Schmersal |
| Certification | - |
| Model Number | M2S 330-11Y-M20 |
| Minimum Order Quantity | 1 |
| Price | USD$15/PC |
| Packaging Details | Original |
| Delivery Time | 1WEEK |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Schmersal | Type | M2S 330-11Y-M20 |
|---|---|---|---|
| Color | Black | Warranty | 1 Year |
| Material | Pua | ||
| Highlight | Original Schmersal Limit Switch,M2S 330-11Y-M20 Limit Switch |
||
Product Description
- with bellows to protect against heavy soiling
- Metal enclosure
- Long life
- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
Ordering data
Product type description M2S 330-11Y-M20 Article number (order number) 131149639 EAN (European Article Number) 8905236106842 eCl@ss number, version 12.0 27-27-06-01 eCl@ss number, version 11.0 27-27-06-01 eCl@ss number, version 9.0 27-27-06-01 ETIM number, version 7.0 EC000030 ETIM number, version 6.0 EC000030 General data
Standards EN IEC 60947-5-1 Working principle mechanical Slide form Sphere Housing material Light-alloy diecast, paint finish Housing coating material painted Gross weight 225 g Safety classification - Safety outputs
B10D Normally-closed contact (NC) 20,000,000 Operations Mechanical data
Actuating element Plunger Actuating force, minimum 45 N Actuating speed, minimum 1 mm/min Mechanical data - Connection technique
Wire cross-section 13 AWG Mechanical data - Dimensions
Length of sensor 40 mm Width of sensor 40 mm Height of sensor 120.5 mm Diameter of the Plunger 8.5 mm Ambient conditions
Degree of protection IP65 Ambient temperature -30 ... +90 °C Restistance to shock 50 g / 6 ms Ambient conditions - Insulation values
Thermal test current 6A Utilisation category AC-15 230 VAC Utilisation category AC-15 2.5
