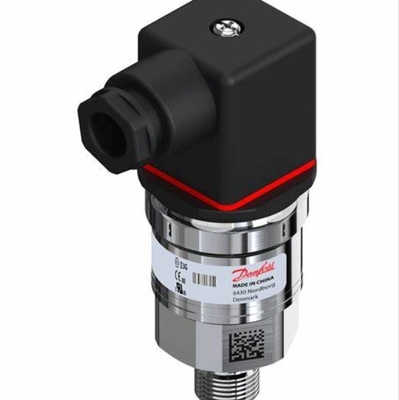

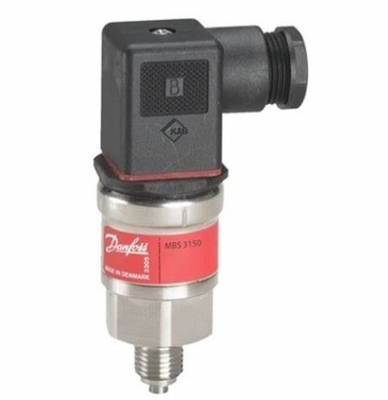

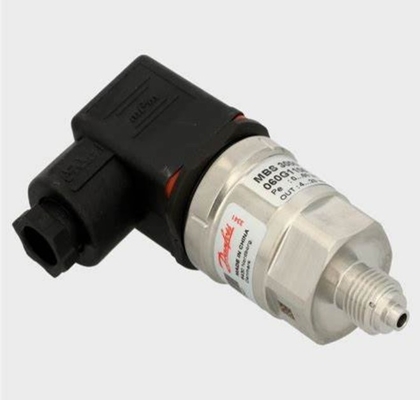

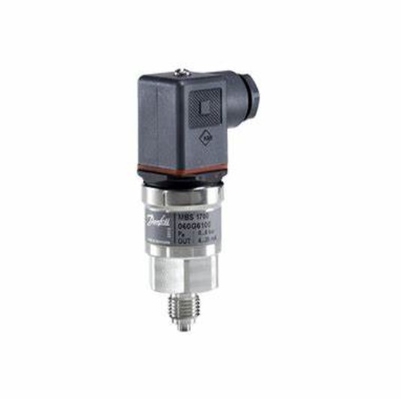

Danfoss Pressure transmitter, MBS 3350, 0.00 bar - 16.00 bar, 0.00 psi - 232.06 psi 060G1853
| Place of Origin | china |
|---|---|
| Brand Name | Danfoss |
| Certification | CE |
| Model Number | MBS 3350 |
| Minimum Order Quantity | 1 |
| Price | USD$220 |
| Packaging Details | carton |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| + Supply | Pin 1 | Approval | ATEX |
|---|---|---|---|
| Approval Comments | ATEX Ex Ec IIA T4 Gc | Enclosure Rating IP | IP65 |
Product Description
Product details
| Gross weight | 0.178 Kg |
| Net weight | 0.157 Kg |
| Volume | 0.42 Liter |
| EAN | 5702423159031 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 1 % |
| Accuracy, typical [±FS%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 212 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| China RoHS compliance | Yes |
| Compensated temp. range [°C] [max] | 100 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 212 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| EEE category | 5 small equipment (any external dimension |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE | Yes |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423159031 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 125 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 257 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 50 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-G |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 16 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 232.06 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | Yes |
| Quantity per packing format | 14 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | MBS 3350-2211-A6FB04-4 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 9 V |
| Supply voltage [V] DC [min] | 9 V |
| Type | MBS 3350 |
| UK RoHS compliance | Yes |
