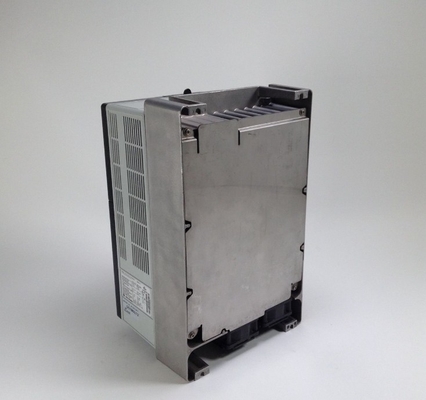

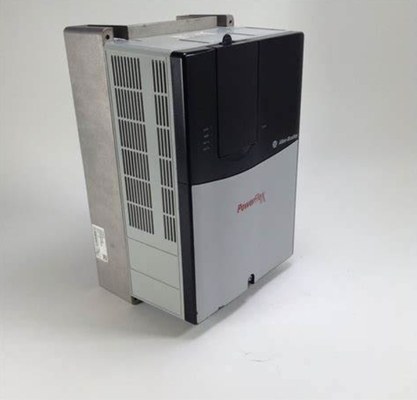

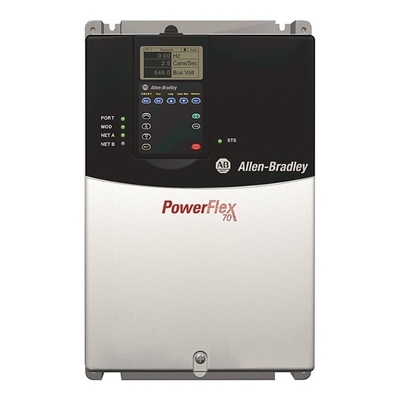

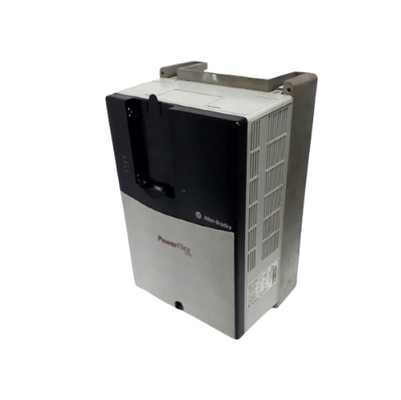

Allen-Bradley 20AC030A0AYNANC0 PowerFlex70 AC Drive 400 V AC 3 Phase 30 A 15 KW Normal 11 KW
| Place of Origin | china |
|---|---|
| Brand Name | Allen-Bradley |
| Certification | CE |
| Model Number | 20AC030A0AYNANC0 |
| Minimum Order Quantity | 1 |
| Price | USD$1863 |
| Packaging Details | carton |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Degree Of Protection (IP) | IP20 | Number Of Analogue Outputs | 1 |
|---|---|---|---|
| Mains Voltage | 400 V | Integrated Breaking Resistance | No |
| Highlight | 3 Phase PowerFlex70 AC Drive,11 kW PowerFlex70 AC Drive,400 V AC PowerFlex70 AC Drive |
||
Product Description
Technical Specifications
Mechanical
| Degree of protection (IP) | IP20 |
|---|---|
| Shock | 15 G peak for 11 ms duration (±1.0 ms) |
| Vibration | 0.152 mm (0.006 inch) displacement, 1 G peak |
Electrical
| Number of analogue outputs | 1 |
|---|---|
| Mains voltage | 400 V |
| Integrated breaking resistance | No |
| Internal dynamic brake resistors | 62 Ohm |
| Brake IGBT | Brake IGBT installed |
| Bus undervoltage output shutoff | 305V DC @ 380/400V |
| Bus undervoltage fault level | 300V DC @ 380/400V |
| Internal communication module | No communication module |
| AC input undervoltage trip | 233V AC @ 380/400V |
| Bus voltage, nom | 540V DC @ 380/400V |
| Bus overvoltage trip | 810V DC @ 380/400V |
| Circuit breaker current rating, max | 120 A @ 400V AC, 3-phase |
| Motor circuit protector current rating, max | 50 A @ 400V AC, 3-phase |
| Output current rating, continuous | 30 A @ 400V AC, 3-phase |
| Output current rating, 1 min | 33 A @ 400V AC, 3-phase |
| Output current rating, 3 sec | 45 A @ 400V AC, 3-phase |
| Logic control ride-thru | 0.5 seconds minimum, 2 seconds typical |
| Brake resistor | Without drive mounted brake resistor |
| Input current rating | 30.3 A @ 400V AC, 3-phase |
| Documentation | Manual |
| Carrier frequency | Standard control: 2, 3, 4, 5, 6, 7, 8, 9, and 10 kHz, vector control: 2, 4, 8, and 12 kHz, drive rating based on 4 kHz |
| Encoder quadrature | 90° ±27° |
| AC input overvoltage trip | 475V AC @ 380/400V |
| Input power rating | 21 kVA @ 400V AC, 3-phase |
| Dual element time delay fuse current rating | 40...60 A @ 400V AC, 3-phase |
| Non-time delay fuse current rating | 40...120 A @ 400V AC, 3-phase |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Drive to motor power ratio, max | Recommended not greater than 2:1 ratio |
| Stop modes | Multiple programmable stop modes including — Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve |
| Frequency accuracy | Digital input: within ±0.01% of set output frequency |
| Acceleration/deceleration | Two independently programmable accel and decel times. Each time can be programmed from 0...3600 seconds in 0.1 second increments |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Number of analogue inputs | 2 |
| Internal watts loss | 42.9 W @ 400V, 15 Hp normal duty |
| Motor voltage, nom | 460V @ 380...480V drive rating, 480V nominal line voltage |
| Supporting protocol for DeviceNet | Yes |
| Human interface model | No HIM-blank plate |
| Application in industrial area permitted | Yes |
| External watts loss | 432.9 W @ 400V, 15 Hp normal duty |
| Total watts loss | 475.8 W @ 400V, 15 Hp normal duty |
| Supporting protocol for EtherNet/IP | Yes |
| Line voltage, nom | 480V @ 380...480V drive rating, 460V nominal motor voltage |
| Mains frequency | 50 Hz |
| Output frequency range | Standard control: 0...400 Hz, enhanced control: 0...500 Hz |
| Internal EMC filtering | Second environment filter per CE EMC directive (89/336/EEC) |
| Feedback option | No feedback |
| Drive full power range | 460...528V @ 380...480V drive rating, 460V nominal motor voltage |
| Drive operating range | 342...528V @ 380...480V drive rating, 460V nominal motor voltage |
| Torque regulation | Without feedback +/-10%, with feedback +/-5% |
| Enclosure type | Panel mount-IP20/NEMA Type 1 |
| Output current rating | 30 amps, 15 kW normal duty, 11 kW heavy duty, frame D |
| Cooling fan operation | Frames B, D, and E: fan operates when power is applied and in run condition |
| Control options | Enhanced control with 24V I/O |
| Drive overcurrent trip | Software current limit: 20...160% of rated current |
| Efficiency | 97.5% at rated amps, nominal line volts |
| Encoder supply | 5V/12V configurable ±5% |
| Speed control-speed regulation | Without feedback (Vector Control mode): 0.1% of base speed across 120:1 speed range, 120:1 operating range, 30 rad/sec bandwidth |
| Current limit capability | Proactive current limit programmable from 20...160% of rated output current, Independently programmable proportional and integral gain |
| Selectable motor control | Sensorless vector with full tuning. Standards V/Hz with full custom capability and vector control |
| Frequency control-speed regulation | With slip compensation (Volts per Hertz mode): 0.5% of base speed across 40:1 speed range, 40:1 operating range, 10 rad/sec bandwidth |
| Input phases | Three-phase input provides full rating for all drives. single-phase operation provides 50% of rated current |
| Control method | Sine coded PWM with programmable carrier frequency. Ratings apply to all drives |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of phases output | 3 |
| Number of phases input | 3 |
| Relative symmetric net voltage tolerance | 10 % |
| With control element | Yes |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for CAN | Yes |
| Supporting protocol for Modbus | Yes |
| Application in domestic- and commercial area permitted | Yes |
| Motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Input frequency tolerance | 47 Hz |
| Encoder duty cycle | 50% ±10% |
| Voltage tolerance | -10 % |
| Displacement power factor (all drives) | 0.98 across speed range |
| Short circuit rating, max | 200000 amps symmetrical |
| Output voltage range | 0 to rated motor voltage |
| Encoder type | Incremental, dual channel |
| Power ride-thru | 15 milliseconds at full load |
| Short circuit trip | Phase-to-phase on drive output |
| Ground fault trip | Phase-to-ground on drive output |
| Drive to motor power ratio, min | Recommended not less than 1:2 ratio |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Short circuit current rating, max | Maximum short circuit current rating to match specified fuse/circuit breaker capability |
| Intermittent overload | 110% overload capability for up to 1 minute, 150% overload capability for up to 3 seconds |
Construction
| Height, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 350 mm |
|---|---|
| Depth, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 210.7 mm |
| Width, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 219.9 mm |
| Weight, approx | IP66, NEMA/UL Type 4X/12 for indoor use: 9.13 kg |
Environmental
| Altitude | 1000 m (3300 ft.) maximum without derating |
|---|---|
| Degree of protection (NEMA) | 1 |
| Surrounding air temperature, max | IP20, NEMA/UL Type 1: 0...50 °C (32...122 °F) without derating |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust, If the drive is not going to be installed immediately, store the drive where it is not exposed to a corrosive atmosphere |
| Storage temperature | -40 °C |
| Relative humidity | 5...95% noncondensing |
| Pollution degree 1 according to EN 61800-5-1 | No pollution occurs, only dry non-conductive pollution occurs, and has no influence |
| Pollution degree 4 according to EN 61800-5-1 | The pollution generates persistent conductivity caused, for example, by conductive dust, rain or snow |
| Pollution degree 3 according to EN 61800-5-1 | Conductive pollution occurs, dry non-conductive pollution occurs and becomes conductive due to condensation |
| Pollution degree 2 according to EN 61800-5-1 | Normally only non-conductive pollution occurs, Occasionally a temporary conductivity, caused by condensation is expected when the drive is out of operation |
| Surrounding environment pollution degree | All enclosures are acceptable for pollution degree 1 and 2, an enclosure that meets or exceeds IP54, NEMA/UL type 12, is required for pollution degree 3 and 4 |
