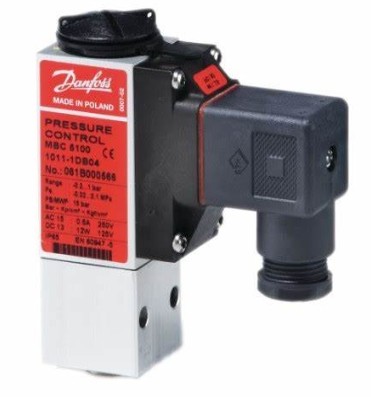

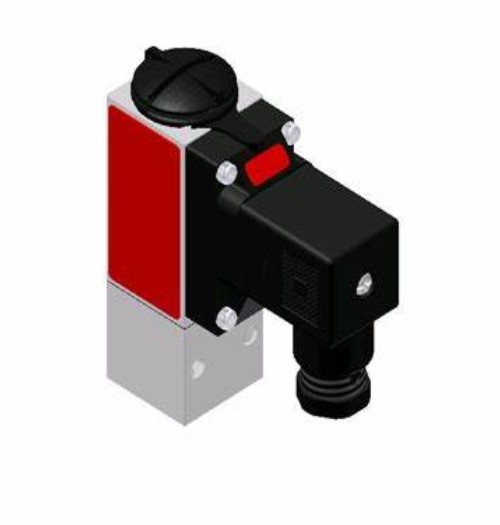

DANFOSS MBC 5100 061B100866 Controles Industriales MBC 5100 Pressure Switch M/32
| Place of Origin | china |
|---|---|
| Brand Name | DANFOSS |
| Certification | CE |
| Model Number | 061B100866 |
| Minimum Order Quantity | 1 |
| Price | USD$150 |
| Packaging Details | carton |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gross Weight | 0.294 Kg | Volume | 0.654 Liter |
|---|---|---|---|
| Specification Key | 2431-1CB04 | Type | MBC 5100 |
| Highlight | DANFOSS MBC 5100 Pressure switch,MBC 5100 Pressure switch,CONTROLES INDUSTRIALES MBC 5100 Pressure switch |
||
Product Description
Product details
| Gross weight | 0.294 Kg |
| Net weight | 0.24 Kg |
| Volume | 0.654 Liter |
| EAN | 5702423218653 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | 14 °F |
| Approval | ABS BV CCC CCS CE CMIM DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA |
| Burst pressure [bar] | 300 bar |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| In scope of WEEE and contain batteries | No |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 10 bar |
| Regulation range [bar] Pe [min] | 1 bar |
| Regulation range [MPa] Pe [max] | 1 MPa |
| Regulation range [MPa] Pe [min] | 0.1 MPa |
| Reset function | Auto |
| SCIP dossier no. | c9549e84-c103-45b0-86ec-6021ce3385c8 |
| Serviceable | No |
| Specification key | 2431-1CB04 |
| Type | MBC 5100 |
| UK RoHS compliance | Out of scope |
