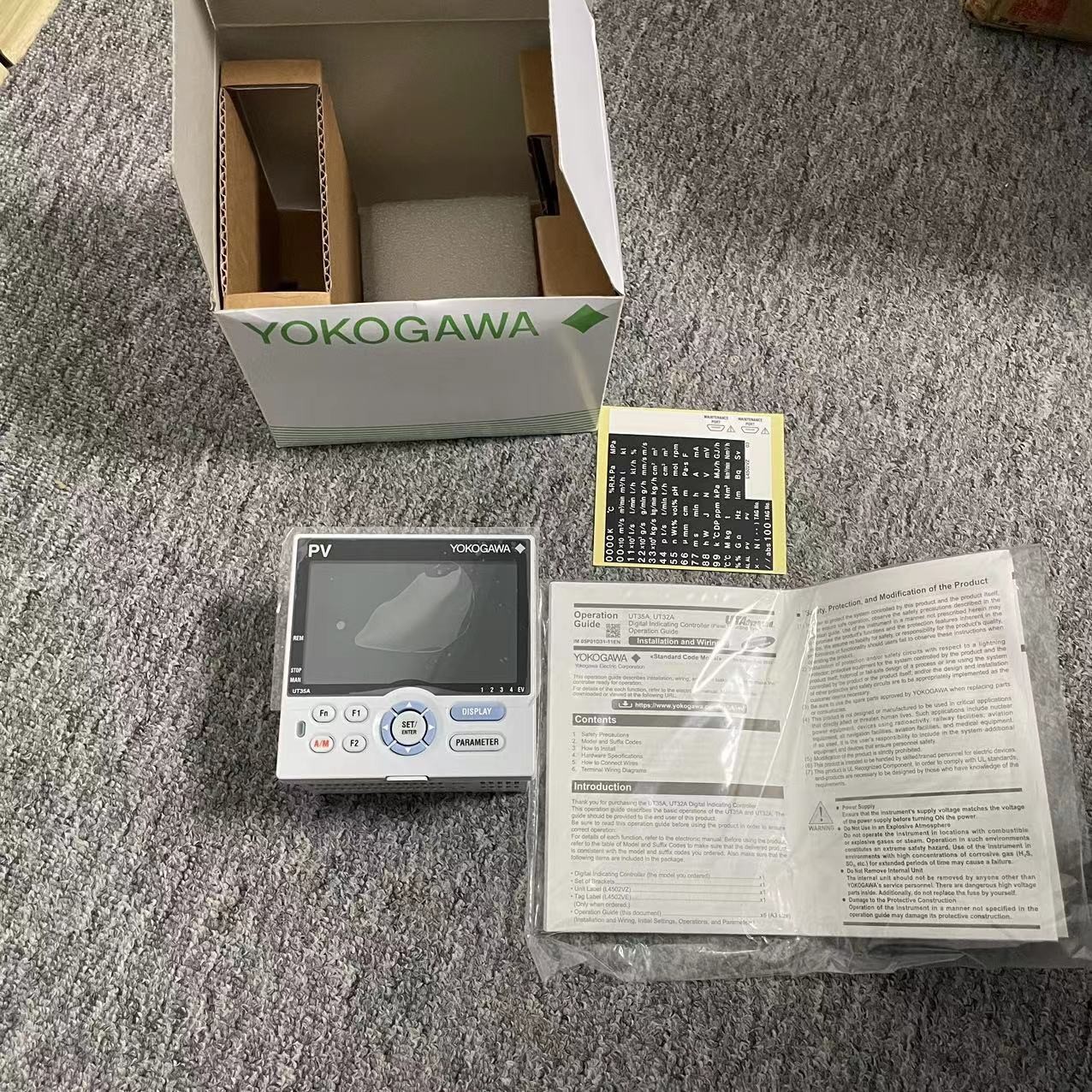

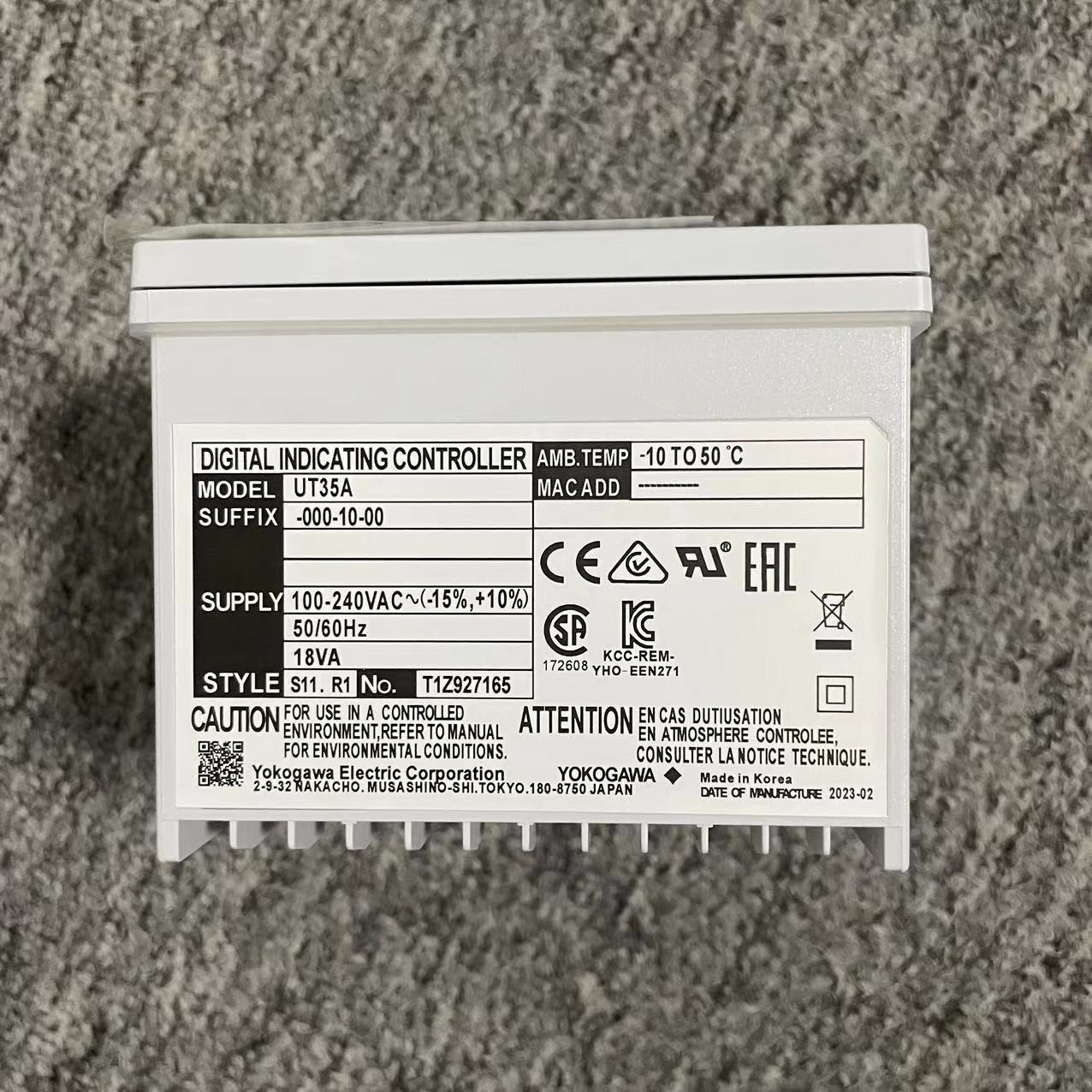

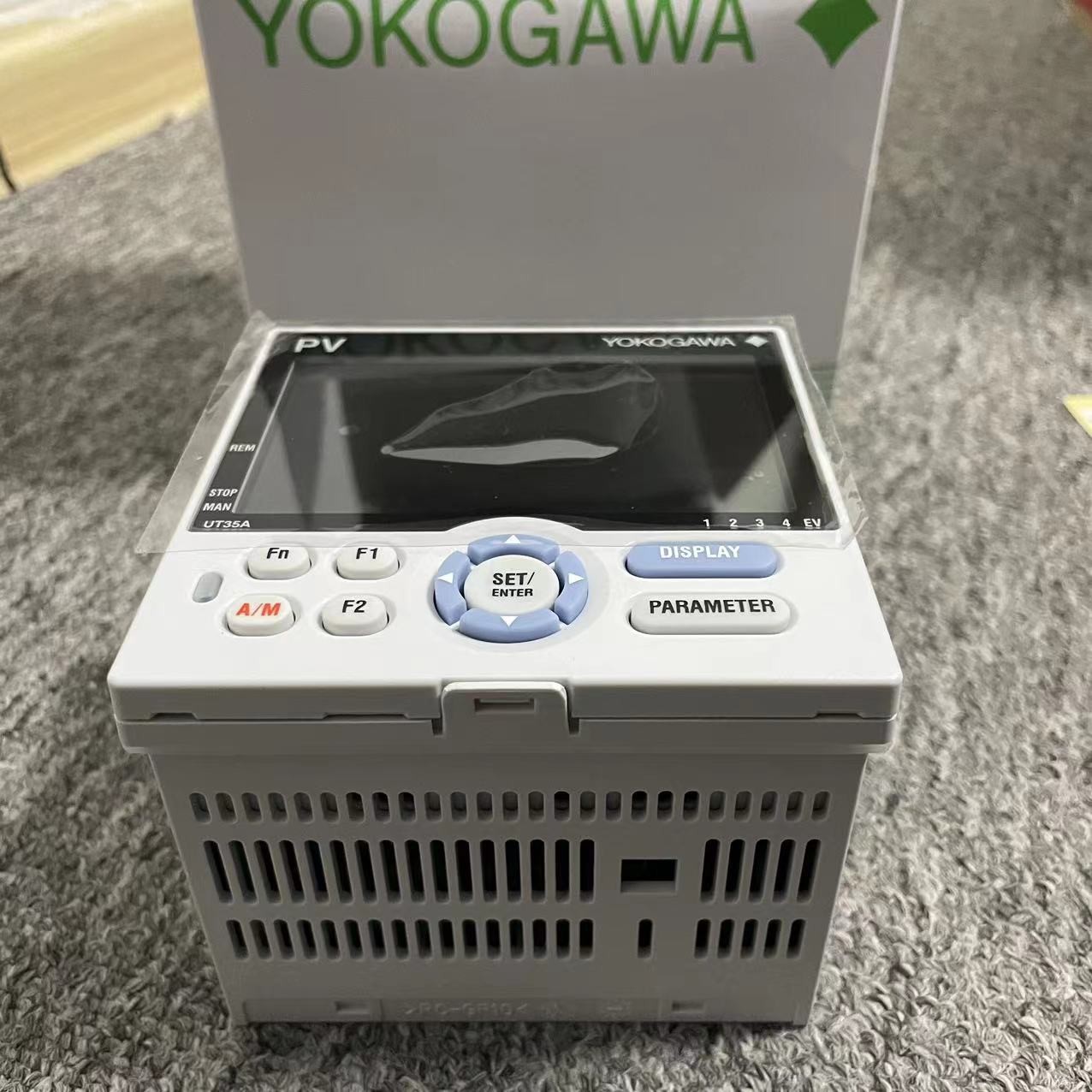

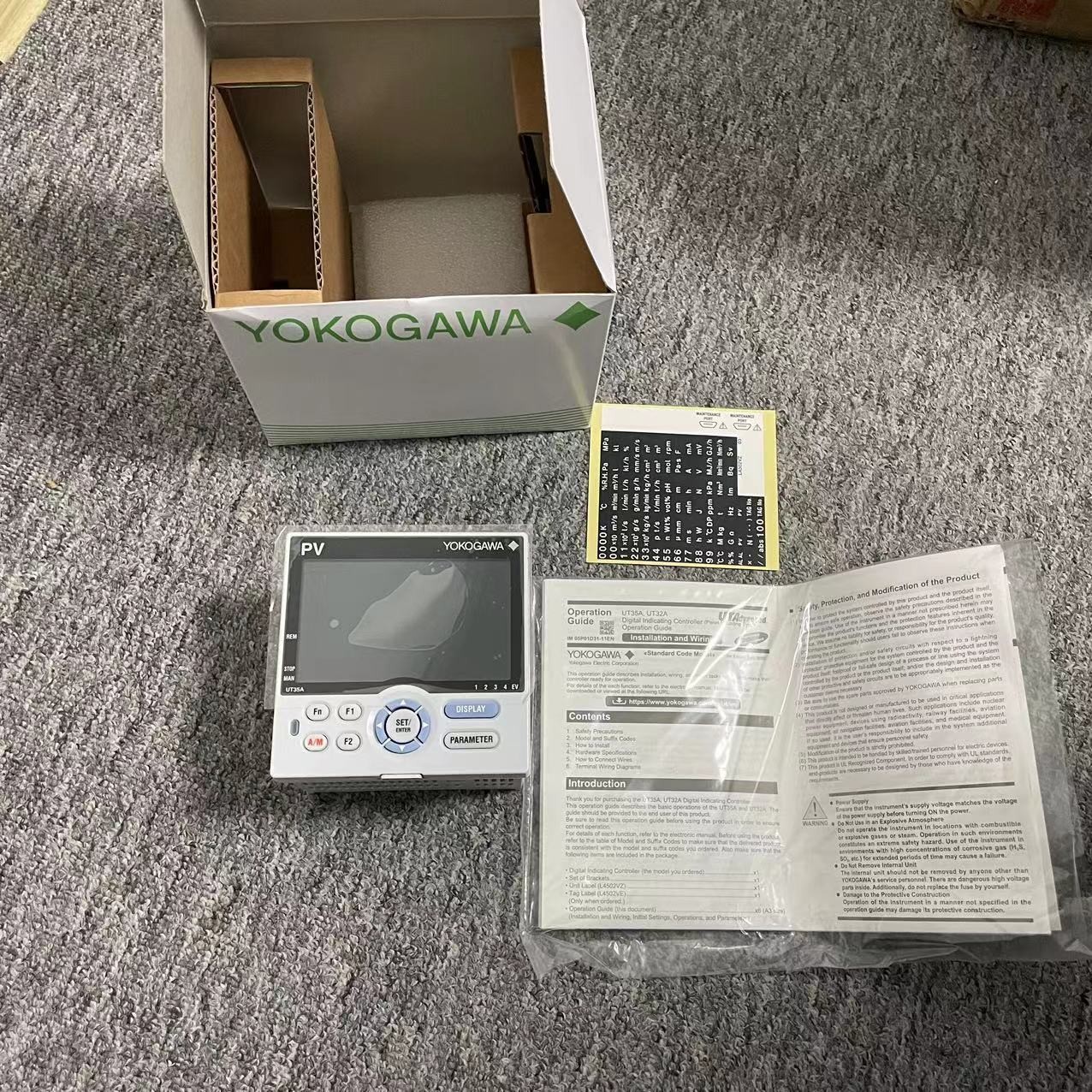

Original New UT35A-000-10-00 Temperature Digital Controller With Best Price

Networking

Communication Functions

A simple and easy network connection is provided!
A built-in function in the controller eliminates the need for a converter and makes wiring simple.

Modbus/TCP

Modbus TCP/IP, a protocol that allows the controller to connect to any Ethernet network and have the ability to exchange data with the computers or devices on that network.

• Allows control devices to be integrated into an application simply.

  Mass	Max 0.5 kg
  warrany	1 year
  Color	White



• Works with any Modbus TCP/IP compliant software.
• Support for Modbus function codes 03, 06, 08 & 16.
• Gateway function allows RS-485 Modbus devices to communicate via Ethernet.
• Reduced labor costs in wiring and setup of a communications network.
• Physical Layer: 10 BASE-T/100 BASE-TX
• Maximum number of connection: 2

Modbus/RTU

The data of UTAdvanced (slave units) can be displayed and saved on the DXAdvanced using the Modbus RTU function.

Open Network (PROFIBUS-DP, CC-Link, DeviceNet)

Embedded open networks will provide direct connection to PLC's.

• Reads data from UTAdvanced
• Writes parameter setting value to UTAdvanced

Example:

Peer to Peer

The use of the ladder sequence program makes it possible to exchange analog data and status data between communication-capable UTAdvanced.

Example: A UTAdvanced in which an input error occurs sends a signal to another UTAdvanced to enable that UTAdvanced switch to MAN operation, thus shifting the whole system into a safe mode. In such a case, the safety mechanism can be built into the UTAdvanced and is not required in the host system.

Coordinated Operation

In coordinated operation, a single UTAdvanced termperature controller is used as a master controller and multiple UTAdvanced or other UTAdvanced digital indicating controllers as slave controllers.

The slave controllers are operated in accordance with the actions of the master controller.

PC-Link

A protocol used for communicating with a general-purpose personal computer, or UTAdvanced series link module and serial communication module of FA-M3R (range-free controller).

Reliability

Dependable 3 year warranty*1

Backed by the high reliability and quality that Yokogawa has cultivated over many years.

RoHS/WEEE compliant

UTAdvanced is environmentally safe when disposing.

Dust-proof and drip-proof front panel (NEMA4*2 /IP66)

UTAdvanced can also be used for food-processing equipment with washable control panels.

1. The 3 year warranty extends 36 months after shipment from our factory.
2. Hose down test only.
