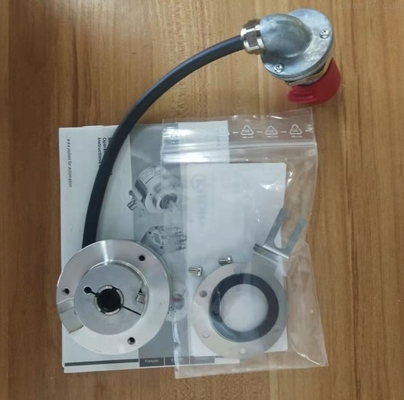

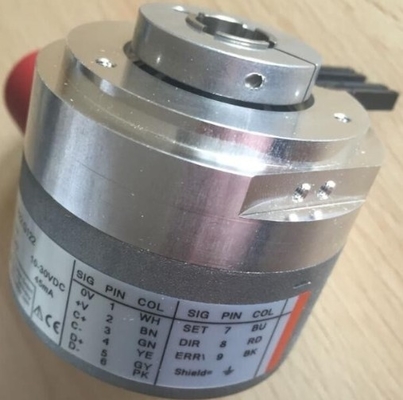

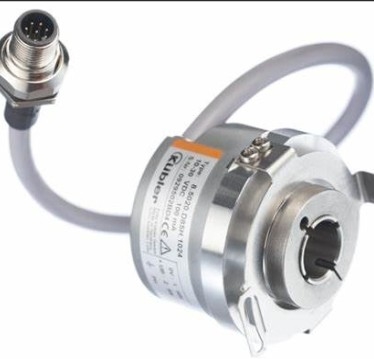

Kuebler 8.5020.D33F.0360.0020 Incremental Stator Coupling 10mm Bore 7273/5-30V 2m Cable 360PPR
| Place of Origin | china |
|---|---|
| Brand Name | Kuebler |
| Certification | CE |
| Model Number | 8.5020.D33F.0360.0020 |
| Minimum Order Quantity | 1 |
| Price | USD$270 |
| Packaging Details | carton |
| Delivery Time | 10-12weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Level | IP65 | Connection Types | Axial Cable |
|---|---|---|---|
| Weight | 400 G | Max. Rotational Speed | 12.000 Min-1 |
| Highlight | 8.5020.D33F.0360.0020,Stator Coupling Incremental,10mm Bore Incremental |
||
Product Description
| MECHANICAL | |
|---|---|
| Dimension | Ø 50 mm |
| Shaft type | 6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 1/4 " hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, through 5/8 " hollow shaft, through |
| Flange type | Spring element, long Stator coupling Torque brackets long Ø 50.80 mm Ø 57.20 mm Ø 63.00 mm Ø 65.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level | IP65 IP66 IP67 |
| Connection types | Axial cable Radial cable Tangential cable M23 connector radial M12 connector radial MIL connector |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
| ELECTRICAL | |
|---|---|
| Scanning | optical |
| Resolution max. | 5.000 ppr incremental |
| Power supply | 5 V DC 5...30 V DC 10...30 V DC |
| Interfaces | Gegentakt TTL / RS422 Open Collector |
| Options | |
|---|---|
| on request |
|
