Wago Switched-mode Power Supply 787-833 787-834 787-885 1-phase 24 VDC Output Voltage
| Place of Origin | Germany |
|---|---|
| Brand Name | Wago |
| Certification | CCC,CE |
| Model Number | 787-833 787-834 787-885 |
| Minimum Order Quantity | 1 |
| Price | USD$490/PC |
| Packaging Details | Original |
| Delivery Time | 12-18 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Switched-mode Power Supply | Phases | 1 |
|---|---|---|---|
| Nominal Input Voltage Ui Nom | 1 X AC 100 … 240 V | Input Voltage Range | 1 X AC 85 … 264 V; DC 120 … 300 V |
| Input Voltage Derating | -1.5 %/V (< 110 VAC) | Nominal Output Power | 480W |
| Nominal Mains Frequency Range | 50 … 60 Hz; 0 Hz | Mains Failure Hold-up Time | ≥ 25 Ms (230 VAC) |
| Operation Status Indicator | Green LED (DC OK) Red LED (error) | ||
| Highlight | 1-phase Switched-mode power supply,787-834 Switched-mode power supply,Wago Switched-mode Power Supply |
||
Product Description

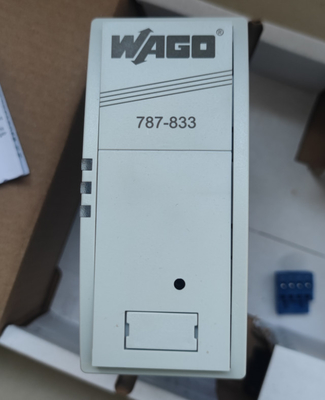

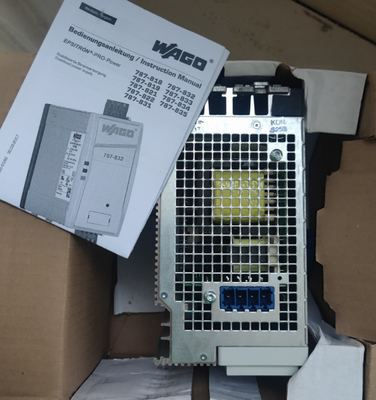

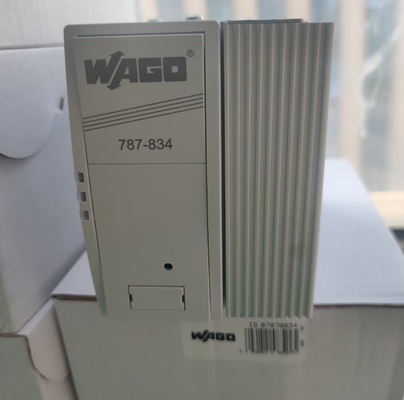

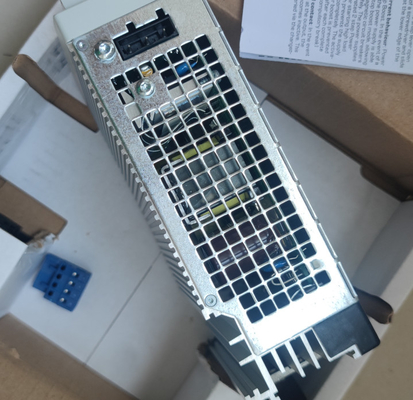

Wago Switched-mode power supply 787-833 787-834 787-885
Switched-mode power supply; Pro; 1-phase; 24 VDC output voltage; 20 A output current; TopBoost + PowerBoost; DC OK contact; 2,50 mm²
Features:
- Switched-mode power supply with PowerBoost and TopBoost
- Switch off the output and minimize power consumption via stand-by input
- Output monitoring via DC OK contact
- Suitable for both parallel and series operation
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Electrically isolated output voltage (SELV) per UL 60950-1; PELV per EN 60204
