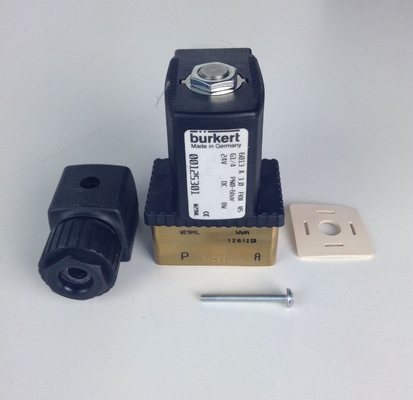

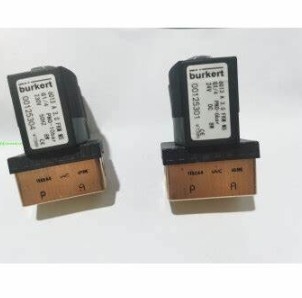

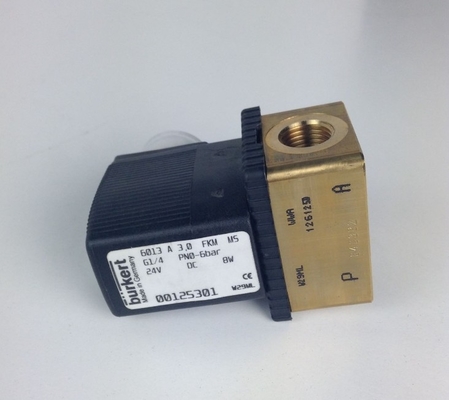

Burkert Solenoid Valve 125301, 2 Ports , NC, 24 V Dc, 1/4in 00125301

Burkert 125301 normally closed compact solenoid valve with modular direct acting solenoid valve system.

Burkert 6013 valves are direct-acting plunger valves. Due to the fact that the plunger guide and plug are welded together, increased resistance to pressure and tightness is achieved. The manufacturer offers various seal materials depending on the application. The special compact design of Bürkert flanges (SFB) saves space when placing valves on the manifold. Kick and Drop coils available to reduce power consumption during operation

Advantages of the 6013 series:

1. Direct-acting valves in a compact design with a diameter up to DN 6.0.
2. Explosion-proof versions available
3. It is possible to order an energy-saving version with the Kick and Drop function.
4. Vibration-resistant bolt-on coil system.

Datasheet:

• Article: 00125301
• 6013-A03,0FFMSGM82-5-024/DC-08 *EA60
• Function: 2/2 - A P/NC (normally closed - inlet port 1)
• Inner thread: G1/4
• Operating Voltage: 24 V DC
• Pressure (max): 6 bar
• Housing Material: Brass
• Ambient temperature: Up to +55 °C
• Seal type: Fluor rubber (FKM)
