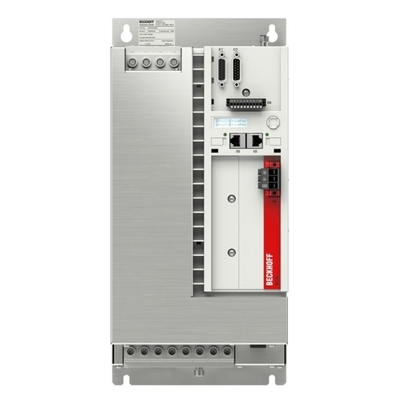

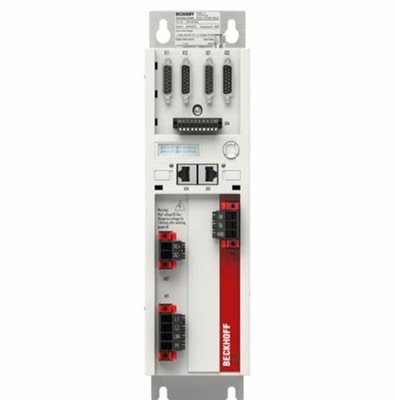

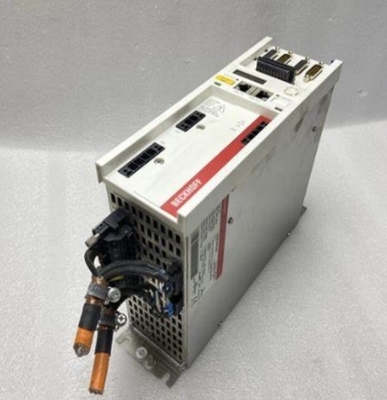

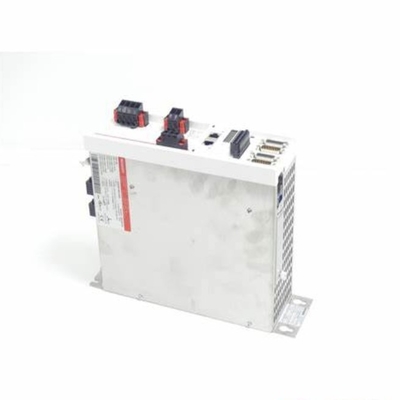

2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage

  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
  • 2-Channel Digital Compact Servo Drives BECKHOFF AX5206 Max. 875 V DC DC Link Voltage
Place of Origin china
Brand Name BECKHOFF
Certification CE
Model Number AX5206-0000-0200
Minimum Order Quantity 1
Price USD$1680
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Servo Drive Channels 2
Rated Supply Voltage 3 X 100…480 V AC ±10 % DC Link Voltage Max. 875 V DC
Highlight

BECKHOFF AX5206 Servo Drives

,

2-Channel Digital Compact Servo Drives
Leave a Message
Product Description
Technical data AX5206
Function servo drive
Channels 2
Rated supply voltage 3 x 100…480 V AC ±10 %
DC link voltage max. 875 V DC
Rated output current (channel) 6 A
Peak output current (channel) 13 A
Feedback SinCos 1 Vpp , resolver , EnDat 2.1 , Hiperface , BiSS B , OCT
System bus EtherCAT
Drive profile SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
Ambient temperature (operation) 0…+50 °C (see documentation)
Approvals/markings CE, cULus, EAC
To top
Housing data AX51xx | AX52xx
Protection rating IP20
To top
Dimensions AX5206
Height without connectors 274 mm
Depth without connectors 232 mm
Width 92 mm
