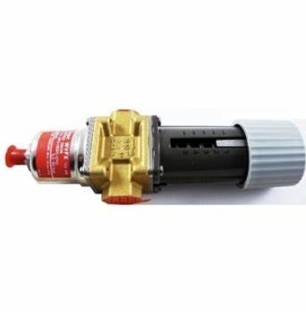

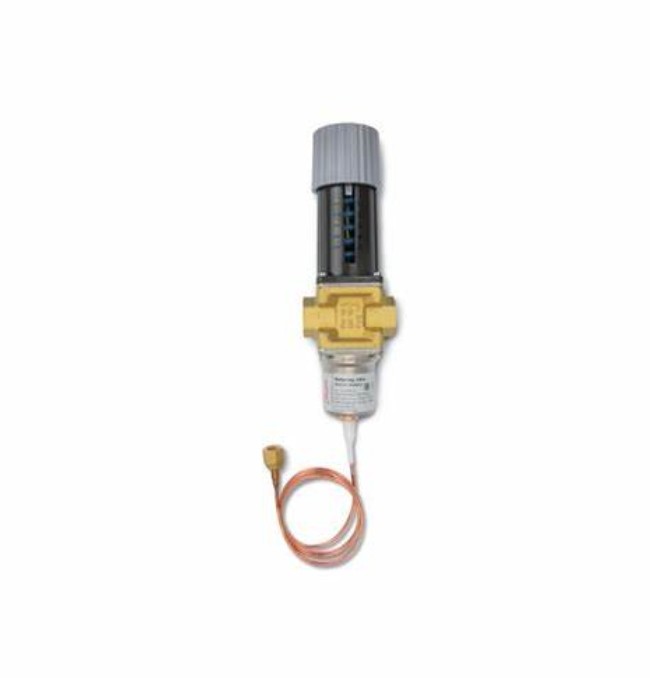

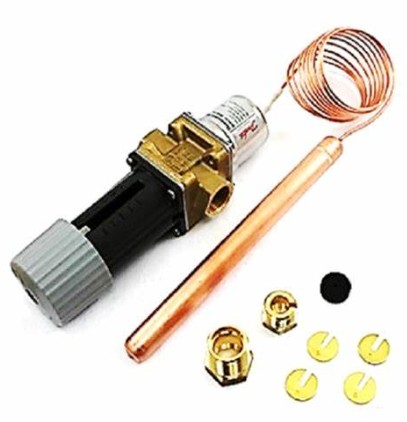

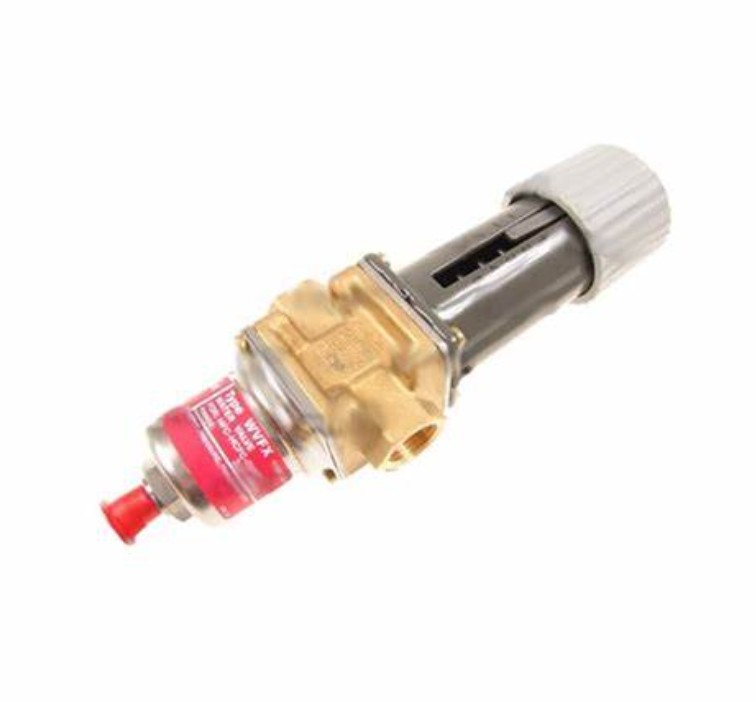

Danfoss 003N2100 DANFOSS REFRIGERATION Pressure Operated Water Valve
| Place of Origin | china |
|---|---|
| Brand Name | Danfoss |
| Certification | CE |
| Model Number | 003N2100 |
| Minimum Order Quantity | 1 |
| Price | USD$105 |
| Packaging Details | carton |
| Delivery Time | 3 months |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gross Weight | 1.37 Kilogram | Body Material | Brass |
|---|---|---|---|
| China RoHS Compliance | Yes | Cv Value [gal/min] | 2.2 Gal/min |
| Highlight | DANFOSS Pressure operated water valve,003N2100 Pressure operated water valve,DANFOSS REFRIGERATION Water Valve |
||
Product Description
Product details
| Gross weight | 1.37 Kilogram |
| Net weight | 0.96 Kilogram |
| Volume | 3.68 Liter |
| EAN | 5702422024866 |
| Approval | C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Connection type (refrigerant) | SAE flare |
| Control pressure range [bar] [max] | 16 bar |
| Control pressure range [bar] [min] | 3.5 bar |
| Cv value [gal/min] | 2.2 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b), 6(c) |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 1.9 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 29 bar |
| Max.test press.(refrig.)[psig] | 420.6 psig |
| Media | Fresh water Neutral brine |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -25 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -13 °F |
| MWP (refrigerant) [bar] | 26.4 bar |
| Oil free refrigerants | R513A |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessories Water valves accessories |
| Product group | Water regulating valves |
| Product Name Description | Pressure operated water valve |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A |
| SCIP dossier no. | f7d782f1-04df-4c40-bfe2-ea3a06dce79f |
| SCIP dossier product name | WVS/WVTS |
| Serviceable | Water valve spare parts |
| Type | WVFX 15 |
| UK RoHS compliance | Out of scope |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D |
