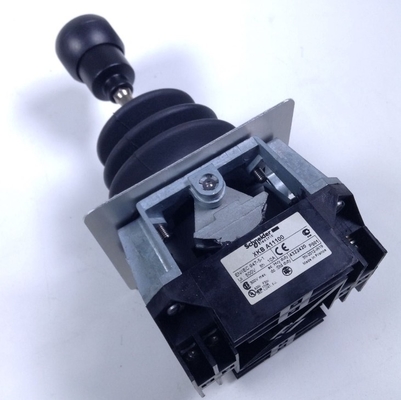

Schneider Complete Joystick Controller for Harmony XKBA Light Hosting Application XKB Device Short Name

  • Schneider Complete Joystick Controller for Harmony XKBA Light Hosting Application XKB Device Short Name
  • Schneider Complete Joystick Controller for Harmony XKBA Light Hosting Application XKB Device Short Name
  • Schneider Complete Joystick Controller for Harmony XKBA Light Hosting Application XKB Device Short Name
  • Schneider Complete Joystick Controller for Harmony XKBA Light Hosting Application XKB Device Short Name
Place of Origin china
Brand Name Schneider
Certification CE
Model Number XKBA32330
Minimum Order Quantity 1
Price USD$330
Packaging Details carton
Delivery Time 3-4weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range Of Product Harmony XK Device Short Name XKB
Bezel Material Metal Fixing Collar Material Metal
Sale Per Indivisible Quantity 1
Highlight

XKB Device Short Name Joystick Controller

,

Schneider Complete Joystick Controller
Leave a Message
Product Description



Main
Range of product Harmony XK
Product or component type Complete joystick controller
Product specific application Light hoisting applications
Complementary
Device short name XKB
Bezel material Metal
Fixing collar material Metal
Sale per indivisible quantity 1
protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -20…70 °C
Overvoltage category Class I conforming to IEC 61140
IP degree of protection IP54 conforming to IEC 60529
Standards EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508
Product certifications UL
CSA
RRS
CCC
Contact code designation Q300
A300
Operator position information All positions
Operator profile Standard handle
Notch per direction 1…3 notches at 12°-20°-28° for each direction
Mechanical durability 1000000 cycles
Vibration resistance 6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6
Shock resistance 20 gn (duration = 11 ms) conforming to IEC 60068-2-6
Connections - terminals Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end
Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end
Captive screw clamp terminals, >= 1 x 0.5 mm²
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1
10 A conforming to CSA C22.2 No 14
10 A conforming to UL 508
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Compatibility code XKB
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 10.0 cm
Package 1 Length 10.0 cm
Package 1 Weight 800.0 g
