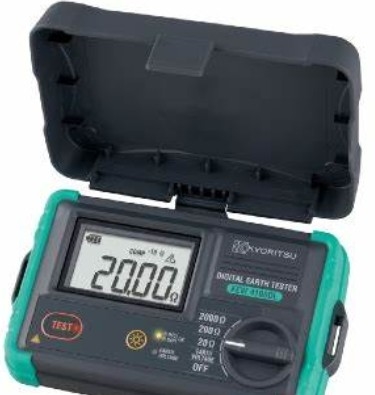

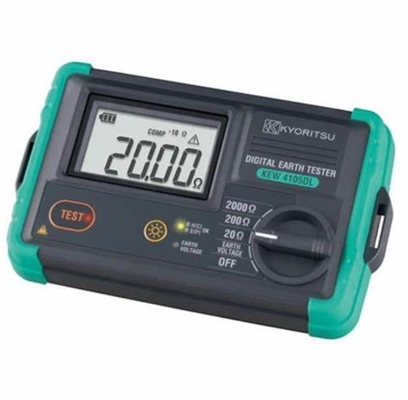

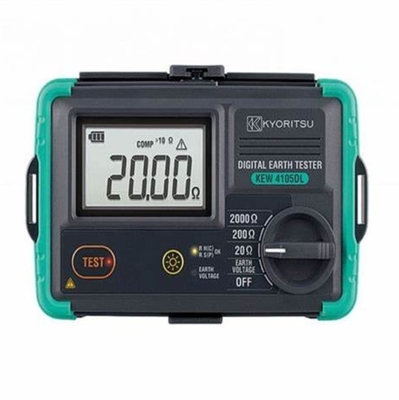

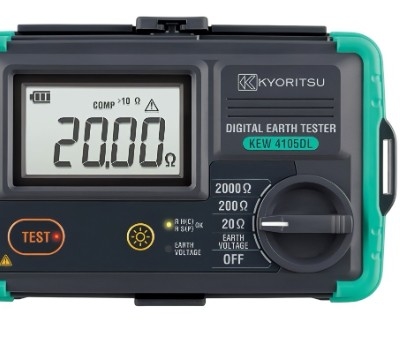

Highly Accurate Kyoritsu 4105DL Earth Tester Cable Reel Set Model Measuring Range 0 300 V AC 45 65HZ

  • Highly Accurate Kyoritsu 4105DL Earth Tester Cable Reel Set Model Measuring Range 0 300 V AC 45 65HZ
  • Highly Accurate Kyoritsu 4105DL Earth Tester Cable Reel Set Model Measuring Range 0 300 V AC 45 65HZ
  • Highly Accurate Kyoritsu 4105DL Earth Tester Cable Reel Set Model Measuring Range 0 300 V AC 45 65HZ
  • Highly Accurate Kyoritsu 4105DL Earth Tester Cable Reel Set Model Measuring Range 0 300 V AC 45 65HZ
Place of Origin china
Brand Name Kyoritsu
Certification CE
Model Number 4105DL
Minimum Order Quantity 1
Price USD$690
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram,
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 0.00 - 2000 Measuring Range 0 - 300 V AC (45 - 65HZ
Display Range 0.0 - 314.9 V Accuracy ±1%rdg±4dg
Highlight

4105DL Earth Tester Cable Reel Set

,

Highly Accurate Hart Field Communicator
Leave a Message
Product Description
Earth resistance
measurement		 20? 200? 2000?
  Measuring range 0.00 - 2000 ?
Display range 0.00 - 20.99 ? 0.0 - 209.9 ? 0 - 2099 ?
Accuracy*1 ±1.5%rdg±0.08 ?*2 ±1.5%rdg±4dgt
Auxiliary earth resistance*3 <10k? <50k? <100k?
Comparator reference value 10? 100? 500?
Earth voltage measurement
  Measuring range 0 - 300 V AC (45 - 65Hz) ±0 - ±300 V DC
Display range 0.0 - 314.9 V 0.0 - ±314.9 V
Accuracy ±1%rdg±4dgt
Overload protection Earth resistance : 360V AC (10 seconds)
Earth voltage : 360V AC (10 seconds)
Applicable Standards IEC 61010-1, CAT IV 100 V /CAT III 150 V /CAT II 300 V Pollution degree 3
IEC 61010-2-030,IEC 61010-031, IEC 61557-1, -5
IEC 60529 IP67, IEC 61326-1, -2-2, EN50581(RoHS)
Power source LR6(AA)(1.5V) × 6
Dimensions 121(L) × 188(W) × 59(H) mm (including case lid)
Weight Approx. 690g (including batteries and case lid)
Accessories
for 4105DL		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(Shoulder strap)
7267(Cable reel for Earth resistance tester (red))
7268(Cable reel for Earth resistance tester (yellow))
7271(Earth resistance test leads)
9190(Carrying case)
LR6(AA) × 6, Instruction manual
Accessories
for 4105DL-H		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(Shoulder strap)
7266(Earth resistance test leads[red-20m, yellow-10m, green-5m/1set])
9191(Hard case)
LR6(AA) × 6, Instruction manual
Optional 7272(Precision measurement Cord set)
8259(Adapter for measurement terminal)
