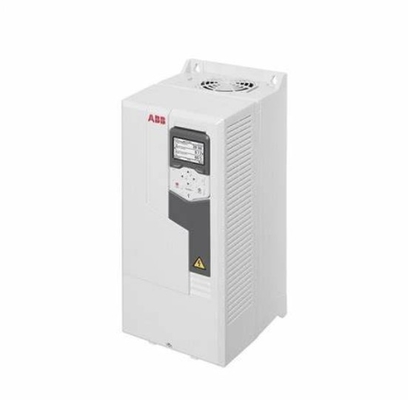

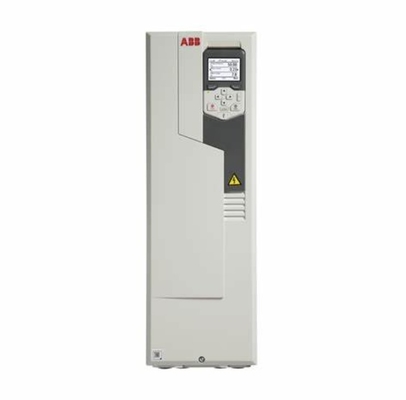

ABB ACS580-01-026A-4 DRIVE 11kW/25A IP21 EMC Class C2 Altitude 1000 M Degree Of Protection IP21

  • ABB ACS580-01-026A-4 DRIVE 11kW/25A IP21 EMC Class C2 Altitude 1000 M Degree Of Protection IP21
  • ABB ACS580-01-026A-4 DRIVE 11kW/25A IP21 EMC Class C2 Altitude 1000 M Degree Of Protection IP21
  • ABB ACS580-01-026A-4 DRIVE 11kW/25A IP21 EMC Class C2 Altitude 1000 M Degree Of Protection IP21
  • ABB ACS580-01-026A-4 DRIVE 11kW/25A IP21 EMC Class C2 Altitude 1000 M Degree Of Protection IP21
Place of Origin china
Brand Name  ABB
Certification CE
Model Number ACS580-01-026A-4
Minimum Order Quantity 1
Price USD$485
Packaging Details carton
Delivery Time 4-6weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Phases 3 Degree Of Protection IP21
Enclosure Type NEMA Type1 Altitude 1000 M
Operating Humidity (RHamb) 5 ... 95
Highlight

11kW ABB ACS580-01-026A-4

,

25A ABB ACS580-01-026A-4

,

IP21 ABB ACS580-01-026A-4
Leave a Message
Product Description
Country of Origin:
Romania (RO)
Finland (FI)
China (CN)
Customs Tariff Number:
85044086
HS Code:
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description:
ACS580-01-026A-4 PN: 11.0 kW, IN: 25 A
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Quote Only:
No
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
6.6 kg
14.551 lb
Product Net Depth / Length:
228.50 mm
9.02 in
Product Net Height:
473.00 mm
18.62 in
Product Net Width:
125.00 mm
4.92 in
Package Level 1 Depth / Length:
225.00 mm
8.858 in
Package Level 1 Height:
370.00 mm
14.567 in
Package Level 1 Width:
621.00 mm
24.449 in
Package Level 1 Units:
1 carton

Technical

Number of Phases:
3
Degree of Protection:
IP21
Enclosure Type NEMA:
Type1
Altitude:
1000 m
Operating Humidity (RHamb):
5 ... 95
Sound dB (A):
64 dB(A)
Multiple Battery Information:
Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f):
47.5 ... 63 Hz
Frame Size:
R2
Input Voltage (Uin):
380 ... 480 V
Mounting Type:
Wall-mounted
Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:
Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:
Control unit
PC connection
Analog Inputs:
2
Analog Outputs:
2
Number of Digital In/Outputs:
6 / 3
Output Current, Heavy-Duty Use (IHD):
17.0 A
Output Current, Light-Overload Use (ILD):
23.8 A
Output Current, Normal Use (In):
25 A
Output Power, Heavy-Duty Use (PHD):
7.5 kW
Output Power, Light-Overload Use (PLD):
11.0 kW
Output Power, Normal Use (Pn):
11 kW
Apparent Power Output:
17 kV·A
Efficiency Level:
IE2
Standby Loss:
15 W
Complete Drive Module Efficiency (61800-9-2):
Operating Point
Frequency / Current		 Absolute
Loss		 Efficiency Relative
Loss
0/25 %
126 W
87.9 %
0.7 %
0/50 %
162 W
91.6 %
0.9 %
0/100 %
284 W
92.6 %
1.6 %
50/25 %
135 W
93.4 %
0.8 %
50/50 %
180 W
95.4 %
1.0 %
50/100 %
322 W
95.8 %
1.9 %
90/50 %
196 W
97.1 %
1.1 %
90/100 %
383 W
97.2 %
2.2 %
Temperature Rating:
Maximum 40 °C
Minimum -15 °C

Classifications

ETIM 8:
EC001857 - Frequency converter =< 1 kV
ETIM 9:
EC001857 - Frequency converter =< 1 kV
UNSPSC:
39122001

Environmental

SCIP:
4a4ed2db-43e7-4612-8e9c-3921e4acd08b Finland (FI)
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Additional Information

Product Name:
Frequency converter
