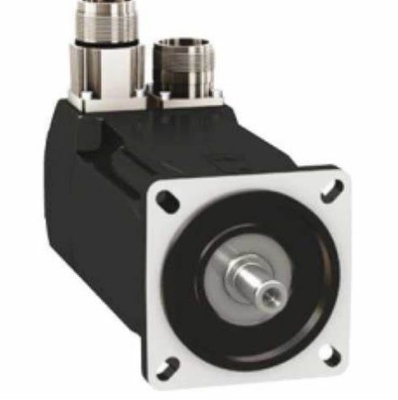

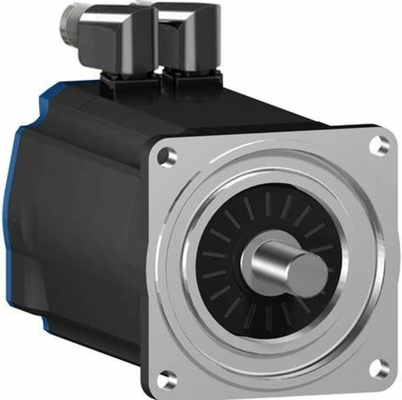

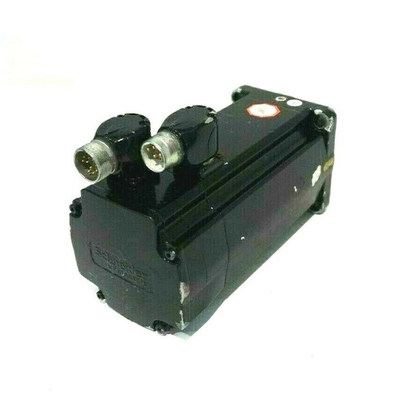

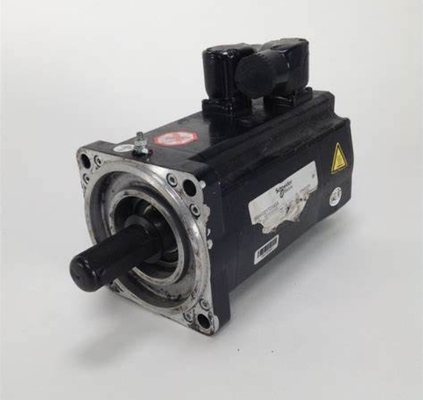

Schneider BSH AC Servo Motor Lexium 05 5.5N.m 4000rpm Keyed Shaft with Brake and IP50 Protection Max Supply Voltage 480V

  • Schneider BSH AC Servo Motor Lexium 05 5.5N.m 4000rpm Keyed Shaft with Brake and IP50 Protection Max Supply Voltage 480V
  • Schneider BSH AC Servo Motor Lexium 05 5.5N.m 4000rpm Keyed Shaft with Brake and IP50 Protection Max Supply Voltage 480V
  • Schneider BSH AC Servo Motor Lexium 05 5.5N.m 4000rpm Keyed Shaft with Brake and IP50 Protection Max Supply Voltage 480V
  • Schneider BSH AC Servo Motor Lexium 05 5.5N.m 4000rpm Keyed Shaft with Brake and IP50 Protection Max Supply Voltage 480V
Place of Origin china
Brand Name Schneider
Certification CE
Model Number BSH1002T11F2A
Minimum Order Quantity 1
Price USD$790
Packaging Details carton
Delivery Time 2 months
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shaft End Keyed IP Degree Of Protection IP50 Standard
Speed Feedback Resolution 131072 Points/turn Supply Voltage Max 480 V
Highlight

Schneider BSH AC Servo Motor

,

4000rpm AC Servo Motor

,

IP50 Protection AC Servo Motor
Leave a Message
Product Description



Main
Device short name BSH
Product or Component Type Servo motor
Maximum mechanical speed 6000 rpm
Continuous stall torque 51.3 lbf.in (5.8 N.m) LXM32.D30M2 10 A, 230 V, single phase
48.7 lbf.in (5.5 N.m) LXM15LD28M3, 230 V, three phase
48.7 lbf.in (5.5 N.m) LXM05AD42M3X, 200...240 V, three phase
48.7 lbf.in (5.5 N.m) LXM05BD42M3X, 200...240 V, three phase
48.7 lbf.in (5.5 N.m) LXM05CD42M3X, 200...240 V, three phase
Peak stall torque 145.2 lbf.in (16.4 N.m) LXM32.D30M2 10 A, 230 V, single phase
102.58 lbf.in (11.59 N.m) LXM15LD28M3, 230 V, three phase
141.6 lbf.in (16 N.m) LXM05AD42M3X, 200...240 V, three phase
141.6 lbf.in (16 N.m) LXM05BD42M3X, 200...240 V, three phase
141.6 lbf.in (16 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal output power 1500 W LXM32.D30M2 10 A, 230 V, single phase
1400 W LXM05AD42M3X, 200...240 V, three phase
1400 W LXM05BD42M3X, 200...240 V, three phase
1400 W LXM05CD42M3X, 200...240 V, three phase
1700 W LXM15LD28M3, 230 V, three phase
Nominal torque 32.7 lbf.in (3.7 N.m) LXM32.D30M2 10 A, 230 V, single phase
35.4 lbf.in (4 N.m) LXM15LD28M3, 230 V, three phase
38.9 lbf.in (4.4 N.m) LXM05AD42M3X, 200...240 V, three phase
38.9 lbf.in (4.4 N.m) LXM05BD42M3X, 200...240 V, three phase
38.9 lbf.in (4.4 N.m) LXM05CD42M3X, 200...240 V, three phase
Nominal speed 4000 rpm LXM32.D30M2 10 A, 230 V, single phase
3000 rpm LXM05AD42M3X, 200...240 V, three phase
3000 rpm LXM05BD42M3X, 200...240 V, three phase
3000 rpm LXM05CD42M3X, 200...240 V, three phase
4000 rpm LXM15LD28M3, 230 V, three phase
Product compatibility LXM32.D30M2 230 V single phase
LXM05AD42M3X 200...240 V three phase
LXM05BD42M3X 200...240 V three phase
LXM05CD42M3X 200...240 V three phase
LXM15LD28M3 230 V three phase
Shaft end Keyed
IP Degree of Protection IP50 standard
Speed feedback resolution 131072 points/turn
Holding brake With
Mounting Support International standard flange
Electrical Connection Rotatable right-angled connectors
Complementary
Range Compatibility Lexium 15
Lexium 32
Lexium 05
supply voltage max 480 V
Phase Three phase
Continuous stall current 9.9 A
maximum continuous power 2.51 W
Maximum current Irms 31.2 A LXM15LD28M3
35.4 A LXM05AD42M3X
35.4 A LXM05BD42M3X
35.4 A LXM05CD42M3X
30 A LXM32.D30M2
Maximum permanent current 35.4 A
Switching frequency 8 kHz
Second shaft Without second shaft end
Shaft diameter 0.7 in (19 mm)
Shaft length 1.6 in (40 mm)
Key width 1.2 in (30 mm)
Feedback type Single turn SinCos Hiperface
Holding torque 79.7 lbf.in (9 N.m) holding brake
Motor flange size 3.9 in (100 mm)
Number of motor stacks 2
Torque constant 0.59 N.m/A 248 °F (120 °C)
Back emf constant 37 V/krpm 248 °F (120 °C)
Number of motor poles 8
Rotor inertia 2.928 kg.cm²
Stator resistance 0.56 Ohm 68 °F (20 °C)
Stator inductance 3 mH 68 °F (20 °C)
Stator electrical time constant 5.36 ms 68 °F (20 °C)
Maximum radial force Fr 620 N 4000 rpm
690 N 3000 rpm
790 N 2000 rpm
990 N 1000 rpm
Maximum axial force Fa 0.2 x Fr
Brake pull-in power 18 W
Type of cooling Natural convection
Length 9.3 in (235.5 mm)
Centring collar diameter 3.7 in (95 mm)
Centring collar depth 0.1 in (3.5 mm)
Number of mounting holes 4
Mounting holes diameter 0.4 in (9 mm)
Circle diameter of the mounting holes 4.5 in (115 mm)
Product Weight 13.9 lb(US) (6.3 kg)
Ordering and shipping details
Category US1PC5318282
Discount Schedule PC53
GTIN 3389118139527
Returnability No
Country of origin DE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.06 in (15.4 cm)
Package 1 Width 6.4 in (16.3 cm)
Package 1 Length 16.02 in (40.7 cm)
Package 1 Weight 14.22 lb(US) (6.45 kg)
