Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2

  • Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2
  • Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2
  • Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2
  • Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2
Place of Origin USA
Brand Name Dwyer
Certification CCC,CE
Model Number DXW-11-153-1,DXW-11-153-2
Minimum Order Quantity 1
Price USD$1900/PC
Packaging Details Original case
Delivery Time 6 Weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Compatible Gases And Liquids Wetted Materials Connection: Brass; Diaphragm: Fluoroelastomer
Temperature Limits 30 To 140°F Pressure Limits Maximum Static Pressure: 200 Psig. Maximum Differential Pressure: 1.25 X Model’s Highest Set Point
Repeatability ±2% Of Full Range Nclosure Rating IP65
Process Connection 1/4" NPT Female Mounting Orientation Ports On Horizontal Plane, ±10°
Highlight

DXW-11-153-1 Differential Pressure Switch

,

DXW-11-153-2 Differential Pressure Switch
Leave a Message
Product Description

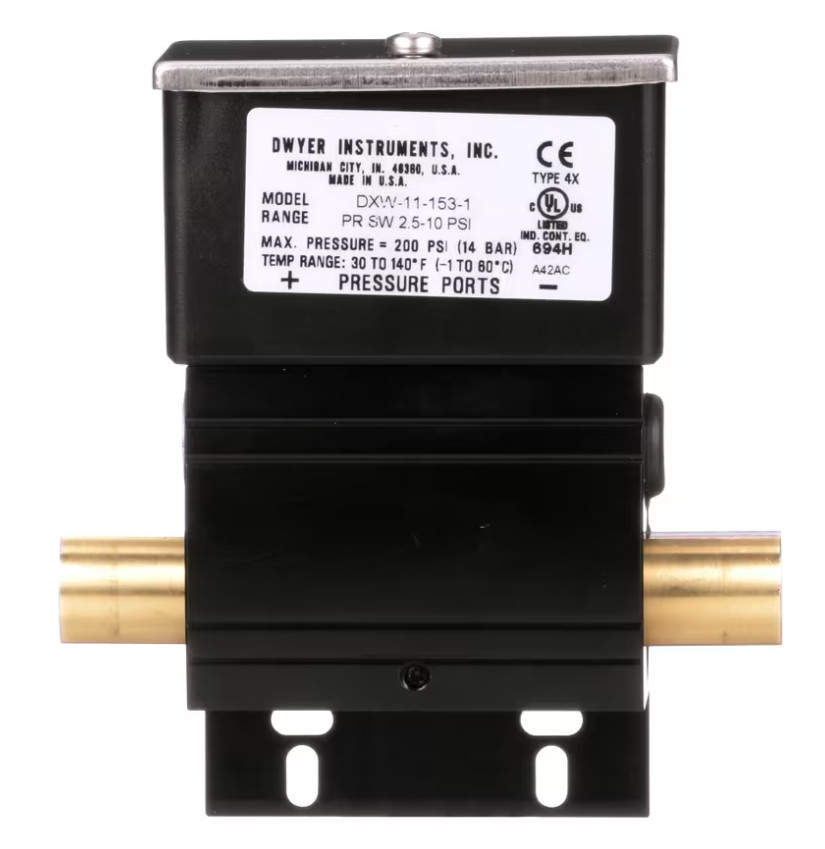

Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2

The Series DX Wet/Wet Differential Pressure Switch makes a contact output based on the differential between two pressure sources. Wetted materials of brass and fluoroelastomer are suitable for use with most gases and water based solutions. The switch can be used for low differential pressure indication with set point on a decrease of pressure as low as 1 psid (0.07 bar). Differential set point ranges are available from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) on decreasing differential pressure. Unit features a high static pressure rating of 200 psig (13.8 bar). Weatherproof, UL type 4X, enclosure for dust laden, outdoor, or wash-down installation environments. Externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.



Dwyer Differential Pressure Switch DXW-11-153-1,DXW-11-153-2 0





Features
Differential pressure switch that is suitable for most gas and water-based applications allows multiple uses in the most sophisticated designs
Weatherproof housing provides protection in the harsh, wet or dirty environments ensuring switch’s long-service life
Removable terminal block reduces installation time
