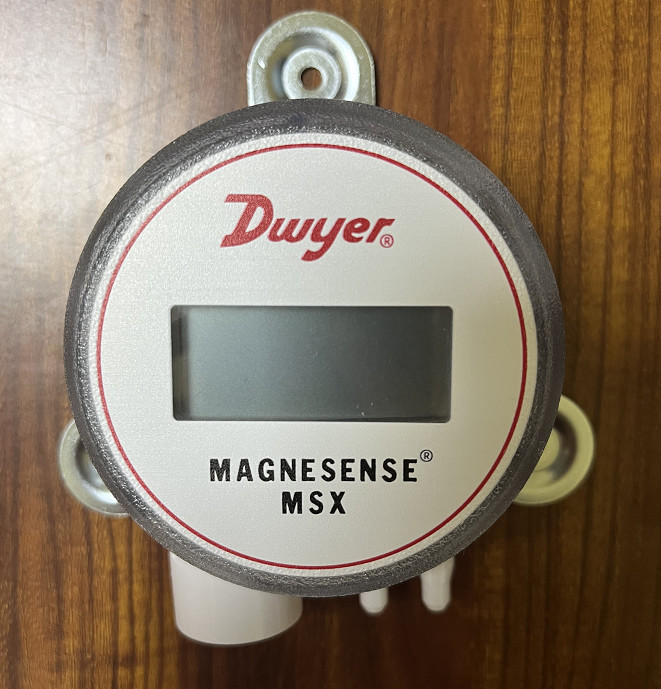

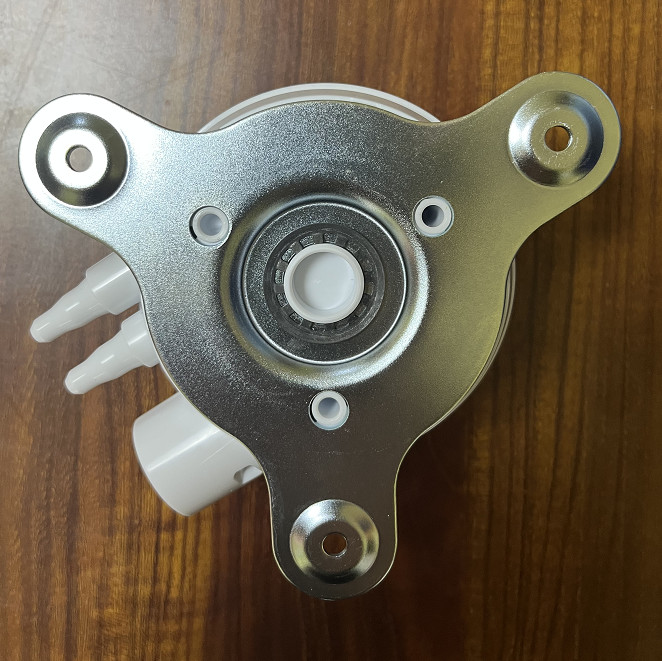

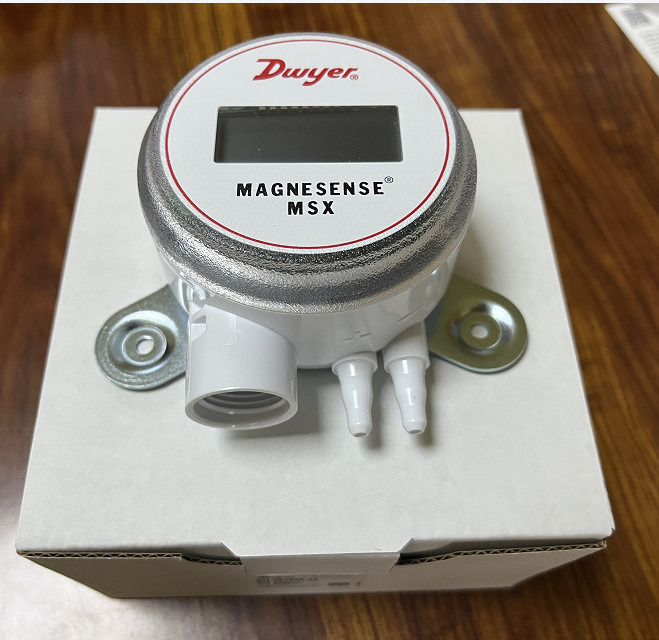

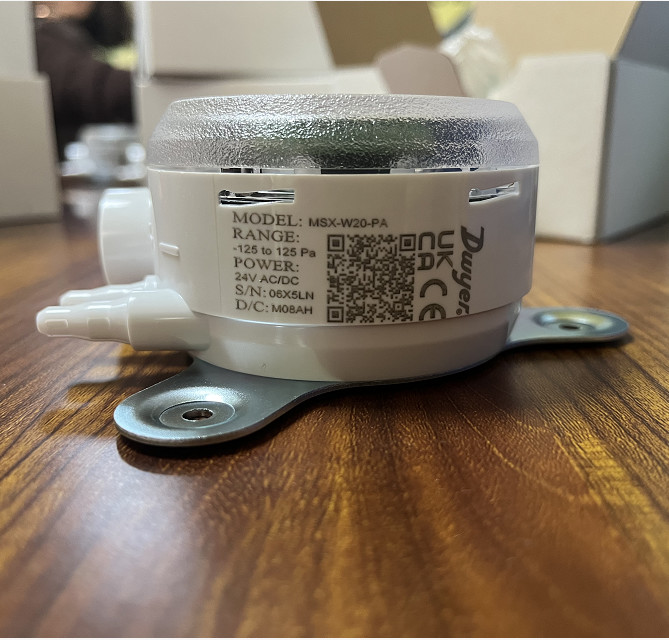

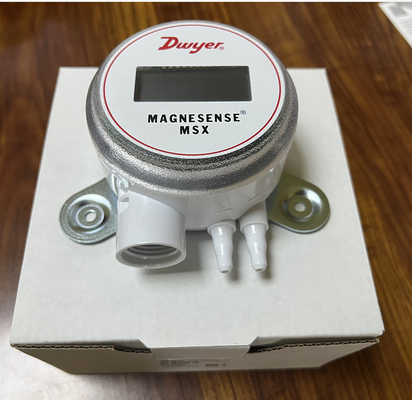

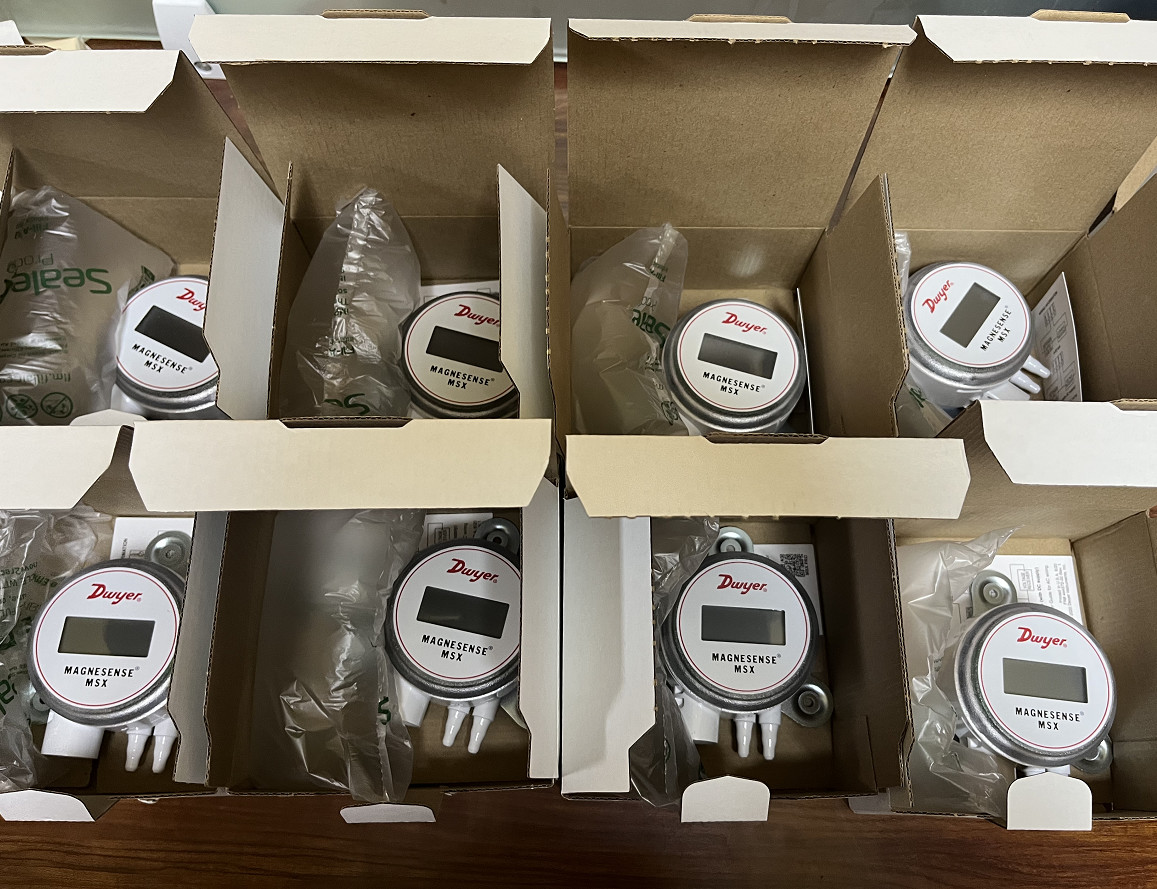

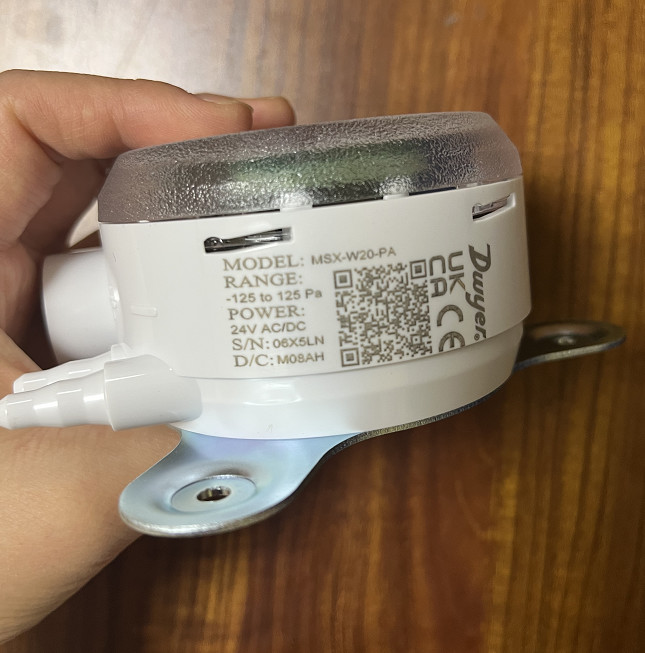

20mA Digital Differential Pressure Sensors MSX-W20-PA-LCD Dwyer Pressure Transmitter
| Place of Origin | USA |
|---|---|
| Brand Name | DWYER |
| Certification | CCC.CE |
| Model Number | MSX-W20-PA-LCD |
| Minimum Order Quantity | 1 |
| Price | usd98 piece/pieces |
| Packaging Details | carton |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pressure Name | Pressure Transmitter | Model | Msx-20w-pa |
|---|---|---|---|
| Accuracy | ±1% FSO. | Temperature Limits | -4 To 158°F (-20 To 70°C). |
| Output Signals | 4-20 MA | Zero And Span Adjustments | Digital Push-button |
| Highlight | Differential Pressure Sensors Msx-20w-Pa,20mA Differential Pressure Indicator,Digital Differential Pressure Transmitter |
||
You can tick the products you need and communicate with us in the message board.
| Service | Air and non-combustible, compatible gases | |
|---|---|---|
| Wetted Materials | Consult factory | |
| Stability | ±1% FSO/year | |
| Electrical Entry | 1/2" NPS thread |
Product Description
Msx-20w-pa Dwyer Instruments Pressure Sensors Msx Pro Pressure Transmitter
Monitors Differential Pressure, Air Velocity and Volumetric Flow
The Series MSX Magnesense® Differential Pressure Transmitter combines the stability and versatility of the original Series MS2 Magnesense® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges are available in Pa, mm w.c., and in w.c. All pressure ranges can be configured in unidirectional or bidirectional modes, providing a total of 32 ranges. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability for calculating flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification.
| Product name | Pressure Trasmitter |
| Service | Air and non-combustible, compatible gases |
| Accuracy | ±1% FSO |
| Power Requirements | 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire) |
| Output Signals | 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire). |
| Electrical Entry | 1/2" NPS thread |
| Display | 4 digit LCD. |
| Mounting Orientation | Pressure sensor measurement unaffected by orientation |
Features
- Read LCD values easier with rotatable 180° display
- Quick and easy wiring via the optional toolless terminal block
- Add safety to variety of applications with UL94 V-0 and plenum ratings
- PRODUCT APPLICATIONS
- Filter monitoring in air handler units
- Building pressure in pharmaceutical/semiconductor clean rooms
- Duct static pressure in commercial buildings
- Air velocity/flow in VAV systems
-
Pressure Limits:Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2 and 3: 6 psi max operation, 6 psi burst.
Loop Resistance:Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 k Ω.
