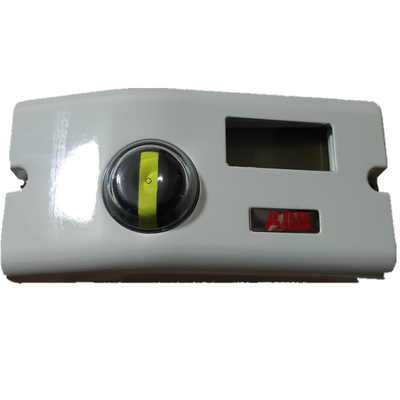

Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001

  • Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001
  • Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001
  • Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001
  • Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001
Place of Origin Germany
Brand Name ABB
Certification CCC.CE
Model Number V18345-1010421001
Minimum Order Quantity 1
Price USD$800/pc
Packaging Details carton New and Original
Delivery Time 10-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type TZIDC Electro-Pneumatic Positioner Model Numner V18345-1010421001
Input 4 ... 20 MA Supply Pressure 1.4 ... 6 Bar
Pneumatic Connections Threads G 1/4 Or 1/4-18 NPT
Highlight

TZIDC Electro Pneumatic Positioner

,

V18345-1010421001 Pneumatic Valve Positioner

,

Threads Electro Pneumatic Positioner
You can tick the products you need and communicate with us in the message board.
Product ID: V18345-001
Weight: 2kg
Leave a Message
Product ID: V18345-001
Product Description

ABB TZIDC Electro-Pneumatic Positioner V18345-1010421001

V18345 - TZIDC

Electro-Pneumatic Positioner, intelligent, configurable, with indicato

and operator panel

Case made of aluminum, varnished, with mechanical position indicator,

for mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to rota

actuators acc. VDI / VDE 3845

Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter and F

module for HART communication, FM / CSA, Double acting, fail freeze,

Cable: Thread 1/2-14 NPT, air pipe: Thread 1/4-18 NPT, Plug-in module

for analog position feedback, signal range 4 ... 20 mA, two-wire,

Without Optional Mechanical Kit for Digital Position Feedback, Standar

Design



Germany Original ABB TZIDC Electro Pneumatic Positioner V18345-1010421001 0

  • V18345 : TZIDC = intelligent, configurable with indicator and operator panel
  • Case / Mounting : 1 = Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting
  • Input / communication port : 1 = Input 4...20 mA, two-wire with connector plug for LKS adapter
  • Explosion protection : 0 = without
  • Output / safe position (in case of an electrical power failure) : 4 = Double acting, fail safe
  • Connections : 2 = Cable: Thread 1/2-14 NPT, Air pipe: Thread 1/4-18 NPT
  • Option modules for analog or digital position feedback : 1 = Plug-in module analog position feedback (sign. range 4 … 20 mA)
  • Optional mechanical kit for digital position feedback : 0 = without
  • Design (varnish / coding) : 1 = Standard
  • Output signal (two-wire technology) Nominal range : 4 ... 20 mA
  • Digital input : Control voltage 0 ... 5 V DC logical switching state "0" 11 ... 30 V DC logical switching state "1"
  • Digital output (control circuit to DIN 19234/NAMUR) Supply voltage : 5 ... 11 V DC
  • Supply pressure : 1.4 ... 6 bar (20 ... 90 psi)
  • Air consumption : < 0.03 kg/h / 0.015 scfm (independent of supply pressure)
  • Housing Material/Protections : Aluminum, protection class IP 65 / NEMA 4X
  • Surface/color : Electrostatic dipping varnish with epoxy resin, stove-hardened. Case varnished black, RAL 9005, matte, housing cover Pantone 420.
  • Pneumatic connections : Threads G 1/4 or 1/4-18 NPT
