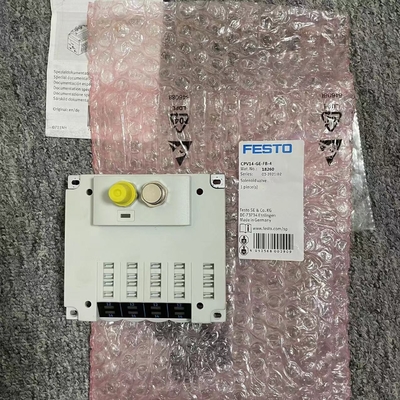

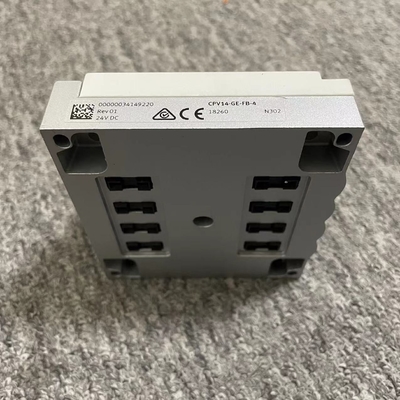

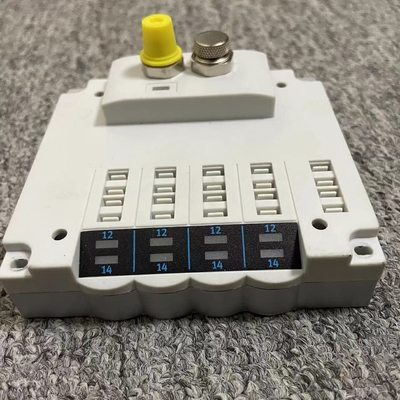

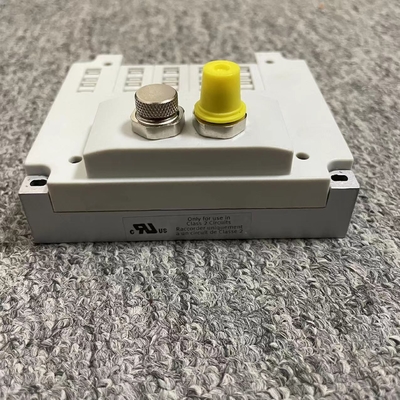

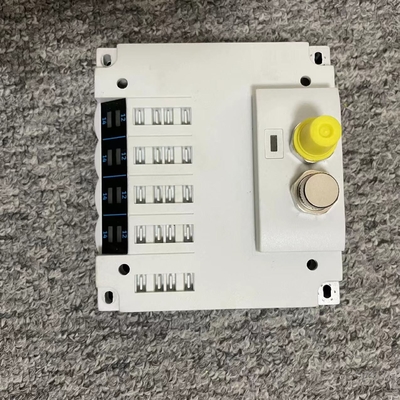

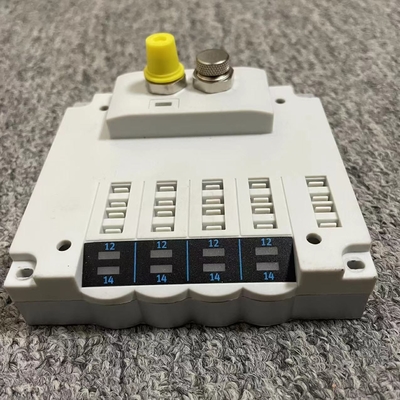

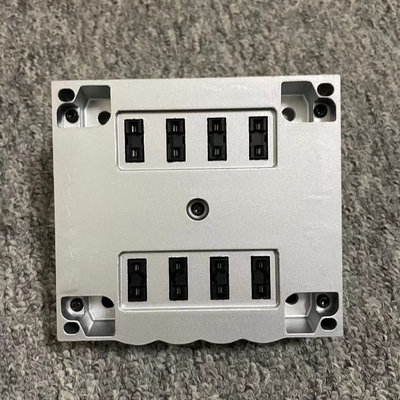

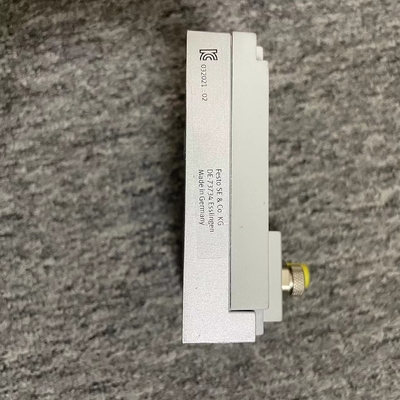

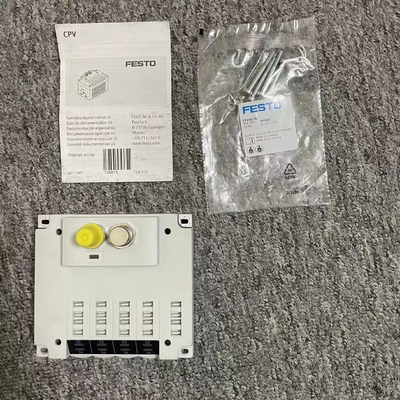

New Valve Cover Festo CPV14-VI CPV14-GE-FB-4 Valve Terminal With Onnection Plate And End Plates 14mm Valves

Innovative Versatile Reliable Easy to install • Cubic design for exceptional performance and low weight • Low installation and bus connection costs • Decentralised machines and system structures, for example – in handling technology – in conveyor technology – in the packaging industry – in sorting systems – in upstream machine functions • Integrated diagnostics, condition monitoring (Fieldbus Direct) • With Fieldbus Direct, string extension from 8 ... 32 inputs and 8 ... 32 outputs is possible without any problems (depending on version). • Flexible and cost-effective connection of two to eight valve slices • Highly flexible thanks to: – various pneumatic functions (valve variants) – different pressure ranges – vacuum switch – integrated vacuum generation • Separator plates for creating pressure zones • Valves with integrated separation of ducts 1 and 11 • Blanking plates for later extensions • LED indicators • Manual overrides for valves • Protection class to IP65 • Protection class IP65 also in conjunction with pneumatic multiple connector plate for control cabinet installation • CE marking • Certification (see technical data.

CPV – The benefits at a glance The valve assembly CPV has a unique design. It allows a flexible mix of pneumatic performance, electrical connection technologies and a variety of installation types. In particular, the pneumatic multiple connector plate enables especially space-saving installation in control cabinets. The valve terminal can often be installed directly in the previously unused wall area of the control cabinet. There is no need to connect up the valves inside the cabinet. All tubes can be connected on the outside. Instead of individual drilled holes, the pneumatic multiple connector plate needs just one rectangular through-hole. The generously sized flow ducts and powerful flat plate silencers ensure high flow rates. All valves are provided as valve slices. They have a compact and flow-optimised design. With two functions per valve slice (e.g. 2x 3/2-way valves), double the component density can be achieved. This saves space and reduces costs. The cubic design permits exceptional performance with a comparatively low weight. These advantages become clear when the valve terminal is moved along on a drive. Despite it being compact, it is also very sturdy. The connecting threads and mounting attachments are metal. The manual override for the valves can be adapted for different operating situations. If, for example, a detenting manual override is required for set-up, this can later be easily changed again so that inadvertent actuation during operation is prevented. The clear, large labelling systems also contribute to safe operation. One particular advantage is the large number of electrical connection technologies. All types of valve control are possible, from individual valve connection to a flexibly expandable bus system. The integration of electric input and output modules permits low-cost solutions in a range of installation con
