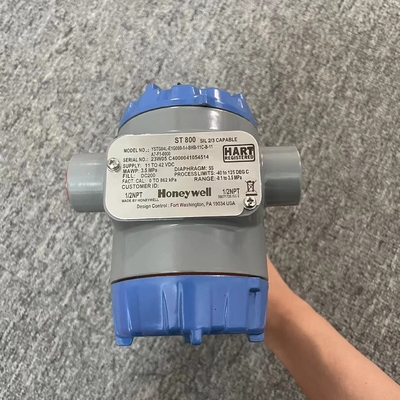

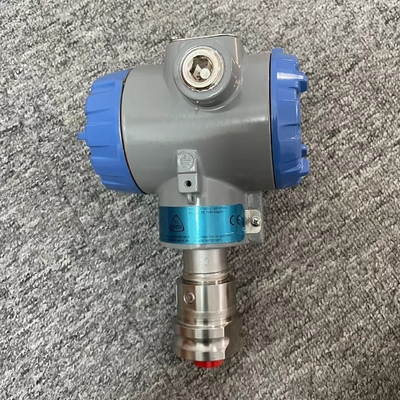

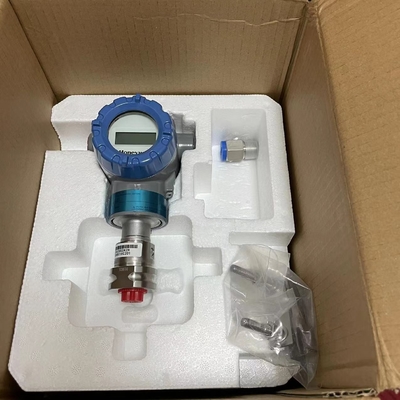

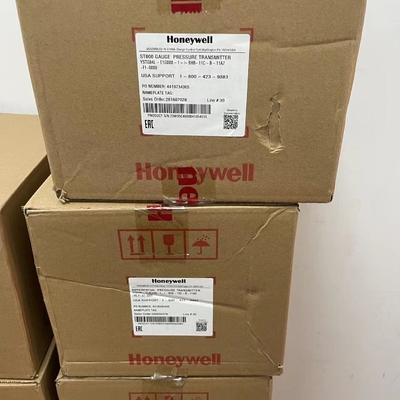

Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter

  • Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter
  • Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter
  • Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter
  • Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter
Place of Origin china
Brand Name Honeywell
Certification -
Model Number YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000
Minimum Order Quantity 1
Price USD310/PC
Packaging Details Original
Delivery Time 1-2WEEKS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand STG840/STG84L Type YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000
Output 4-20ma Warranty 1 Year
Highlight

YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000

,

Original Honeywell Pressure Transmitter
Leave a Message
Product Description
Introduction
Part of the SmartLine® family of products, the STG800 and
STG80L are high performance gauge pressure transmitter
featuring piezoresistive sensor technology combining
pressure sensing with on chip temperature compensation
capabilities providing high accuracy, stability and
performance over a wide range of application pressures and
temperatures. The SmartLine family is also fully tested and
compliant with Experion® PKS providing the highest level of
compatibility assurance and integration capabilities.
SmartLine easily meets the most demanding application
needs for pressure measurement applications.

Best in Class Features:
o Accuracy up to 0.055 % of calibrated span & 0.025% Opt.
o Stability up to 0.015% of URL per year for ten years
o Automatic temperature compensation
o Rangeability up to 100:1
o Response times as fast as 80ms
o Multiple local display capabilities
o External zero, span, & configuration capability
o Polarity insensitive electrical connections
o Comprehensive on-board diagnostic capabilities
o Integral Dual Seal design for safety based on
ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
o Full compliance to SIL 2/3 requirements as a standard.
o Modular design characteristics
o Available with 15 year warranty
o Plugged Impulse Line Detection Option
o Dual/Triple Calibration Option (HART & Fieldbus Only)


Communications/Output Options:
o 4-20mA dc
o Honeywell Digitally Enhanced (DE)
o HART ® (version 7.0)
o FOUNDATION™ Fieldbus


Explore the rest of the SmartLine ST800 Pressure Transmitters Product Family
Absolute Pressure – SmartLine ST800
Differential Pressure – SmartLine ST800
Flange Mount Transmitters – SmartLine ST800
Gauge Pressure Transmitters – SmartLine ST800
Remote Diaphragm Transmitters – SmartLine ST800



ST800 Absolute Pressure Transmitters

STA822/STA82L 0 to 780 mmHga (0 to 1,040 mbara)
STA840/STA84L 0 to 500 psia (0 to 35 bara)
STA87L 0 to 3000 psia (0-207 bara)


ST800 Differential Pressure Transmitters
STD810 -10 to 10 inH2O -25 to 25 mbar
STD820 -400 to 400 inH2O -996 to 996 mbar
STD830 -100 to 100 psi -6.9 to 6.9 bar
STD870 -3,000 to 3,000 psi -207 to 207 bar


ST800 Flange Mount Pressure Transmitters
STF828 -400 to 400 inH2O (-1000 to 1000 mbar) 4 to 400 inH2O (10 to 1000 mbar)
STF832 -100 to 100 psi (-7 to 7 bar) 1 to 100 psi (0.07 to 7 bar)
STF82F -400 to 400 inH2O (-1000 to 1000 mbar) 1 to 400 inH2O (2.5 to 1000 mbar)
STF83F -100 to 100 psi (-7 to 7 bar) 1 to 100 psi (0.07 to 7 bar)


ST800 Dual Head Gauge Pressure Transmitters
STG840/STG84L 0-500 psi 0-35 bar
STG870/STG87L 0-3,000 psi 0-210 bar
STG88L 0-6,000 psi 0-415 bar
STG89L 0-10,000 psi 0-690 bar



ST800 Remote Diaphragm Seal Transmitters
STR82D: 0-10 to 0-400 inH2O 0-25 to 0-1000 mbar
STR83D: 0-5 to 0-100 psig 0-0.35 to 0-7 bar
STR84G: 0-5 to 0-500 psig 0-0.35 to 0-35 bar
STR87G: 0-100 to 0-3000 psig 0-7 to 0-210 bar
STR84A: 0-5 to 0-500 psia 0-0.35 to 0-35 bar

Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter 0Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter 1Original Honeywell YSTG84L-E1G000-1-I-BHB-11C-B-11A7-F1-0000 Pressure transmitter 2
STG840/STG84L 0-500 psi
HART ® version 7.0
