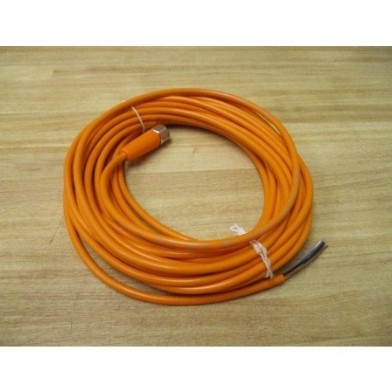

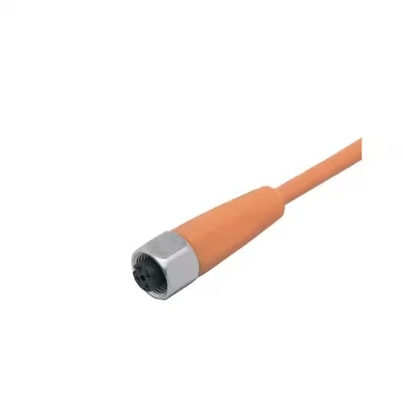

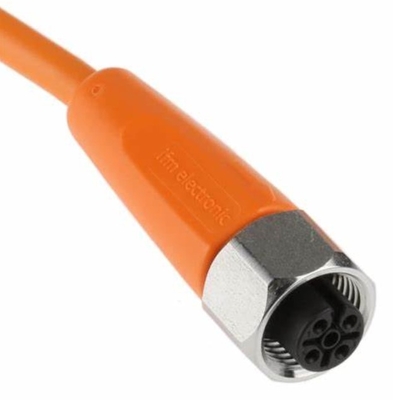

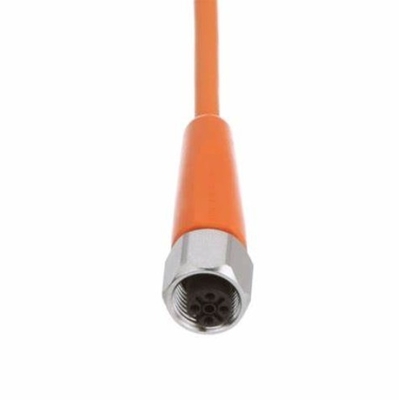

IFM Female Cordset EVT002 ADOGH040VAS0010E04 Sanitary And Wet Areas In The Food Industry

  • IFM Female Cordset EVT002 ADOGH040VAS0010E04 Sanitary And Wet Areas In The Food Industry
  • IFM Female Cordset EVT002 ADOGH040VAS0010E04 Sanitary And Wet Areas In The Food Industry
  • IFM Female Cordset EVT002 ADOGH040VAS0010E04 Sanitary And Wet Areas In The Food Industry
  • IFM Female Cordset EVT002 ADOGH040VAS0010E04 Sanitary And Wet Areas In The Food Industry
Place of Origin china
Brand Name IFM
Certification CE
Model Number EVT002
Minimum Order Quantity 1
Price USD$10
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Free From Silicone Yes Protection Class II
Weight [g] 388.7 Dimensions [mm] 15.5 X 15.5 X 45
Highlight

Food Industry Female cordset

,

Sanitary Areas Female cordset

,

EVT002 ADOGH040VAS0010E04 Female cordset
Leave a Message
Product Description
Application
System Free from silicone; gold-plated contacts; Drag chain suitability
Application sanitary and wet areas in the food industry
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25...100
Note on ambient temperature
cULus: ...50
Ambient temperature (moving) [°C] 5...100
Note on ambient temperature (moving)
cULus: ...50
Storage temperature [°C] -25...55
Storage humidity [%] 10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 388.7
Dimensions [mm] 15.5 x 15.5 x 45
Material housing: PVC orange; sealing: EPDM
Material nut stainless steel (1.4404 / 316L)
Drag chain suitability yes
Drag chain suitability
Bending radius for flexible applications min. 10 x cable diameter
Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles > 1 Mio.
Torsional strain ± 180 °/m
Remarks
Pack quantity 1 pcs.
Electrical connection
  Cable: 10 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
