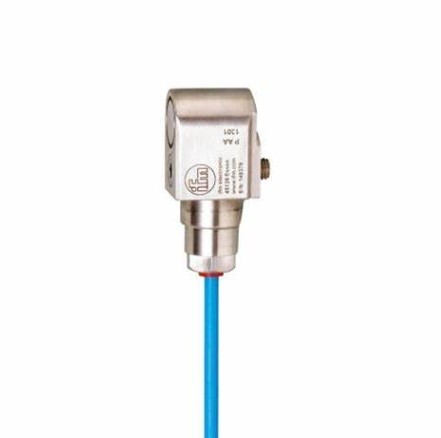

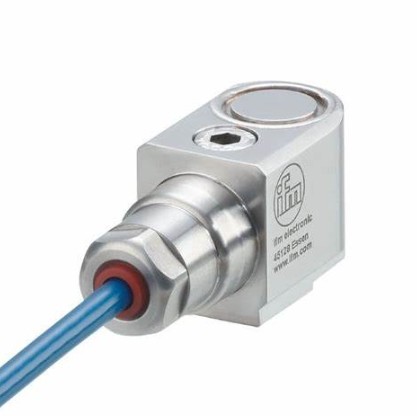

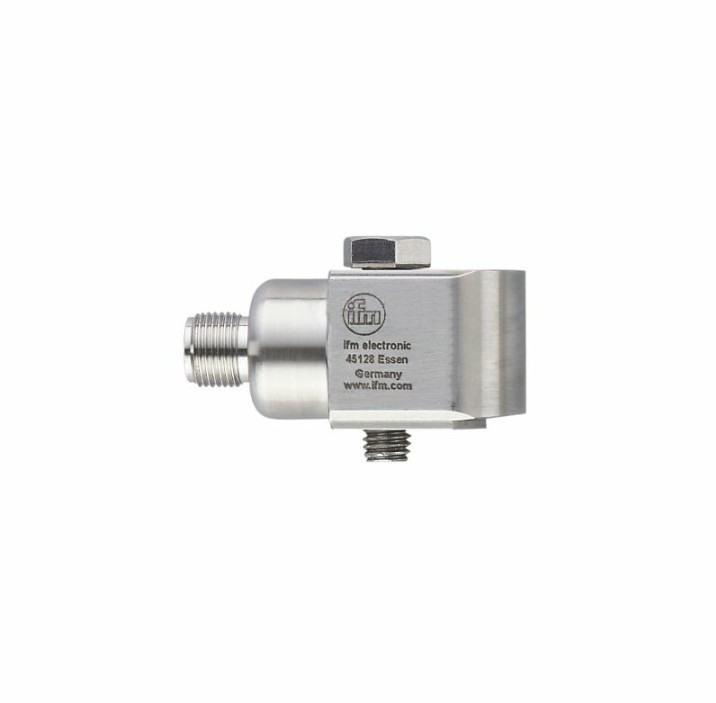

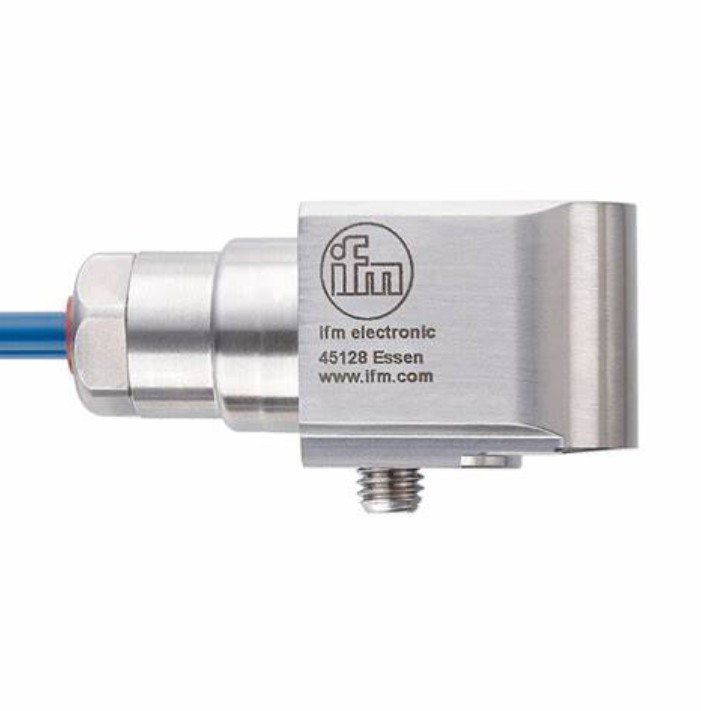

IFM Accelerometer VSP01A VIBRATION SENSOR ATEX

  • IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
  • IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
  • IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
  • IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
Place of Origin china
Brand Name IFM
Certification CE
Model Number VSP01A
Minimum Order Quantity 1
Price USD$529
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Principle Piezoelectric Operating Voltage [V] 10...12 DC
Current Consumption [mA] 0.5...8 Protection Class III
Highlight

ATEX Accelerometer

,

IFM Accelerometer

,

VIBRATION SENSOR Accelerometer
Leave a Message
Product Description
Product characteristics
Measuring range of vibration [g] -50...50
Frequency range [Hz] 2...10000
Measuring principle piezoelectric
Application
Design for connection to external diagnostic electronics VSExxx
Electrical data
Switching amplifiers Connection to intrinsically safe supply isolators (Ex ia)
Operating voltage [V] 10...12 DC
Current consumption [mA] 0.5...8
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Outputs
Max. load [Ω] 200
Short-circuit protection yes
Overload protection yes
Measuring/setting range
Measuring range of vibration [g] -50...50
Frequency range [Hz] 2...10000
Measuring principle piezoelectric
Sensitivity [mV/g] 100
Noise density [mg] 0.1
Max. transverse sensitivity [%] 5
Minimum measuring time [s] 2
Number of measurement axes 1
Operating conditions
Ambient temperature [°C] -55...90
Storage temperature [°C] -55...90
Protection IP 68; (water-proof up to: 100 m 10 bar; restrictions for 1D applications: IP 65)
Tests / approvals
Approval Baseefa12ATEX0248X; IECEx BAS 12.0133 X
ATEX marking II 1G Ex ia IIC T4 Ga (-55°C < Ta < +90°C)
  II 1D Ex ia IIIC T110°C IP65 Da (-55°C < Ta < +90°C)
  II 1G Ex ia IIC T6 Ga (-55°C < Ta < +60°C)
  II 1D Ex ia IIIC T80°C IP65 Da (-55°C < Ta < +60°C)
EMC
EN 61000-6-2 2005
EN 61000-6-4 2007
Shock resistance
  5000 g
Mechanical data
Weight [g] 668.5
Type of mounting M8 x 1,25
Dimensions [mm] 30 x 25.5 x 64.7
Material housing: stainless steel
Tightening torque [Nm] 8
Accessories
Accessories (optional)
Safety barrier, ZB0633
Remarks
Pack quantity 1 pcs.
Electrical connection
  Cable: 10 m, PUR
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — EN-US — VSP01A — 24.04.2023 —
