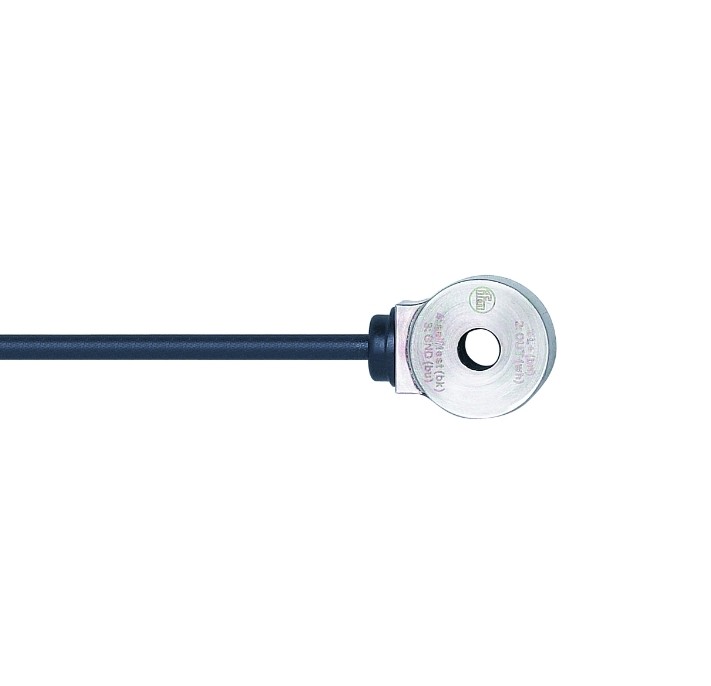

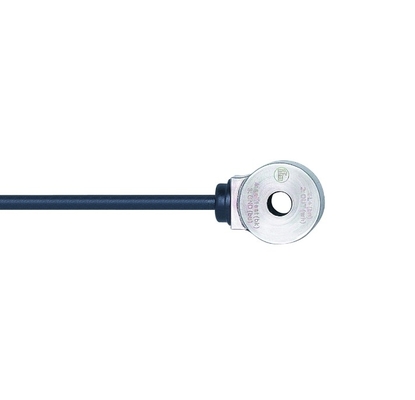

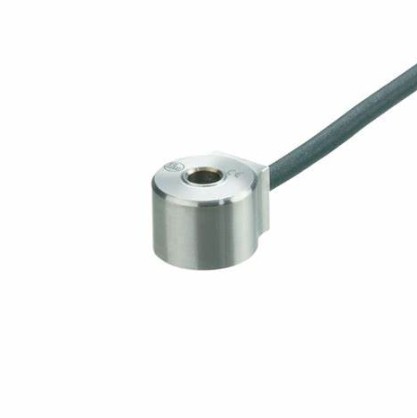

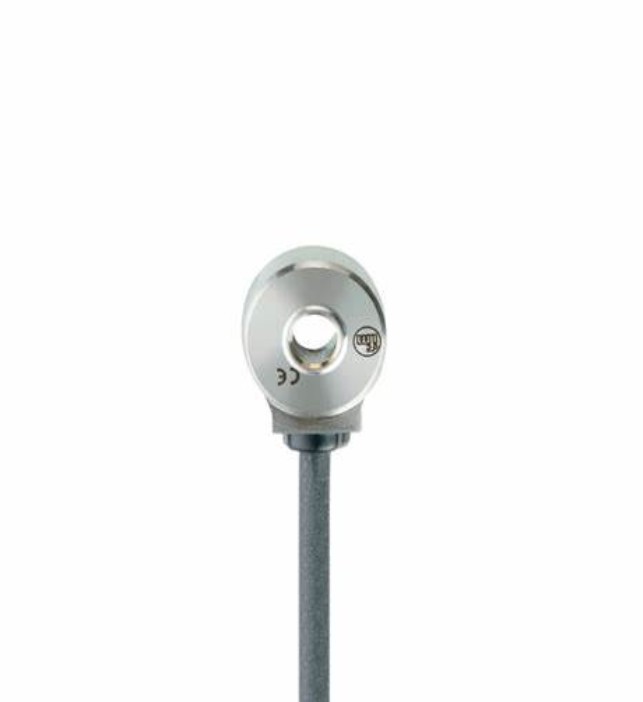

IFM VSA205 Vibration Sensor Consumption 15 mA with Capacitive Measuring Principle

  • IFM VSA205 Vibration Sensor Consumption 15 mA with Capacitive Measuring Principle
  • IFM VSA205 Vibration Sensor Consumption 15 mA with Capacitive Measuring Principle
  • IFM VSA205 Vibration Sensor Consumption 15 mA with Capacitive Measuring Principle
  • IFM VSA205 Vibration Sensor Consumption 15 mA with Capacitive Measuring Principle
Place of Origin china
Brand Name IFM
Certification CE
Model Number VSA205
Minimum Order Quantity 1
Price USD$250
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range [Hz] 1...10000 Measuring Principle Capacitive
Operating Voltage [V] 7.2...10.8 DC Current Consumption [mA] < 15
Highlight

Capacitive Measuring Principle Vibration Sensor

,

15 mA Vibration Sensor

,

IFM VSA205 Vibration Sensor
Leave a Message
Product Description
Product characteristics
Measuring range of vibration [g] -150...150
Frequency range [Hz] 1...10000
Measuring principle capacitive
Application
System screened cable; Drag chain suitability
Design for connection to external diagnostic electronics VSE
Application vibration detection
Electrical data
Operating voltage [V] 7.2...10.8 DC
Current consumption [mA] < 15
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Type of sensor Microelectromechanical system (MEMS)
Outputs
Analog current output [mA] 0...10
Max. load [Ω] 300
Measuring/setting range
Measuring range of vibration [g] -150...150
Frequency range [Hz] 1...10000
Measuring principle capacitive
Sensitivity [µA/g] 35.5
Number of measurement axes 1
Accuracy / deviations
Linearity deviation 0,2 %
Operating conditions
Ambient temperature [°C] -20...80
Storage temperature [°C] -20...80
Max. relative air humidity [%] 80; (40 °C: 50 % non condensing)
Protection IP 67
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
Shock resistance
DIN EN 60068-2-27 50 g 11 ms
Vibration resistance
DIN EN 60068-2-6 20 g / 10 ... 2000 Hz
MTTF [years] 2104
UL approval
Ta 80 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
File number UL E251902
Mechanical data
Weight [g] 309.7
Type of mounting mounting screw
Material housing: stainless steel (1.4404 / 316L)
Tightening torque [Nm] 5
Mechanische Überlastfestigkeit [g] 500
Drag chain suitability yes
Drag chain suitability
Bending radius for fixed installation : min. 4 x cable diameter
Bending radius for flexible applications : min. 15 x cable diameter
Accessories
Items supplied
head cap screw: 1 x M5 x 20, Torx 15
Remarks
Pack quantity 1 pcs.
Electrical connection
  Cable: 10 m, PUR, Ø 4 mm, screened; Maximum cable length: 250 m; drain wire applied to the housing; 4 x 0.14 mm²
