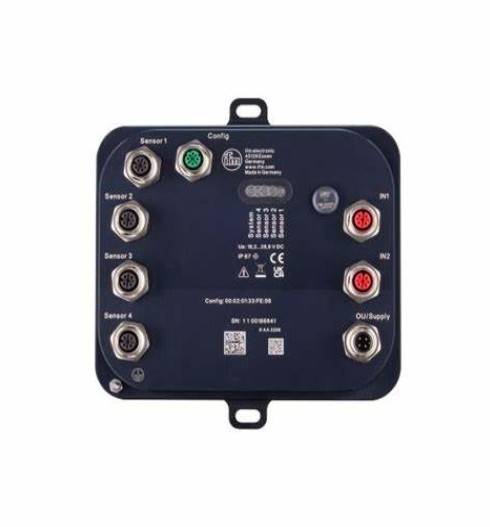

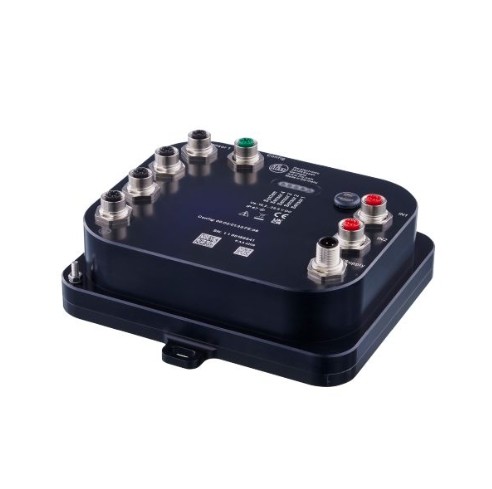

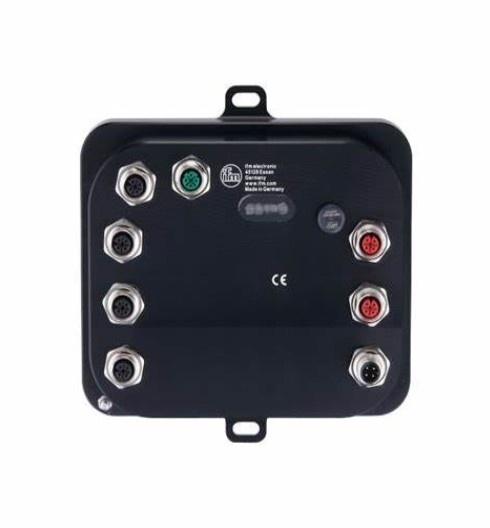

IFM Diagnostic Electronics For Vibration Sensors VSE903 Diagnostic Electronics

  • IFM Diagnostic Electronics For Vibration Sensors VSE903 Diagnostic Electronics
  • IFM Diagnostic Electronics For Vibration Sensors VSE903 Diagnostic Electronics
  • IFM Diagnostic Electronics For Vibration Sensors VSE903 Diagnostic Electronics
  • IFM Diagnostic Electronics For Vibration Sensors VSE903 Diagnostic Electronics
Place of Origin china
Brand Name IFM
Model Number VSE903
Minimum Order Quantity 1
Price USD$1100
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range [Hz] 0.1...12000 Communication Interface Ethernet
Operating Voltage Tolerance [%] 20 Protection Class III
Highlight

Vibration Sensors Diagnostic electronics

,

IFM Diagnostic electronics

,

VSE903 Diagnostic electronics
Leave a Message
Product Description
Product characteristics
Frequency range [Hz] 0.1...12000
Communication interface Ethernet
Application
Design parameter setting via PC software VES004
Application continuous vibration monitoring
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC; (when using the IEPE input 24 V + 20% IEPE = Integrated Electronics Piezo Electric)
Current consumption [mA] 200; ((24 V DC))
Protection class III
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of dynamic inputs: 4; Number of digital outputs: 2; Number of analog outputs: 1
Inputs
Total number of inputs 6
Analog input (current) [mA] 4...20
Resolution of analog input 12
Number of dynamic inputs 4
Dynamic input - signal 0...10 mA / IEPE / 4...20 mA
Dynamic input - frequency range [Hz] 0,1...12000
Dynamic input - sampling rate [kSamples] 100
Outputs
Total number of outputs 2
Output signal switching signal; analog signal
Electrical design PNP
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Number of analog outputs 1; (configurable)
Analog current output [mA] 4...20
Max. load [Ω] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Frequency range [Hz] 0.1...12000
Interfaces
Communication interface Ethernet
Protocol TCP/IP
Note on protocol
10 Mbaud
100 Mbaud
Operating conditions
Ambient temperature [°C] 0...70
Storage temperature [°C] 0...70
Max. relative air humidity [%] 90
Protection IP 67
Tests / approvals
EMC
EN IEC 61000-6-2
EN IEC 61000-6-4
MTTF [years] 92
UL approval
Ta 70 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current (Marking Class 2)
UL approval number L004
File number UL E251902
Mechanical data
Weight [g] 1296.7
Housing aluminum
Type of mounting Backplane mounting
Dimensions [mm] 175 x 172 x 66.6
Material EN AW-5083: black anodized
Data memory
History memory yes
Data memory buffered yes
Data memory type ring memory; FIFO
Real-time clock yes
Memory location internal
Memory interval min. 1 min
Memory size 881664 data records
Accessories
Accessories (optional)
cross-over Ethernet patch cable for the direct connection to the PC
Remarks
Pack quantity 1 pcs.
