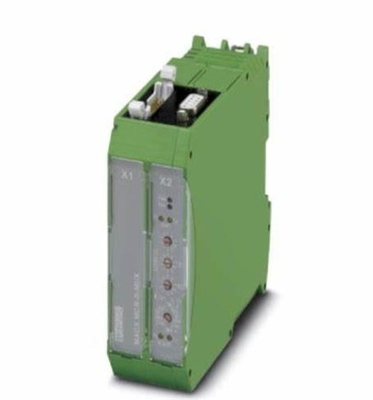

NS 35/7.5 or NS 32 Phoenix Contact 2865599 Sensor HART Multiplexer Protocol Type HART

Phoenix Contact - MACX ANALOG Series Signal Conditioning & Signal Converters MACX Analog signal conditioners provide outstanding safety for applications requiring comprehensive explosion protection and functional safety. They provide a wide range of solutions for safe, interference-free analog and digital signal processing. In addition to explosion protection for all zones and material groups, MACX Analog provides functional safety in accordance with SIL IEC/EN 61508 and PL EN ISO 13849. Benefits:

• High signal quality with safe electrical isolation and long service life thanks to low self-heating
• Significant space savings with an overall width of just 12.5 mm for single and two-channel standard functions
• Flexible supply: modular 24 V power bridging with group error messaging or wide-range input up to 230 V AC/DC
• Service-friendly connection technology with coded, pluggable terminal blocks, with optional screw or Push-in connection
• Fast signal connection with compact, robust Termination Carriers for system cabling

• Item number	2865599
  Packing unit	1 pc
  Minimum order quantity	1 pc
  Sales key	C402
  Product key	CK11ZZ
  Catalog page	Page 172 (C-5-2019)
  GTIN	4046356153898
  Weight per piece (including packing)	206.4 g
  Weight per piece (excluding packing)	206.4 g
  Customs tariff number	85176200
  Country of origin	DE

• Key Commercial Data

  Orderkey	2865599
  Packing unit	1 pc
  Catalog page	Page 166 (C-5-2017)
  GTIN	4046356153898
  Weight per Piece (excluding packing)	211.400 g
  Custom tariff number	85176200
  Country of origin	DE (Germany)



  Dimensions

  Width	35.2 mm
  Height	99 mm
  Depth	114.5 mm

  Ambient conditions

  Ambient temperature (operation)	-20 °C ... 60 °C
  Ambient temperature (storage/transport)	-40 °C ... 80 °C
  Max. permissible relative humidity (operation)	≤ 95 % (non-condensing)

  Field devices interface (HART)

  Channels	16 or 32; adjustable using a switch
  Connection method	Flat-ribbon cable, 14-pos. (inclusive)
  Signal	HART FSK
  HART specification	HART Field Communication Protocol Rev. 6.0 (downward compatible up to Rev 4.0); FSK Physical Layer Specification (Rev. 8.1)
  Data transmission display	Two yellow "Tx" and "Rx" "HART" LEDs
  Display error	Red "ERR" LED (flashes in case of an error in the HART bus)

  RS-485 interface

  Connection method	D-SUB-9 female connector
  Signal	RS-485
  Data flow control/protocols	Compatible with OPC HART server, PDM, PRM, and FDT/DTM
  Number of HART multiplexers per bus segment	Max 31
  Address setting	0...127; using a rotary switch at the front
  Data rate	9600 / 19200 / 38400 / 57600 [bps]; via rotary switch at the front
  Transmission length	≤ 1200 m
  Display	Two yellow "Tx" and "Rx" "RS-485" LEDs

  General data

  Supply voltage	24 V DC
  Supply voltage range	18 V ... 31.2 V
  Typical current consumption	55 mA
  Nominal power consumption	1.35 W
  Operating voltage display	Green "PWR" LED
  Undervoltage monitoring	Yes (no faulty devices / output states)
  Galvanic isolation of HART signal/RS-485	350 V AC
  Galvanic isolation of HART signals between each other	100 V DC (capacitive)
  Galvanic isolation of HART signal/supply	350 V AC
  Galvanic isolation of RS-485/supply	350 V AC
  Error monitoring	Processor error: The "PWR" LED flashes; error in the HART communication: the "ERR" LED flashes
  Conformance	CE-compliant
