IFM Wirable Plug EVF567 SSTGH040VASFKPG -25 - 100 Ambient Temperature Compatible

  • IFM Wirable Plug EVF567 SSTGH040VASFKPG -25 - 100 Ambient Temperature Compatible
  • IFM Wirable Plug EVF567 SSTGH040VASFKPG -25 - 100 Ambient Temperature Compatible
  • IFM Wirable Plug EVF567 SSTGH040VASFKPG -25 - 100 Ambient Temperature Compatible
  • IFM Wirable Plug EVF567 SSTGH040VASFKPG -25 - 100 Ambient Temperature Compatible
Place of Origin china
Brand Name IFM
Certification CE
Model Number EVF567
Minimum Order Quantity 1
Price USD$20
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage [V] < 250 AC / < 300 DC Protection Class II
Max. Current Load Total [A] 4; (...40 °C) Ambient Temperature [°C] -25...100
Highlight

IFM Wirable plug EVF567 SSTGH040VASFKPG

,

IFM Wirable plug EVF567

,

SSTGH040VASFKPG Wirable plug EVF567
Leave a Message
Product Description
Application
System Free from silicone; gold-plated contacts
Application sanitary and wet areas in the food industry
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4; (...40 °C)
Operating conditions
Ambient temperature [°C] -25...100
Storage temperature [°C] -25...55
Storage humidity [%] 10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 31.7
Molded-body material PA 6.6
Material nut stainless steel (1.4404 / 316L)
Sealing material EPDM
Remarks
Pack quantity 1 pcs.
Electrical connection

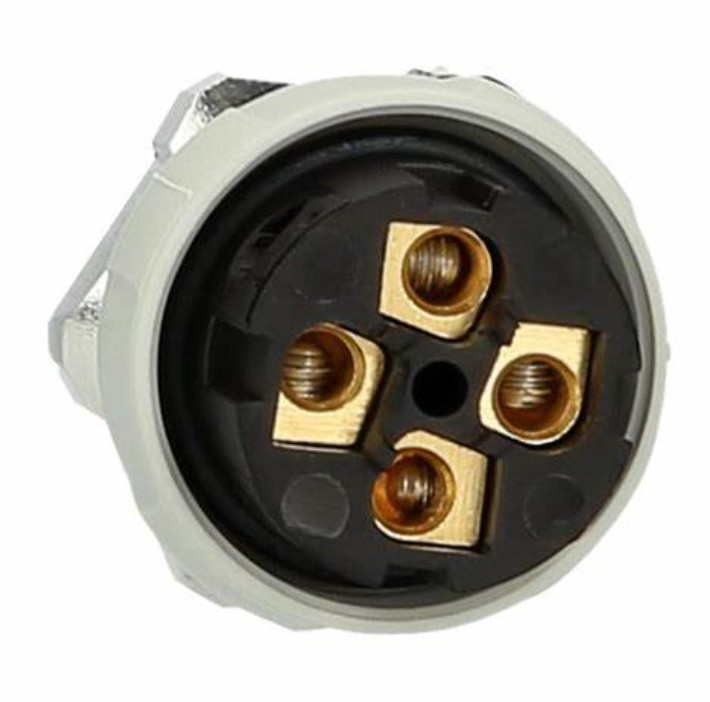

  screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17
Electrical connection - plug
Connection Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
