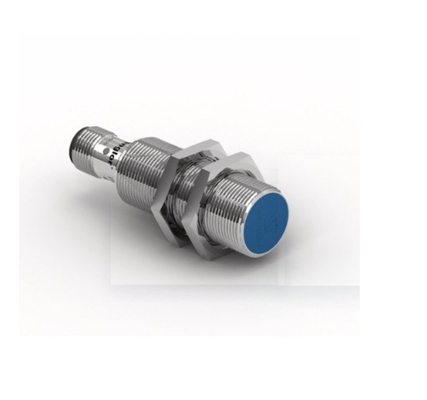

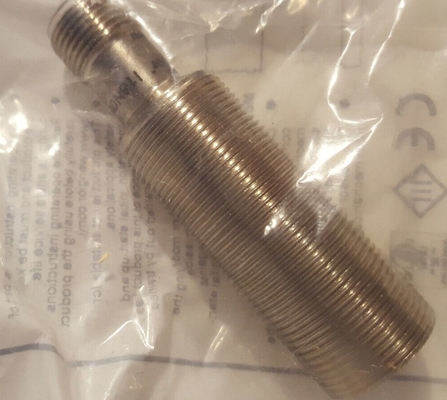

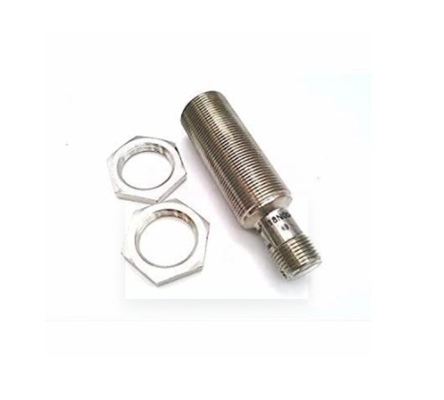

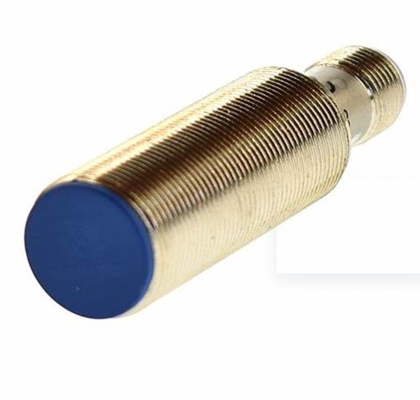

WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N

  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
  • WENGLOR I18N004 10-30 VDC, 5 MM Switching Distance, 4 PIN, INDUCTIVE Sensor, Replaces IW050BM65VA3, M12 Connection, NC+N
Place of Origin china
Brand Name WENGLOR
Certification CE
Model Number 18N004
Minimum Order Quantity 1
Price USD$15
Packaging Details carton
Delivery Time 4-6weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Switching Distance 5 Mm Mounting Flush
Mounting A/B/C/D In Mm 0/24/8/0 Mounting B1 In Mm 0..12
Leave a Message
Product Description

Inductive Data
Switching Distance 5 mm
Correction Factors Stainless Steel V2A/CuZn/Al 1,10/0,45/0,41
Mounting Flush
Mounting A/B/C/D in mm 0/24/8/0
Mounting B1 in mm 0...12
Switching Hysteresis < 10 %




Electrical Data
Supply Voltage 10 ... 30 V DC
Current Consumption (Ub = 24 V) < 12 mA
Switching Frequency 1,110 Hz
Temperature Drift < 10 %
Temperature Range -40 ... 80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III

Mechanical Data
Housing Material Brass, nickel-plated
Sensing face Plastic, PBT
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 55 g

Safety-relevant Data
MTTFd (EN ISO 13849-1) 3,706.54 a

General Data
Packaging unit 1 Piece

Function
Error Indicator yes





Output
PNP NC, PNP NO yes

Adjustable parameters
Circuit NC
NC+NO
NO
