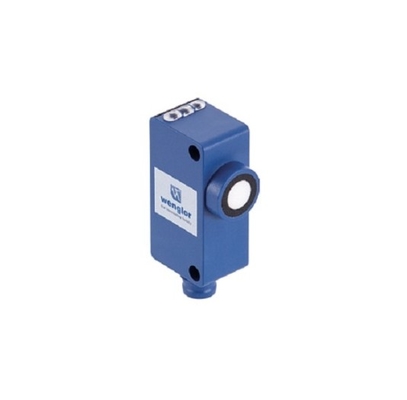

WENGLOR - U1KT001 REFLEX SENSOR, 30-400MM RANGE, 18-30VDC, 325KHZ, M8 X 1 CONNECTOR, 4PIN,IP68
| Place of Origin | china |
|---|---|
| Brand Name | WENGLOR |
| Certification | CE |
| Model Number | U1KT001 |
| Minimum Order Quantity | 1 |
| Price | USD$210 |
| Packaging Details | carton |
| Delivery Time | 4-6weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pc |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Setting Range | 30 ... 400 Mm | Reproducibility Maximum | 4 Mm |
|---|---|---|---|
| Ultrasonic Frequency | 325 KHz | Resolution | 0.5 Mm |
Product Description
Ultrasonic Data |
|
|---|---|
| Working range, reflex sensor | 30 ... 400 mm |
| Working range, through-beam sensor | 30 ... 800 mm |
| Setting Range | 30 ... 400 mm |
| Reproducibility maximum | 4 mm |
| Linearity Deviation | 4 mm |
| Resolution | 0.5 mm |
| Ultrasonic Frequency | 325 kHz |
| Opening Angle | < 12 ° |
| Service Life (T = +25 °C) | 100,000 h |
| Switching Hysteresis | 1 % * |
Electrical Data |
|
|---|---|
| Supply Voltage | 18 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching frequency, reflex sensor | 30 Hz |
| Switching frequency, through-beam sensor | 70 Hz |
| Response time, reflex sensor | 17 ms |
| Response time, through-beam sensor | 8 ms |
| Temperature Range | -30 ... 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Synchronous Mode | up to 40 sensors |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Data Storage | yes |
| Protection Class | III |
Mechanical Data |
|
|---|---|
| Setting Method | Teach-In |
| Housing Material | Plastic, PC+ABS Plastic, PC |
| Sensing face | Epoxy resin/glass bubble mixture Plastic, PC+ABS Plastic, PU |
| Degree of Protection | IP68 |
| Connection | M8 × 1; 4-pin |
| Weight | 6 g |
Safety-relevant Data |
|
|---|---|
| MTTFd (EN ISO 13849-1) | 1,106.71 a |
Output |
|
|---|---|
| PNP NO | yes |
| Programmable error output | yes |
| IO-Link | yes |
Adjustable parameters |
|
|---|---|
| Output | NPN PNP Error Output |
| Circuit | NC NC/NO NO |
| Other parameters | Filter Adjustable sonic cone Adjustable sensor mode Teach mode Through-beam mode |
