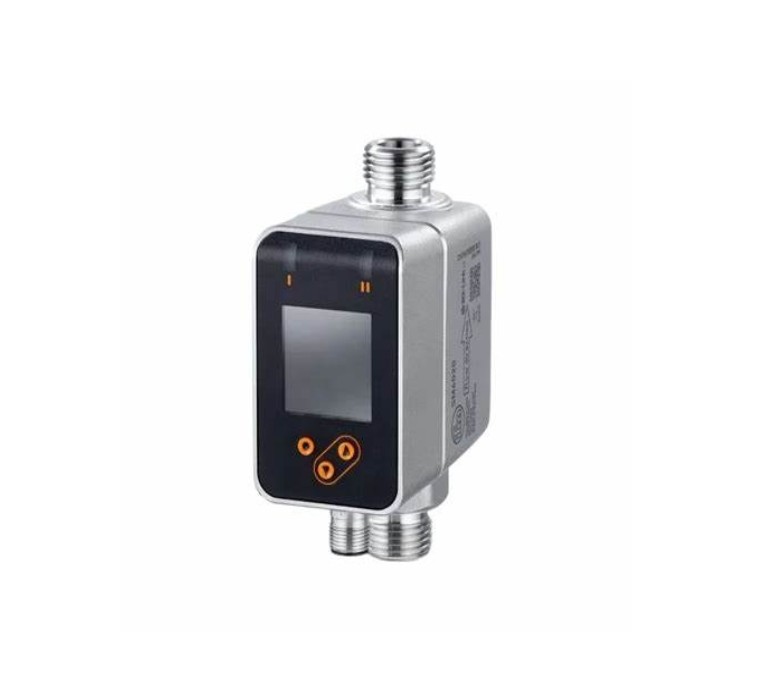

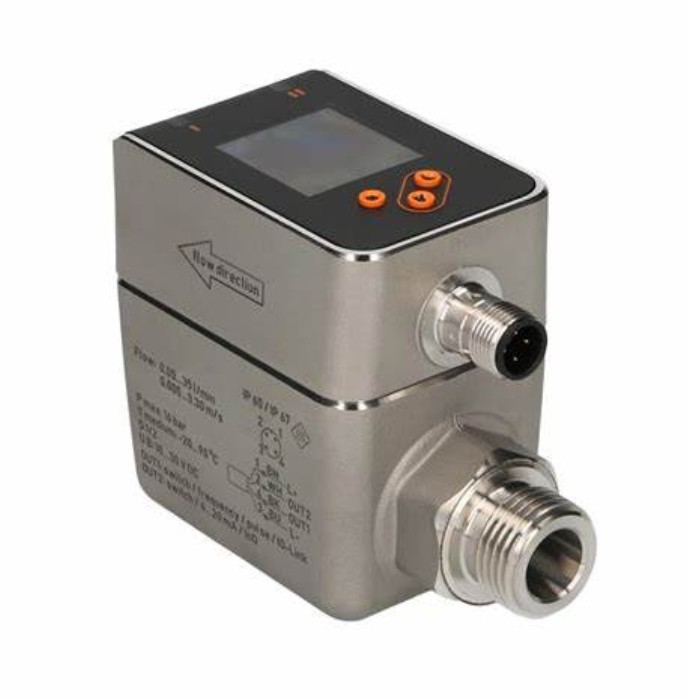

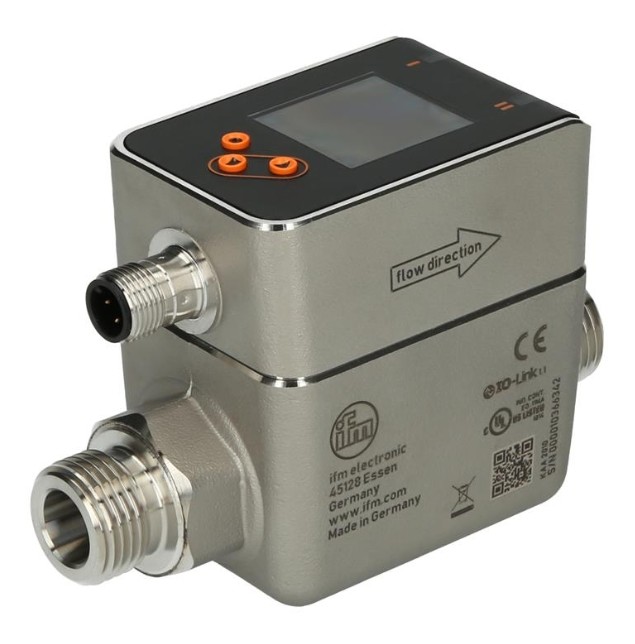

IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100

  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
  • IFM Magnetic-inductive Flow Meter SM6120 SMR12XGXFRKG/US-100
Place of Origin china
Brand Name IFM
Certification CE
Model Number SM6120
Minimum Order Quantity 1
Price USD$470
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Medium Temperature [°C] -20...90 Pressure Rating [bar] 16
Pressure Rating [MPa] 1.6 Current Consumption [mA] < 80
Highlight

Magnetic-inductive flow meter SMR12XGXFRKG/US-100

,

IFM Magnetic-inductive flow meter

,

Magnetic-inductive flow meter SM6120
Leave a Message
Product Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Measuring range
0.05...35 l/min 0.003...2.1 m³/h 0.6...555 gph 0.01...9.25 gpm
Process connection G 1/2 DN15 flat seal
Application
System gold-plated contacts
Media Conductive liquids; water; water-based media
Note on media
conductivity: ≥ 20 µS/cm
viscosity: < 70 mm²/s (40 °C)
Medium temperature [°C] -20...90
Pressure rating [bar] 16
Pressure rating [MPa] 1.6
Electrical data
Operating voltage [V] 18...30 DC; (to SELV/PELV)
Current consumption [mA] < 80
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 5
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Inputs
Inputs counter reset
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; pulse signal; IO-Link; frequency signal; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Number of analog outputs 1
Analog current output [mA] 4...20; (scalable)
Max. load [Ω] 500
Pulse output flow rate meter
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
0.05...35 l/min 0.003...2.1 m³/h 0.6...555 gph 0.01...9.25 gpm
Display range
-42...42 l/min -2.5...2.5 m³/h -666...666 gph -11.1...11.1 gpm
Resolution
0.02 l/min 0.002 m³/h 0.6 gph 0.01 gpm
Set point SP
0.25...35 l/min 0.015...2.1 m³/h 4.2...555 gph 0.07...9.25 gpm
Reset point rP
0...34.8 l/min 0...2.08 m³/h 1.2...552 gph 0.02...9.2 gpm
Analog start point ASP
0...28 l/min 0...1.7 m³/h 0...666 gph 0...7.4 gpm
Analog end point AEP
7...35 l/min 0.42...2.1 m³/h 111...555 gph 1.85...9.25 gpm
Low flow cut-off LFC
0.05...1.75 l/min 0.003...0.1 m³/h 0.6...27.6 gph 0.01...0.46 gpm
Frequency end point, FEP
7...35 l/min 0.42...2.1 m³/h 111.6...555 gph 1.86...9.25 gpm
Frequency at the end point FRP [Hz] 1...10000
Volumetric flow quantity monitoring
Pulse length [s] 0.001...2
Pulse value 0.001...99990000 I
Temperature monitoring
Measuring range [°C] -20...90
Display range [°C] -42...112
Resolution [°C] 0.1
Set point SP [°C] -19.6...90
Reset point rP [°C] -20...89.6
Analog start point [°C] -20...68
Analog end point [°C] 2...90
In steps of [°C] 0.1
