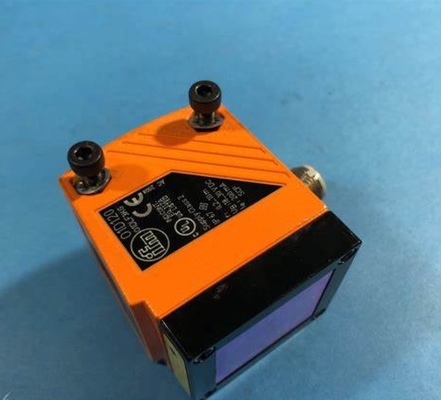

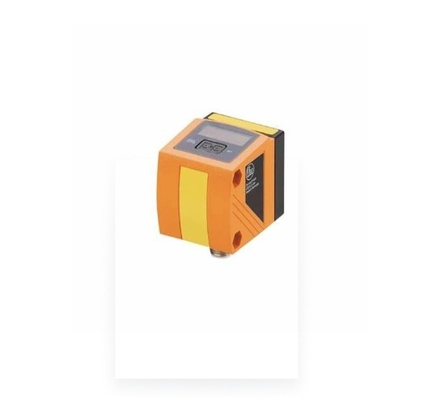

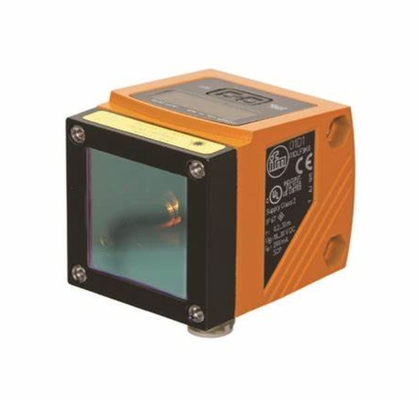

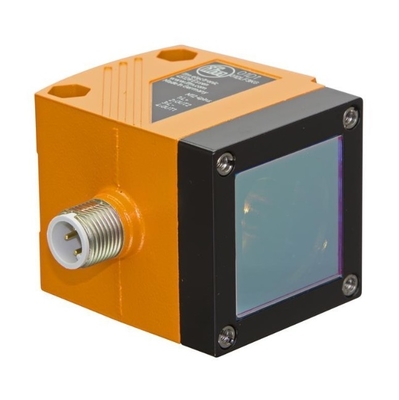

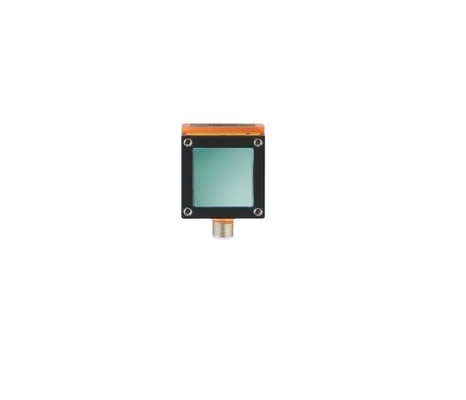

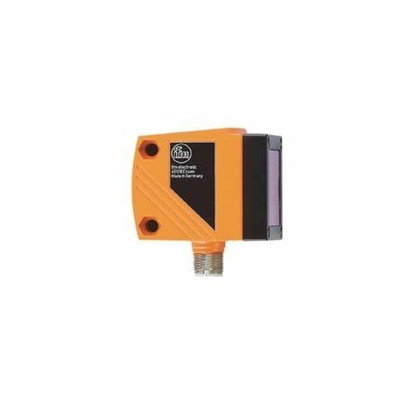

IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class

  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
  • IFM Laser Distance Sensor O1D120 O1DLF3KG/IO-LINK with 2 Laser Protection Class
Place of Origin china
Brand Name IFM
Certification CE
Model Number O1D120
Minimum Order Quantity 1
Price USD$260
Packaging Details carton
Delivery Time 3 months
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Protection Class 2 Housing Rectangular
Operating Voltage [V] 18...30 DC Protection Class III
Highlight

Laser Distance Sensor O1D120

,

O1DLF3KG/IO-LINK Laser Distance Sensor

,

2 Laser Protection Class Sensor
Leave a Message
Product Description
Laser protection class 2
Housing rectangular
Application
System Background suppression
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] < 150
Protection class III
Reverse polarity protection yes
Typ. lifetime [h] 50000
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Outputs
Total number of outputs 2
Electrical design PNP
Number of digital outputs 2
Output function normally open / closed; (programmable)
Max. current load per output [mA] 200
Number of analog outputs 1
Analog current output [mA] 4...20
Max. load [Ω] 250
Analog voltage output [V] 0...10
Min. load resistance [Ω] 5000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Max. light spot width [mm] 15
Max. light spot height [mm] 15
Light spot dimensions refer to 10 m
Background suppression available yes
Background suppression [m] 0...19
Measuring/setting range
Measuring range [m] 0.2...10; (white paper 200 x 200 mm 90 % remission)
Sampling rate [Hz] 1...50
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode yes
Required master port class A
Process data analog 2
Process data binary 3
Min. process cycle time [ms] 6
Supported DeviceIDs
Type of operation DeviceID
default 806
Operating conditions
Ambient temperature [°C] -10...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class 2
Notes on laser protection
Caution: Laser light
Power: <= 4,0 mW
Wave length: 650 nm
pulse: 1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class: 2
  EN / IEC60825-1:2007
  EN / IEC60825-1:2014
  Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
