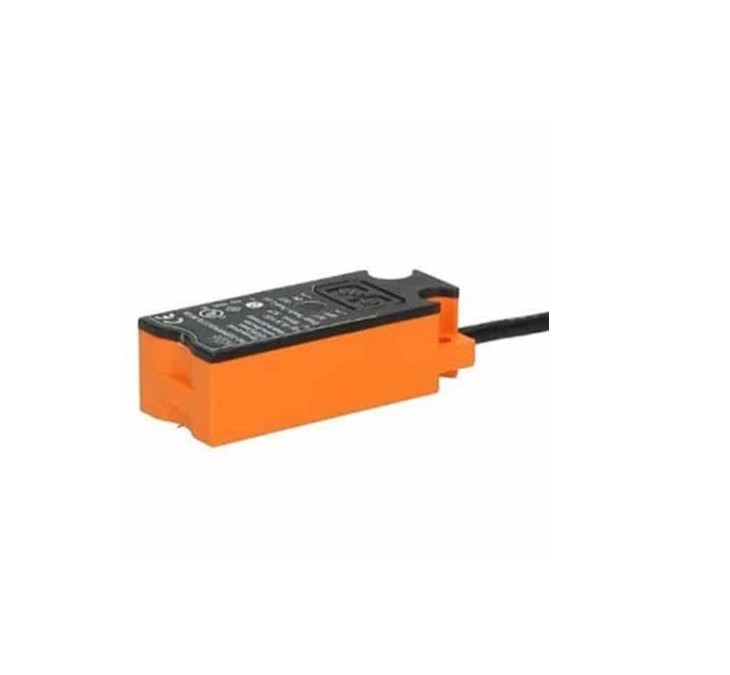

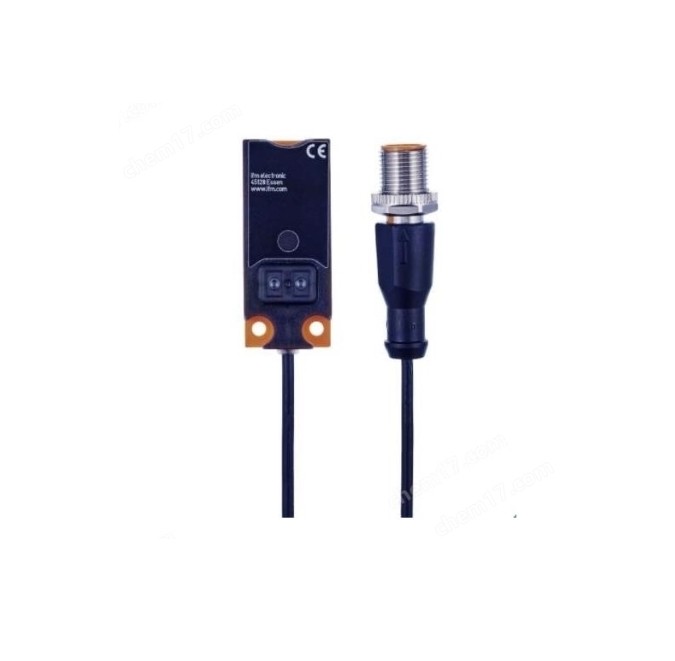

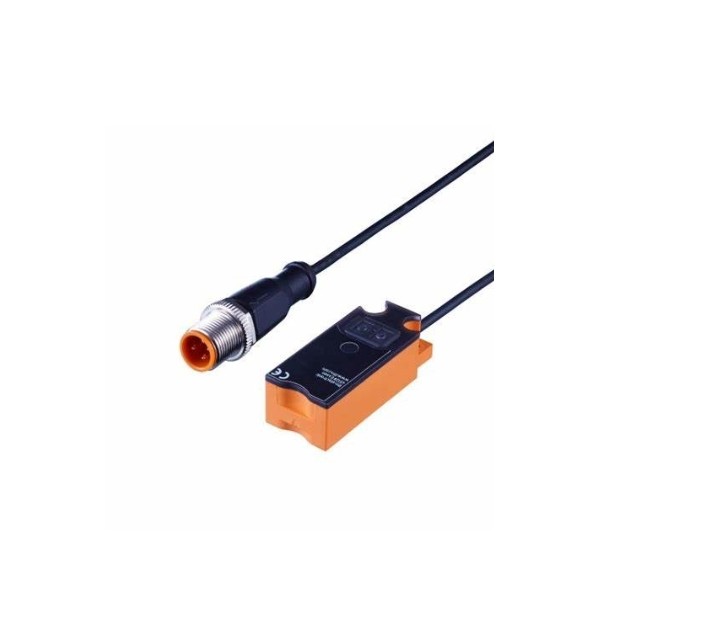

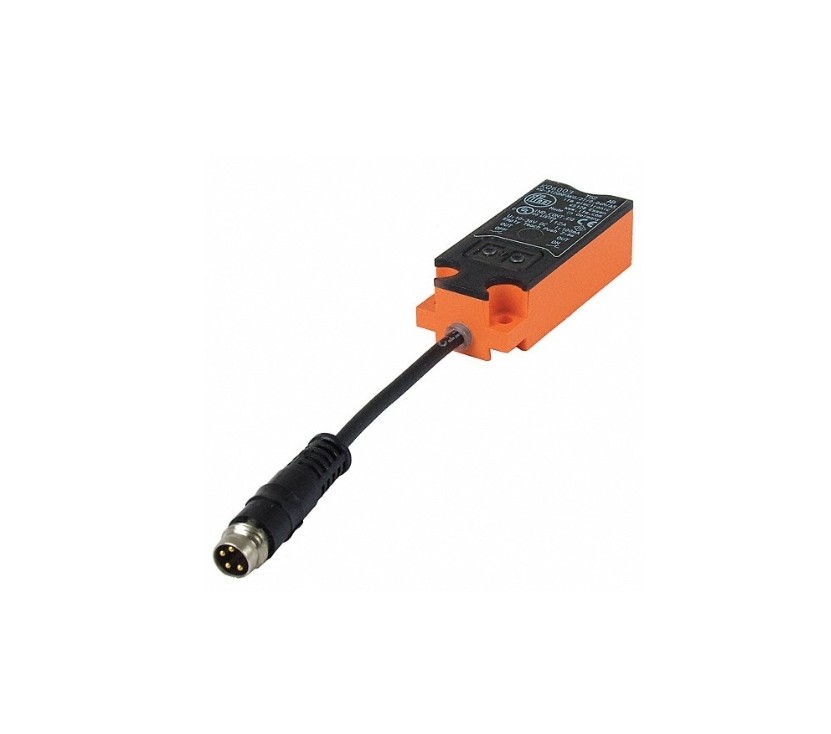

Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface

  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
  • Rectangular Housing IFM Capacitive Sensor KQ6005 with IO-Link Communication Interface
Place of Origin china
Brand Name IFM
Certification CE
Model Number KQ6005
Minimum Order Quantity 1
Price USD$70
Packaging Details carton
Delivery Time 4-6weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Sensing Range [mm] 12
Communication Interface IO-Link Housing Rectangular
Highlight

Rectangular Housing Capacitive Sensor

,

IO-Link Communication Interface Capacitive Sensor

,

IFM Capacitive Sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Sensing range [mm] 12
Communication interface IO-Link
Housing rectangular
Dimensions [mm] 20 x 14 x 48
Application
Installation detection through non-metallic container wall or on bypass pipes
Media dry bulk material; liquids
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 17
Protection class III
Reverse polarity protection yes
Measuring principle capacitive
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 12
Real sensing range Sr [mm] 12 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -20...20
Interfaces
Communication interface IO-Link
Transmission type COM1 (4,8 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
SIO mode yes
Min. process cycle time [ms] 100.8
Supported DeviceIDs
Type of operation DeviceID
default 371
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 69K
