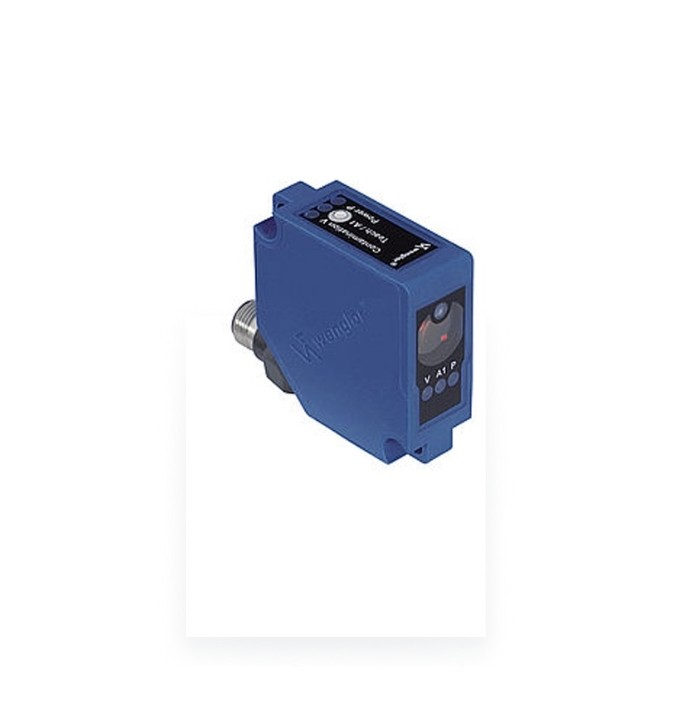

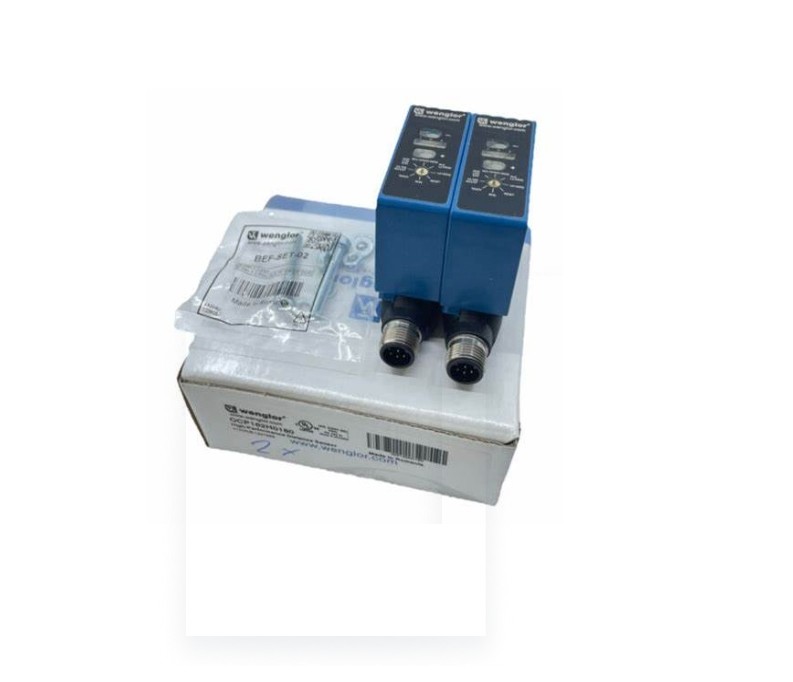

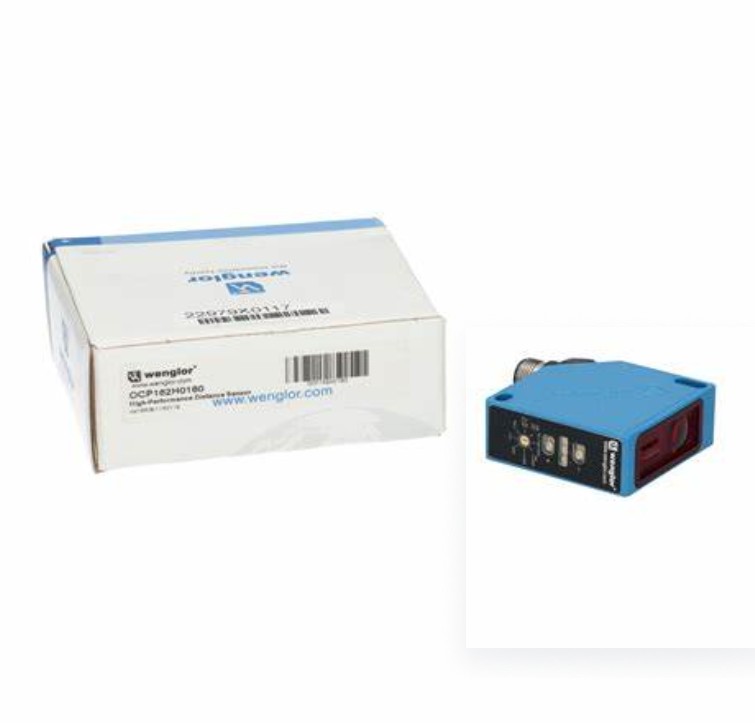

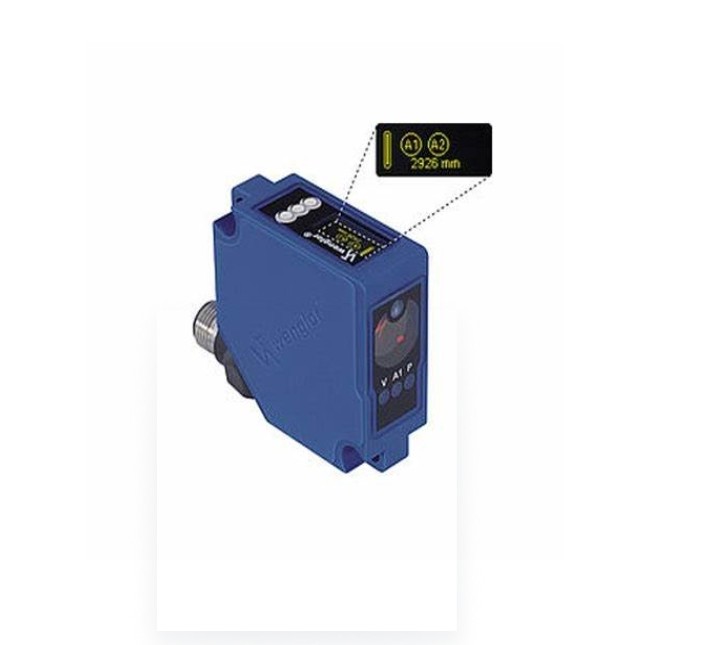

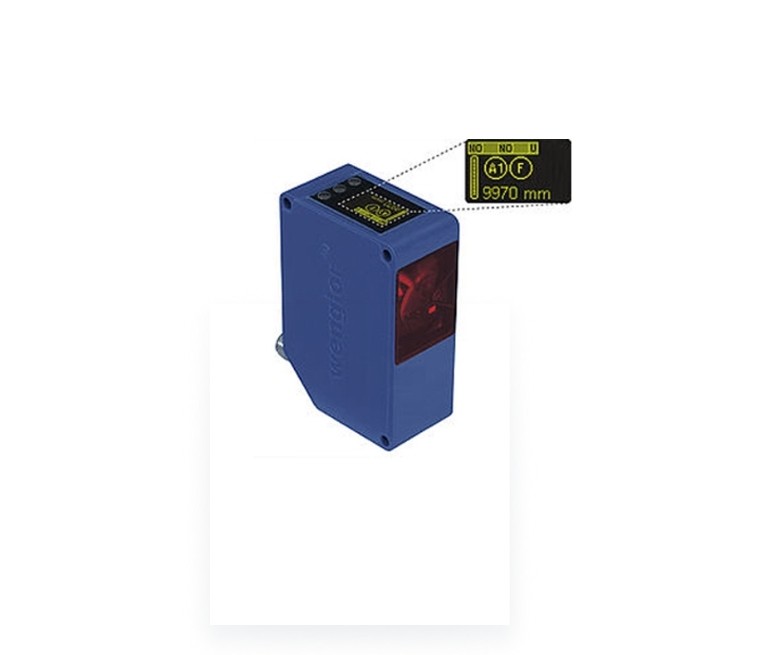

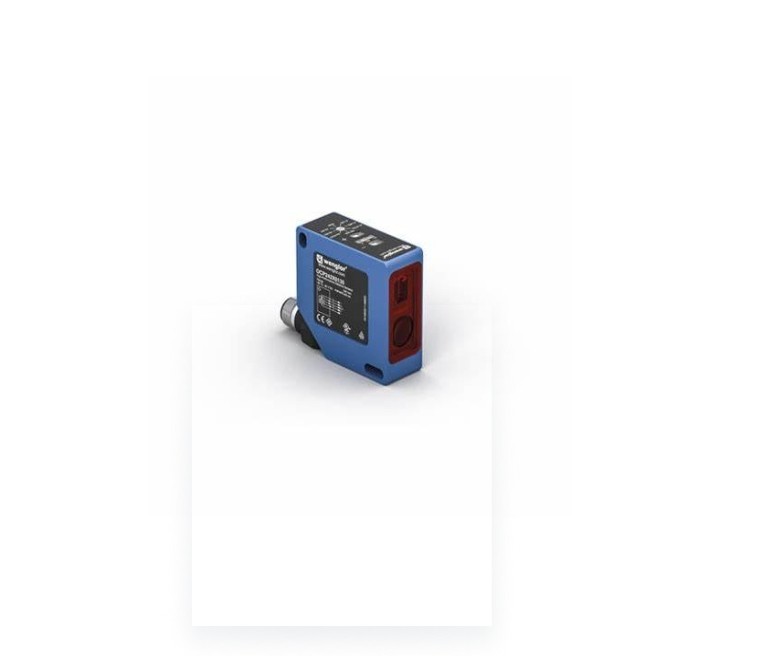

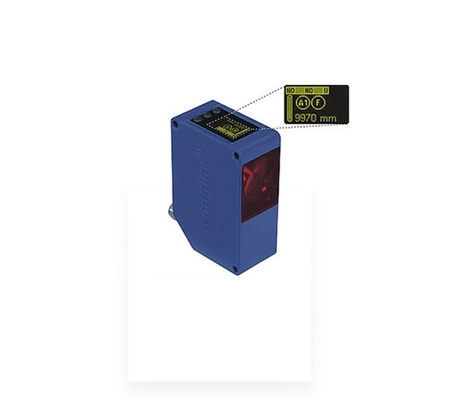

OCP162H0180 | Wenglor | High-Performance Distance Sensor

  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
  • OCP162H0180 | Wenglor | High-Performance Distance Sensor
Place of Origin china
Brand Name Wenglor
Certification CE
Model Number OCP162H0180
Minimum Order Quantity 1
Price USD$900
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Range 40 … 160 Mm Measuring Range 120 Mm
Resolution 20 µm Linearity 0.1 %
Leave a Message
Product Description

Description

Laser Distance Sensor

Features at a Glance

  • High resolution: 20 µm (resolution-mode)
  • Linearity: 0,1 % (resolution-mode)
  • Zoom function
  • Measured value independent of material, color and brightness

OPTICAL DATA
Working Range 40 … 160 mm
Measuring Range 120 mm
Resolution 20 µm
Resolution (Speed-Mode) 30 µm
Linearity 0.1 %
Linearity (Speed-Mode) 0.2 %
Linearity Deviation 120 µm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1



  • High resolution: 20 µm (resolution-mode)

  • Linearity: 0,1 % (resolution-mode)

  • Measured value independent of material, color and brightness

  • Response time: < 660 µs (speed-mode)

  • Zoom function

  • These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0...10 V (10...0 V) or current 4...20 mA (20...4 mA).

  • Optical Data

  • Working Range : 40...160 mm

  • Measuring Range : 120 mm

  • Resolution : 20 µm

  • Resolution (Speed-Mode) : 30 µm

  • Linearity : 0,1 %

  • Linearity (Speed-Mode) : 0,2 %

  • Light Source : Laser (red)

  • Wavelength : 660 nm

  • Service Life (T = +25 °C) : 100000 h

  • Laser Class (EN 60825-1) : 2

  • Max. Ambient Light : 10000 Lux

  • Light Spot Diameter : see Table 1

  • Electrical Data

  • Supply Voltage : 18...30 V DC

  • Current Consumption (Ub = 24 V) : < 80 mA

  • Measuring Rate : 1500 /s

  • Measuring Rate (Resolution-Mode) : 600 /s

  • Response Time : < 660 µs

  • Response Time (Resolution Mode) : < 1660 µs

  • Temperature Drift : < 10 µm/K

  • Temperature Range : -25...50 °C

  • Analog Output : 0...10 V/4...20 mA

  • Load Current Voltage Output : < 1 mA

  • Current Output Load Resistance : < 500 Ohm

  • Interface : RS-232

  • Baud Rate : 38400 Bd

  • Protection Class : III

  • FDA Accession Number : 0820589-000

  • Mechanical Data

  • Setting Method : Teach-In

  • Housing Material : Plastic

  • Degree of Protection : IP67

  • Connection : M12 × 1; 8-pin

  • Output

  • Error Output : yes

  • Analog Output : yes

  • RS-232 Interface : yes
