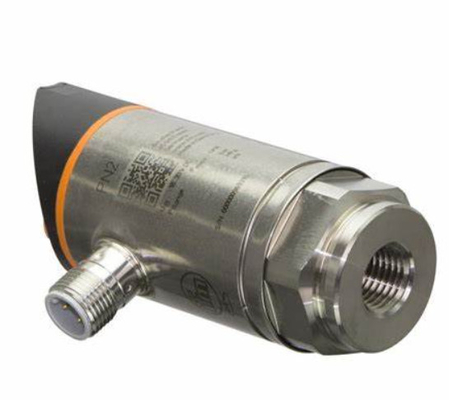

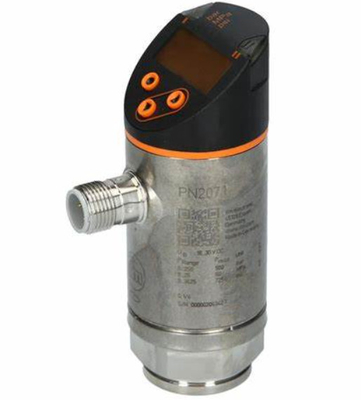

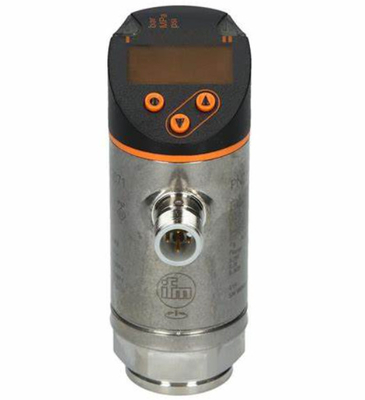

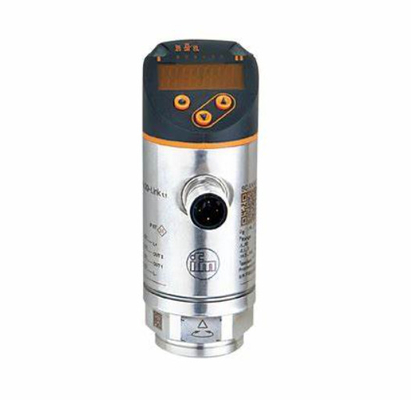

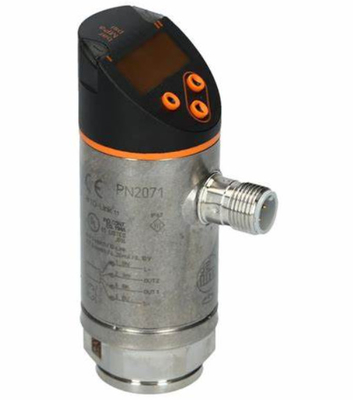

Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display

  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
  • Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display
Place of Origin -
Brand Name IFM
Certification -
Model Number PN2071
Minimum Order Quantity 1
Price USD210/PC
Packaging Details Original
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number PN2071 Type Differential Pressure Sensor
Place Of Origin Germany Brand Name Original
Theory LED Output RALAY
Shipping Method DHL\UPS\Fedex\EMS\Others Warranty 1 Year
MOQ 1 Piece
Highlight

PN2071 Electronic pressure sensor

,

PN2071 Pressure sensor
Leave a Message
Product Description
roduct characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Process connection threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2)
Application
System gold-plated contacts
Measuring element metallic thin film cell
Application for industrial applications
Media liquids and gases
Medium temperature [°C] -25...80
Min. bursting pressure
1200 bar 17400 psi 120 MPa
Pressure rating
500 bar 7250 psi 50 MPa
Vacuum resistance [mbar] -1000
Type of pressure relative pressure
Electrical data
Operating voltage [V] 18...30 DC; (to SELV/PELV)
Current consumption [mA] < 35
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 0.3
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] < 500
Number of analog outputs 1
Analog current output [mA] 4...20; (scalable 1:5)
Max. load [Ω] 500
Analog voltage output [V] 0...10; (scalable 1:5)
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Analog start point
0...200 bar 0...2900 psi 0...20 MPa
Analog end point
50...250 bar 725...3625 psi 5...25 MPa
Factory setting / CMPT = 2
Set point SP
1.5...250 bar 25...3625 psi 0.15...25 MPa
Reset point rP
0.5...249 bar 10...3610 psi 0.05...24.9 MPa
Min. difference between SP and rP
1.5 bar 15 psi 0.15 MPa
In steps of
0.5 bar 5 psi 0.05 MPa
Status_B High Resolution / CMPT = 3
Set point SP
1.6...250 bar 23...3626 psi 0.16...25 MPa
Reset point rP
0.5...249 bar 8...3611 psi 0.05...24.9 MPa
Min. difference between SP and rP
1.1 bar 15 psi 0.11 MPa
In steps of
0.1 bar 1 psi 0.01 MPa
Accuracy / deviations
Switch point accuracy [% of the span] < ± 0,4; (Turn down 1:1)
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span] < ± 0,1; (Turn down 1:1)
Long-term stability [% of the span] < ± 0,05; (Turn down 1:1; per 6 months)
Temperature coefficient zero point [% of the span / 10 K] 0,2; (-25...80 °C)
Temperature coefficient span [% of the span / 10 K] 0,2; (-25...80 °C)
Notes on the accuracy / deviation switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1%
Reaction times
Response time [ms] < 1.5
Delay time programmable dS, dr [s] 0...50
Damping process value dAP [s] 0...4
Damping for the analog output dAA [s] 0...4
Max. response time analog output [ms] 3
Software / programming
Parameter setting options hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
SIO mode yes
Required master port class A; (when pin 2 not connected: B)
Supported DeviceIDs
Type of operation DeviceID
Factory setting / CMPT = 2 460
Status_B High Resolution / CMPT = 3 639
Note
For further information please see the IODD PDF file at "Downloads"
Factory setting / CMPT = 2
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms] 2.3
IO-Link resolution pressure [bar] 0.1
IO-Link process data (cyclical)
Function bit length
pressure 14
binary switching information 2
IO-Link functions (acyclical) application specific tag
Status_B High Resolution / CMPT = 3
Profiles Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms] 3
IO-Link resolution pressure [bar] 0.1
IO-Link process data (cyclical)
Function bit length
pressure 16
device status 4
binary switching information 2
IO-Link functions (acyclical) application specific tag
Operating conditions
Ambient temperature [°C] -25...80
Storage temperature [°C] -40...100
Protection IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 129
UL approval
UL approval number J014
Pressure equipment directive sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g] 234.5
Housing tubular
Dimensions [mm] Ø 34 / L = 90.7
Material stainless steel (630/1.4542/17-4 PH); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts) stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles 100 million
Tightening torque [Nm] 25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating)
Process connection threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2)
Restrictor element integrated no (can be retrofitted)
Displays / operating elements
Display
Display unit 3 x LED, green (bar, psi, MPa)
Switching status 2 x LED, yellow
Measured values alphanumeric display, red/green 4-digit
Remarks
Pack quantity 1 pcs.
Electrical connection



Connection Connec roduct characteristics Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1 Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Process connection threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2) Application System gold-plated contacts Measuring element metallic thin film cell Application for industrial applications Media liquids and gases Medium temperature [°C] -25...80 Min. bursting pressure
1200 bar 17400 psi 120 MPa
Pressure rating
500 bar 7250 psi 50 MPa
Vacuum resistance [mbar] -1000 Type of pressure relative pressure Electrical data Operating voltage [V] 18...30 DC; (to SELV/PELV) Current consumption [mA] < 35 Min. insulation resistance [MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Power-on delay time [s] 0.3 Integrated watchdog yes Inputs / outputs Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1 Outputs Total number of outputs 2 Output signal switching signal; analog signal; IO-Link; (configurable) Electrical design PNP/NPN Number of digital outputs 2 Output function normally open / closed; (configurable) Max. voltage drop switching output DC [V] 2 Permanent current rating of switching output DC [mA] 250 Switching frequency DC [Hz] < 500 Number of analog outputs 1 Analog current output [mA] 4...20; (scalable 1:5) Max. load [Ω] 500 Analog voltage output [V] 0...10; (scalable 1:5) Min. load resistance [Ω] 2000 Short-circuit protection yes Type of short-circuit protection yes (non-latching) Overload protection yes Measuring/setting range Measuring range
0...250 bar 0...3625 psi 0...25 MPa
Analog start point
0...200 bar 0...2900 psi 0...20 MPa
Analog end point
50...250 bar 725...3625 psi 5...25 MPa
Factory setting / CMPT = 2 Set point SP
1.5...250 bar 25...3625 psi 0.15...25 MPa
Reset point rP
0.5...249 bar 10...3610 psi 0.05...24.9 MPa
Min. difference between SP and rP
1.5 bar 15 psi 0.15 MPa
In steps of
0.5 bar 5 psi 0.05 MPa
Status_B High Resolution / CMPT = 3 Set point SP
1.6...250 bar 23...3626 psi 0.16...25 MPa
Reset point rP
0.5...249 bar 8...3611 psi 0.05...24.9 MPa
Min. difference between SP and rP
1.1 bar 15 psi 0.11 MPa
In steps of
0.1 bar 1 psi 0.01 MPa
Accuracy / deviations Switch point accuracy [% of the span] < ± 0,4; (Turn down 1:1) Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) Characteristics deviation [% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) Hysteresis deviation [% of the span] < ± 0,1; (Turn down 1:1) Long-term stability [% of the span] < ± 0,05; (Turn down 1:1; per 6 months) Temperature coefficient zero point [% of the span / 10 K] 0,2; (-25...80 °C) Temperature coefficient span [% of the span / 10 K] 0,2; (-25...80 °C) Notes on the accuracy / deviation switch point accuracy, linearity error under DNV GL: < ± 1%: < ± 1% Reaction times Response time [ms] < 1.5 Delay time programmable dS, dr [s] 0...50 Damping process value dAP [s] 0...4 Damping for the analog output dAA [s] 0...4 Max. response time analog output [ms] 3 Software / programming Parameter setting options hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output Interfaces Communication interface IO-Link Transmission type COM2 (38,4 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 SIO mode yes Required master port class A; (when pin 2 not connected: B) Supported DeviceIDs
Type of operation DeviceID
Factory setting / CMPT = 2 460
Status_B High Resolution / CMPT = 3 639
Note
For further information please see the IODD PDF file at "Downloads"
Factory setting / CMPT = 2 Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis Min. process cycle time [ms] 2.3 IO-Link resolution pressure [bar] 0.1 IO-Link process data (cyclical)
Function bit length
pressure 14
binary switching information 2
IO-Link functions (acyclical) application specific tag Status_B High Resolution / CMPT = 3 Profiles Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) Min. process cycle time [ms] 3 IO-Link resolution pressure [bar] 0.1 IO-Link process data (cyclical)
Function bit length
pressure 16
device status 4
binary switching information 2
IO-Link functions (acyclical) application specific tag Operating conditions Ambient temperature [°C] -25...80 Storage temperature [°C] -40...100 Protection IP 65; IP 67 Tests / approvals EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 129 UL approval
UL approval number J014
Pressure equipment directive sound engineering practice; can be used for group 2 fluids; group 1 fluids on request Mechanical data Weight [g] 234.5 Housing tubular Dimensions [mm] Ø 34 / L = 90.7 Material stainless steel (630/1.4542/17-4 PH); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC Materials (wetted parts) stainless steel (630/1.4542/17-4 PH) Min. pressure cycles 100 million Tightening torque [Nm] 25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating) Process connection threaded connection G 1/4 Internal thread (DIN EN ISO 1179-2) Restrictor element integrated no (can be retrofitted) Displays / operating elements Display
Display unit 3 x LED, green (bar, psi, MPa)
Switching status 2 x LED, yellow
Measured values alphanumeric display, red/green 4-digit
Remarks Pack quantity 1 pcs. Electrical connection Connection ConnecHot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display 0Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display 1Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display 2Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display 3Hot Sale PN2071 IFM G 1/4 Internal Thread 0-250 Bar Electronic Pressure Sensor PN2071 Pressure Sensor With Display 4
