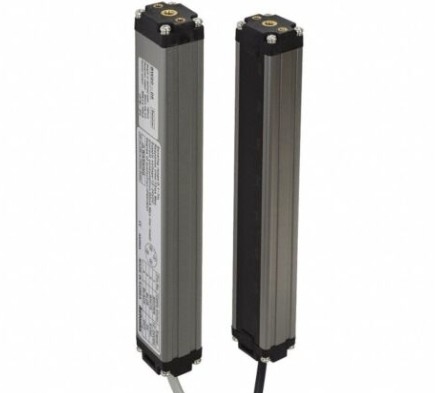

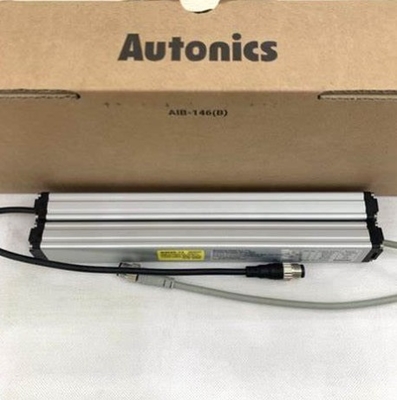

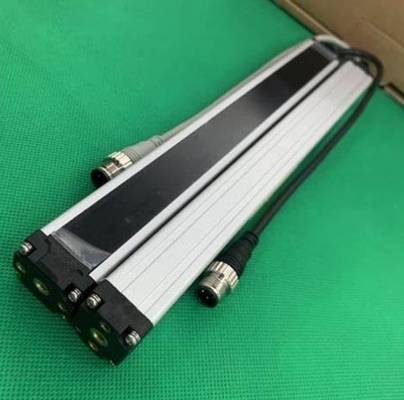

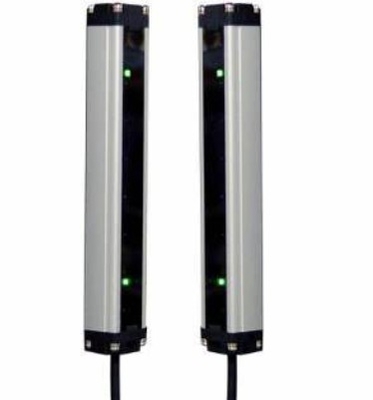

NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length

  • NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length
  • NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length
  • NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length
  • NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length
Place of Origin china
Brand Name AUTONICS
Certification CE
Model Number BW40-12
Minimum Order Quantity 1
Price USD$160
Packaging Details carton
Delivery Time 2-3weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensing Distance 0.1 To 7m Optical Axis Pitch 40mm
Number Of Optical Axes 12 Sensing Height/Total Length 440/480mm
Highlight

AUTONICS BW40-12 Sensor

,

40mm Optical Axis Pitch Sensor

,

440/480mm Sensing Height Sensor
Leave a Message
Product Description
Sensing type Through-beam type(direct beam)
Sensing distance 0.1 to 7m
Light source Infrared LED(850nm modulated)
Optical axis pitch 40mm
Number of optical axes 12
Sensing height/Total length 440/480mm
Power supply 12-24VDC NPN Open Collector Output AUTONICS BW40-12 Sensor 40mm Optical Axis Pitch 440/480mm Sensing Height Total Length 0 ±10%(ripple P-P: max. 10%)
Control output PNP open collector
Operation mode Light ON
Environment_Ambient illumination Ambient light: Max. 10,000lx(receiver illumination)
Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃
Connection type Cable connector type(Ø5, 300mm, M12)
Protection structure IP65
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Min. sensing target Opaque material of min. Ø50mm
Response time Max. 10ms
Material • Case: Aluminum, • Front cover, sensing part: Acrylic
Cable specification Ø5mm, 4-wire, 300mm, M12 connector
Accessories Bracket A: 4, Bracket B: 4, Fixing bolt: 8
Weight BW40-24: Approx. 2.1kg(approx. 1.4kg)
