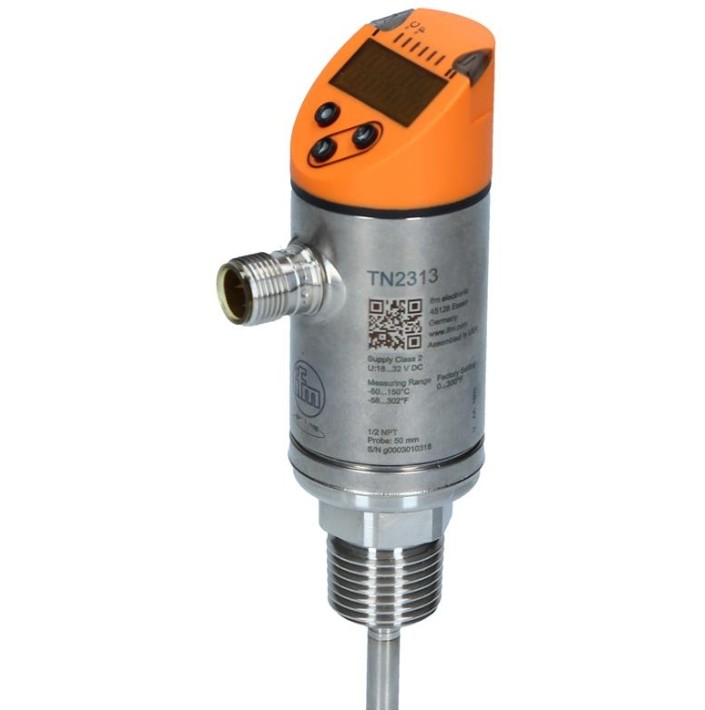

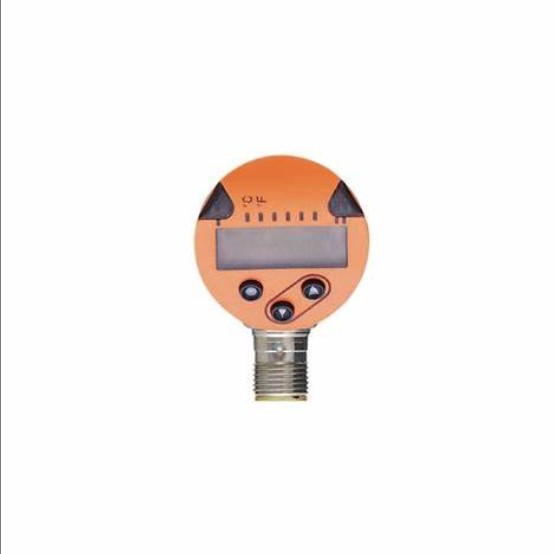

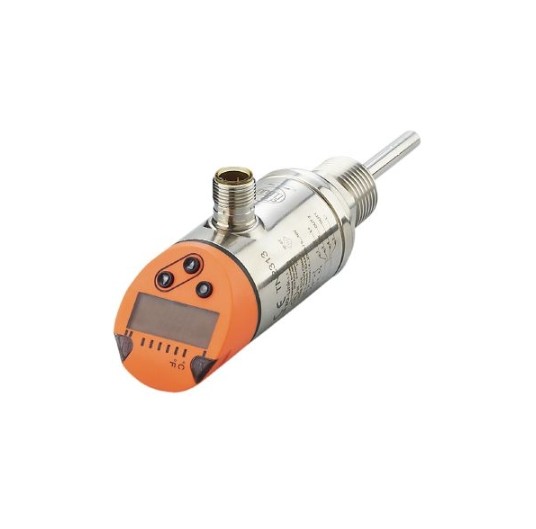

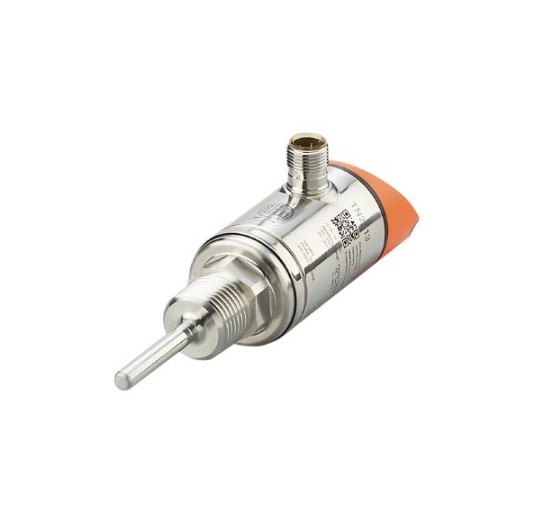

IFM Temperature Sensor With Display TN2313 TN-050KLBN12-MFRKG/US

  • IFM Temperature Sensor With Display TN2313 TN-050KLBN12-MFRKG/US
  • IFM Temperature Sensor With Display TN2313 TN-050KLBN12-MFRKG/US
  • IFM Temperature Sensor With Display TN2313 TN-050KLBN12-MFRKG/US
  • IFM Temperature Sensor With Display TN2313 TN-050KLBN12-MFRKG/US
Place of Origin china
Brand Name IFM
Certification CE
Model Number TN2313
Minimum Order Quantity 1
Price USD$100
Packaging Details carton
Delivery Time 4-6weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range -50...150 °C Installation Length EL[mm] 50
Pressure Rating[bar] 300 Current Consumption[mA] < 50
Highlight

IFM Temperature sensor with display

,

US Temperature sensor with display

,

TN2313 Temperature sensor with display
Leave a Message
Product Description

Application

System gold-plated contacts
Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
Media liquids and gases
Pressure rating[bar] 300
Operating voltage[V] 18...32 DC; (cULus - Class 2 source required)
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 1
Integrated watchdog yes



otal number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 500
Analog voltage output[V] 0...10
Min. load resistance[Ω] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
