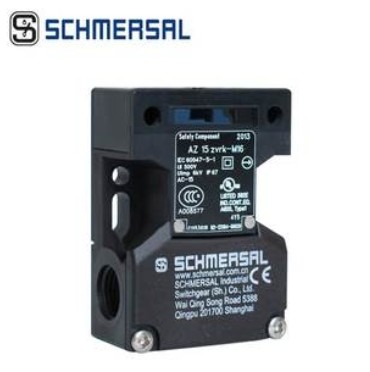

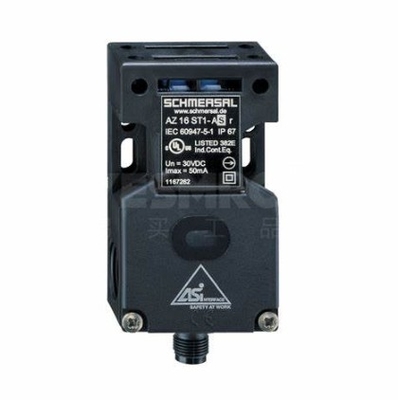

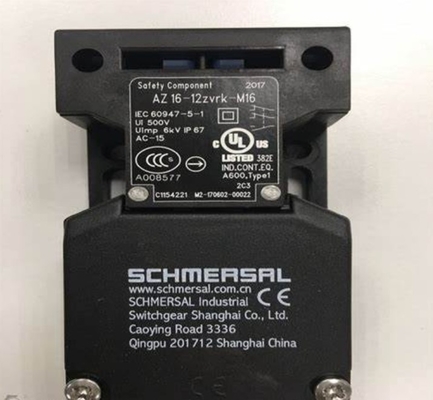

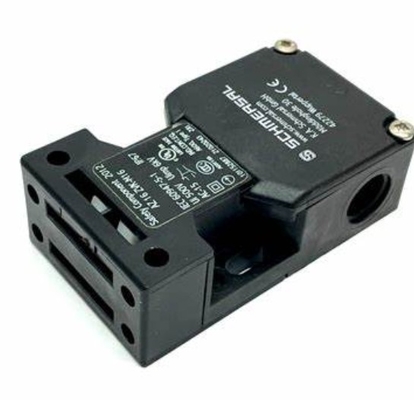

Schmersal AZ16 AZ16 ZVK-M16 Safety Interlock Switch 1NC/1NO Keyed Glass Fibre Reinforced Thermoplastic Gross Weight 115 G
| Place of Origin | china |
|---|---|
| Brand Name | Schmersal |
| Certification | CE |
| Model Number | AZ16 ZVK-M16 |
| Minimum Order Quantity | 1 |
| Price | USD$23 |
| Packaging Details | carton |
| Delivery Time | 4-6weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gross Weight | 115 G | Latching Force | 30 N |
|---|---|---|---|
| Positive Break Travel | 8 Mm | Actuating Speed, Maximum | 2 M/s |
| Highlight | 1NC/1NO Safety Interlock Switch,Schmersal Safety Interlock Switch,Glass Fibre Reinforced Safety Interlock Switch |
||
Product Description
General data - Features
| Number of actuating directions | 3 |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 1 |
| Number of cable glands | 3 |
| Safety classification |
| Standards | EN ISO 13849-1 |
| Performance Level, up to | c |
| Category | 1 |
| B10D Normally-closed contact (NC) | 2,000,000 Operations |
| Note | Electrical life on request. |
| B10D Normally-open contact (NO) | 1,000,000 Operations |
| Note | at 10% Ie and ohmic load |
| Mission time | 20 Year(s) |
| Safety classification - Fault exclusion |
| Please note: | Can be used when fault exclusion for dangerous damage to the 1-channel mechanism is permissible and sufficient protection against manipulation is guaranteed. |
| Performance Level, up to | d |
| Category | 3 |
| Note | for 2-channel use and with suitable logic unit. |
| Mission time | 20 Year(s) |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
| Latching force | 30 N |
| Positive break travel | 8 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 10 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M6 |
Mechanical data - Connection technique
| Cable entry | 3 x M16 x 1,5 |
| Termination | Screw terminals |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 2.5 mm² |
| Note | All indications including the conductor ferrules. |
| Allowed type of cable |
solid single-wire solid multi-wire flexible |
Mechanical data - Dimensions
| Length of sensor | 30 mm |
| Width of sensor | 52 mm |
| Height of sensor | 90 mm |
Ambient conditions
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +80 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Ambient conditions - Insulation values
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical data
| Thermal test current | 10 A |
| Required rated short-circuit current | 1,000 A |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 4,000 /h |
| Material of the contacts, electrical | Silver |
Electrical data - Safety contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 4 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 4 A |
Electrical data - Auxiliary contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 4 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 4 A |
