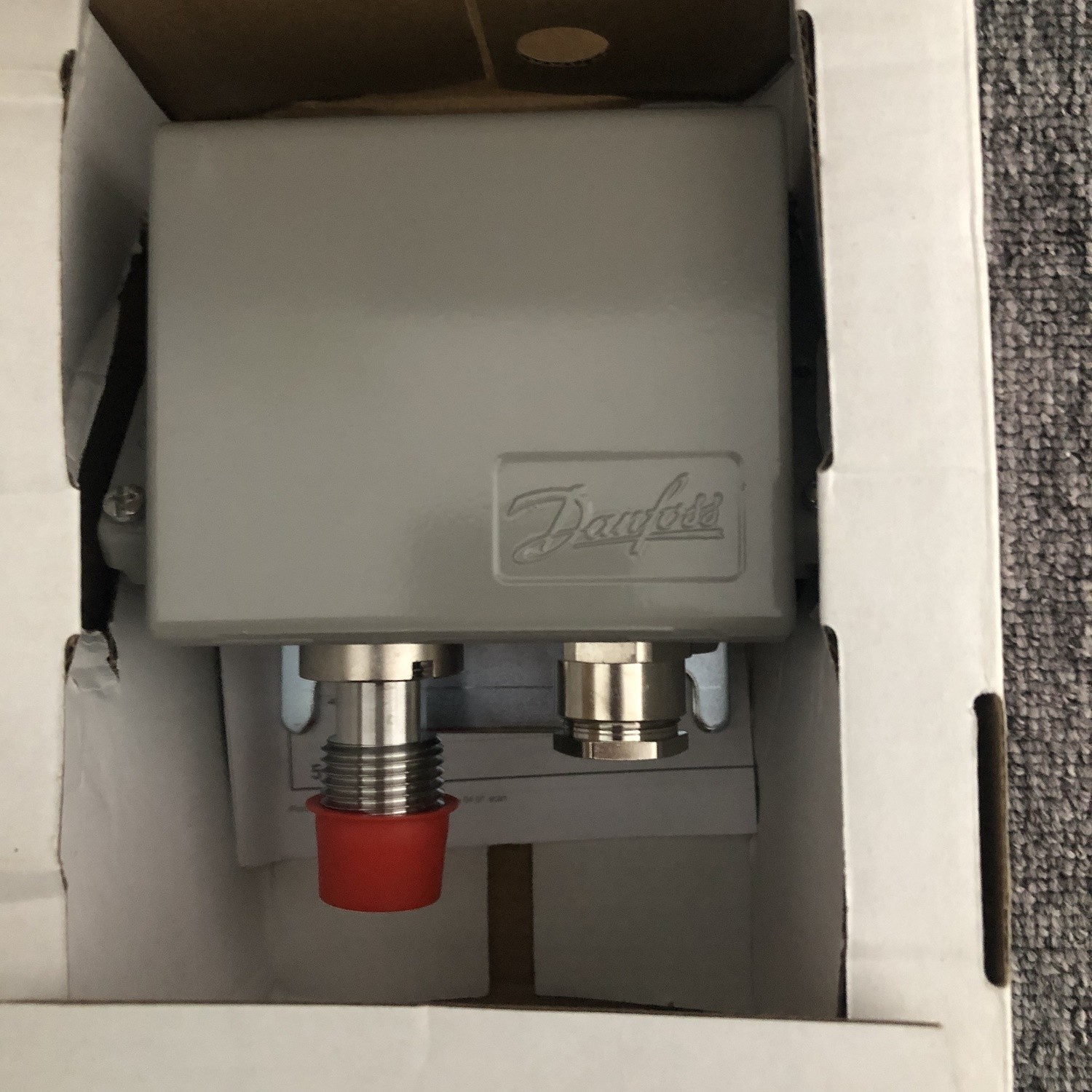

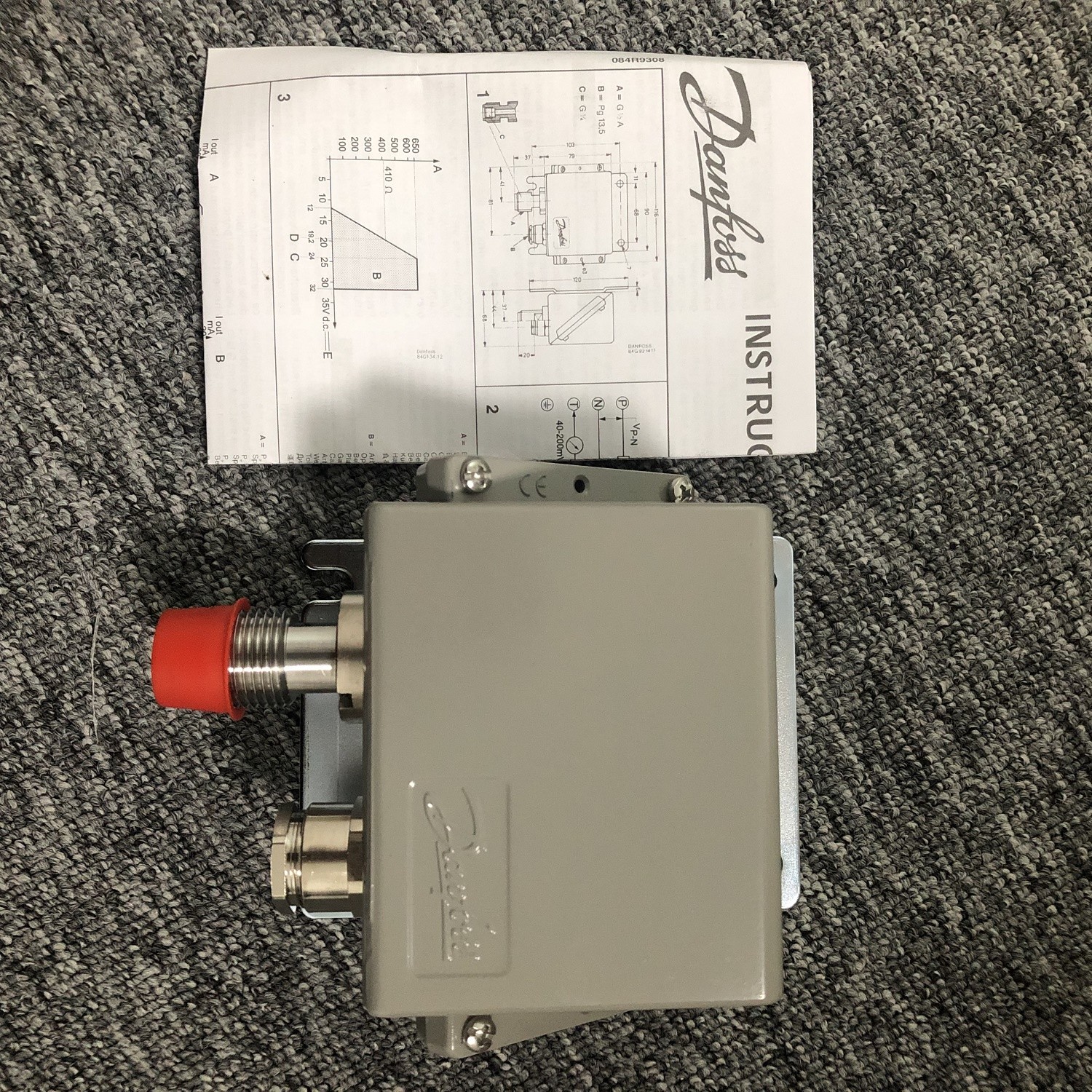

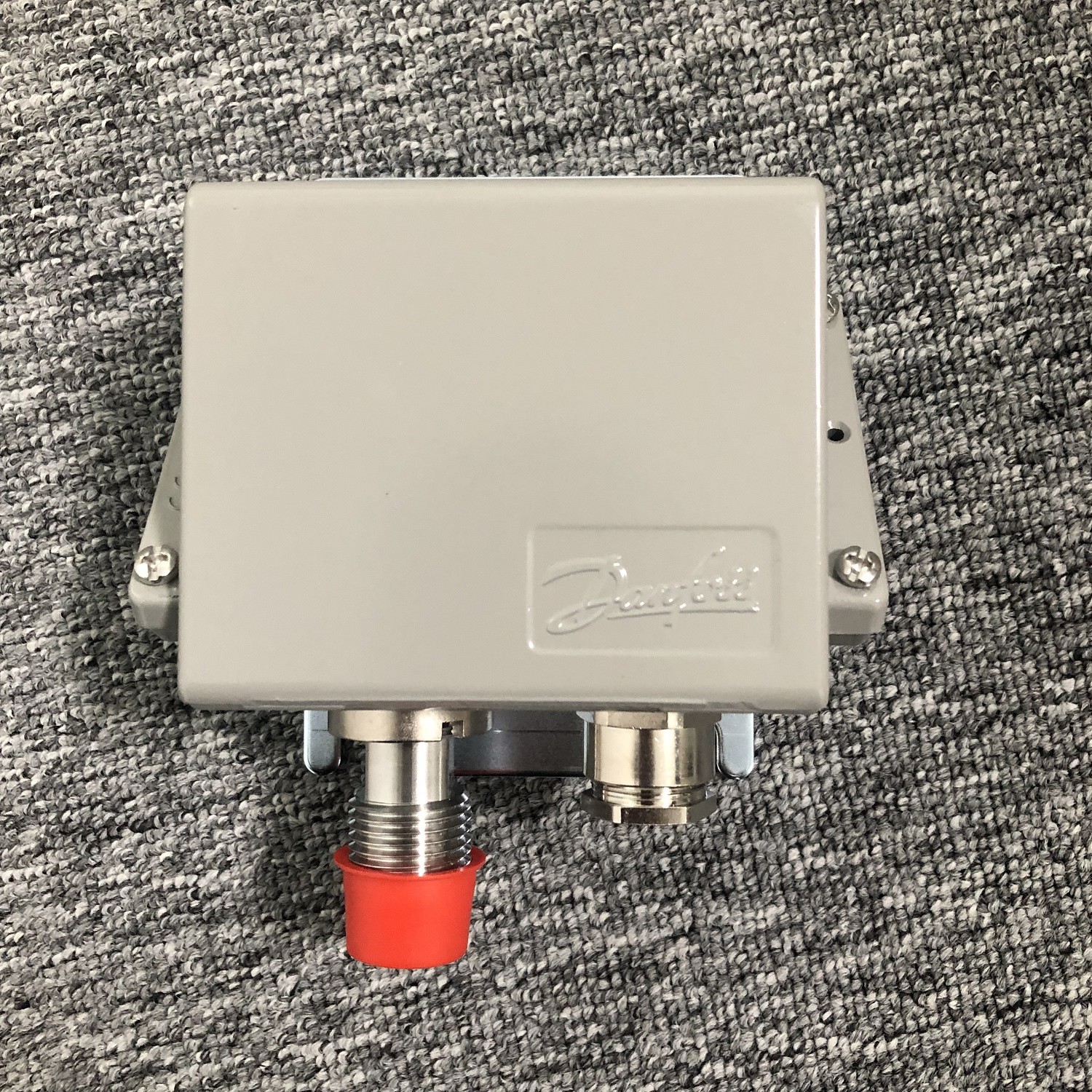

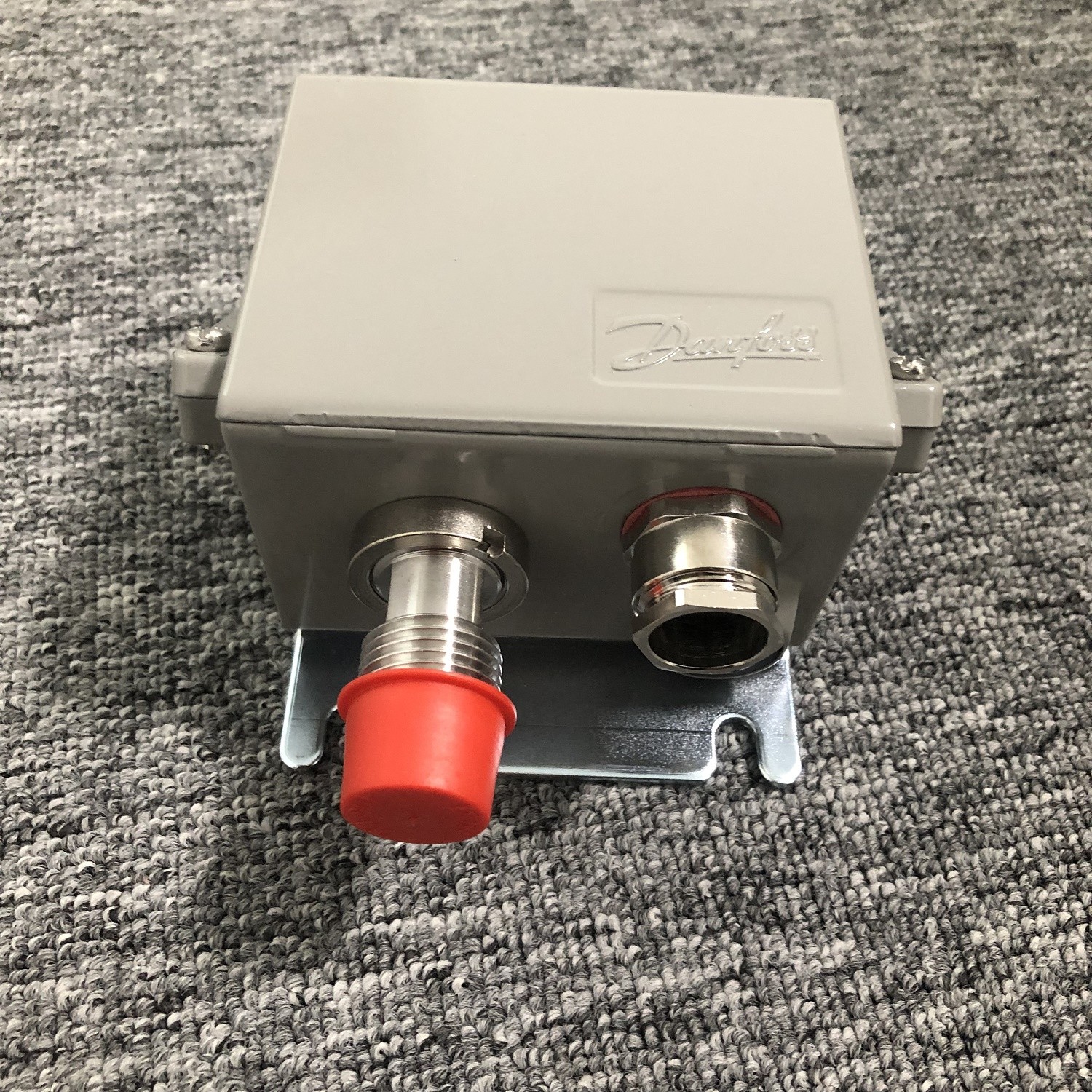

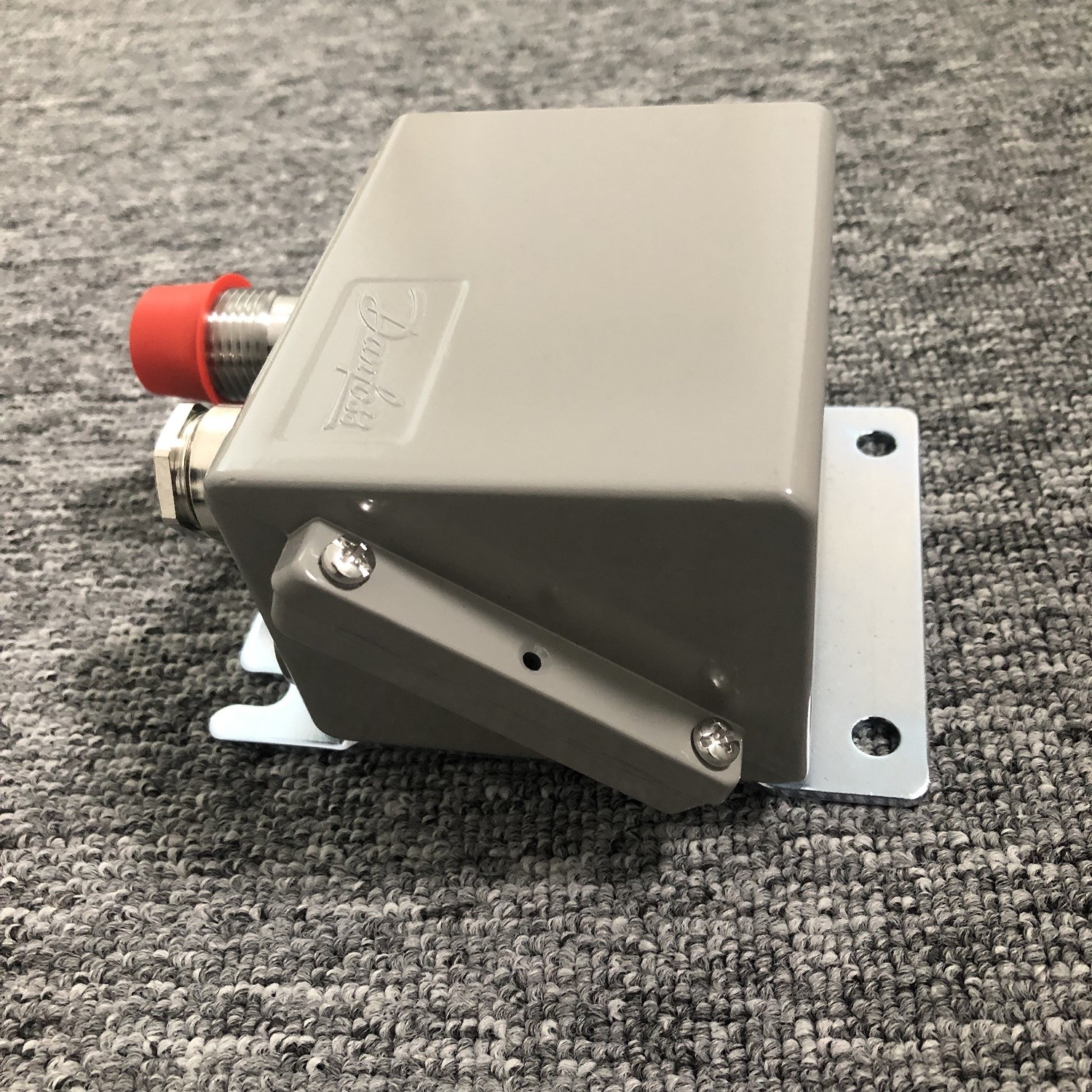

Danfoss EMP 2 Series Pressure Transmitters 084G2106 084G2107 084G2108 084G2109 084G2110 084G2111
| Place of Origin | - |
|---|---|
| Brand Name | Dandoss |
| Certification | - |
| Model Number | 084G2109 |
| Minimum Order Quantity | 1 |
| Price | USD120/PC |
| Packaging Details | Original |
| Delivery Time | 1week |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Japan | Model Number | 084G2109 |
|---|---|---|---|
| Condition | New And Original | Product Name | Thermostat |
| Selling Units | Single Item | Single Package Size | 10X10X10 Cm |
| Single Gross Weight | 1.000 Kg | ||
| Highlight | 084G2108 Pressure Transmitters,084G2107 Pressure Transmitters,084G2106 Pressure Transmitters |
||
Product Description
Product details
| Gross weight | 1.058 Kilogram |
| Net weight | 0.98 Kilogram |
| Volume | 2.447 Liter |
| EAN | 5702423020164 |
| + supply | P |
| - common | N |
| Accuracy, max. [±FS%] | 1 % |
| Accuracy, typical [±FS%] | 0.5 % |
| Approval | ABS BV CCS DNV GL GOST POCC KR LR NNK RINA |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 70 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 158 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical connection | Terminal block |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423020164 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 70 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 158 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Non-linearity BFSL [±FS%] | 0.3 % |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 20 bar |
| Packing format | Multi pack |
| Pressure connection notes | EXT. G1/4 INT |
| Pressure connection size | 1/2 |
| Pressure connection standard | EN 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male/Female |
| Pressure range [bar] [max] | 10 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 145 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| SCIP dossier product name | EMP |
| Specification key | EMP 2-2011-F6CD24-2 |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 12 V |
| Supply voltage [V] DC [min] | 12 V |
| Type | EMP 2 |
| UK RoHS compliance | Out of scope |
