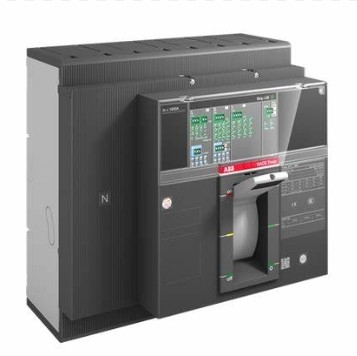

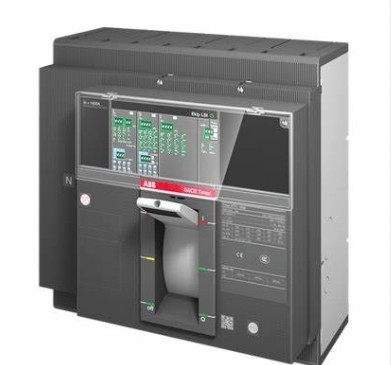

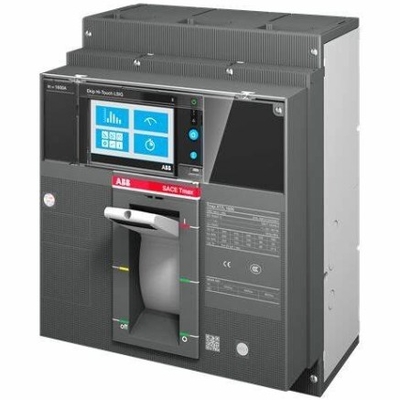

ABB XT7H 1250 Ekip Dip LS/I In 1250A 3p F F Automatic Circuit Breaker With E-Number Norway 4380649

  • ABB XT7H 1250 Ekip Dip LS/I In 1250A 3p F F Automatic Circuit Breaker With E-Number Norway 4380649
  • ABB XT7H 1250 Ekip Dip LS/I In 1250A 3p F F Automatic Circuit Breaker With E-Number Norway 4380649
  • ABB XT7H 1250 Ekip Dip LS/I In 1250A 3p F F Automatic Circuit Breaker With E-Number Norway 4380649
  • ABB XT7H 1250 Ekip Dip LS/I In 1250A 3p F F Automatic Circuit Breaker With E-Number Norway 4380649
Place of Origin china
Brand Name ABB
Certification CE
Model Number XT7H 1250
Minimum Order Quantity 1
Price USD$1240
Packaging Details carton
Delivery Time 4-6weeks
Payment Terms L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ambient Air Temperature Operation -40 ... 125 °C E-Number (Norway) 4380649
Circuit Breaker Type To Be Associated Power Distribution Product Type Automatic Circuit Breaker
Highlight

3p Ekip Dip LS/I

,

ABB Ekip Dip LS/I

,

1250A Ekip Dip LS/I
Leave a Message
Product Description

Environmental

Ambient Air Temperature:
Operation -40 ... 125 °C
Environmental Information:

Ordering

Order Code US and Canada:
XT7HE312EEFF000XXX
E-Number (Norway):
4380649
EAN:
8056221009461
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
166 mm
Product Net Weight:
13.646 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
280 mm
Package Level 1 Height:
350 mm
Package Level 1 Depth / Length:
360 mm
Package Level 1 Gross Weight:
14.364 kg
Package Level 1 EAN:
8056221009461

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC
Electrical Durability:
3000 cycle
60 cycles per hour
Mechanical Durability:
10000 cycle
60 cycles per hour
Number of Poles:
3P
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 57 W
Rated Current (In):
1250 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw):
20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu):
1250 A
