636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

  • 636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS
  • 636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS
Place of Origin USA
Brand Name Dwyer
Certification CCC,CE
Model Number 636D-0 636D-1
Minimum Order Quantity 1
Price USD$60/PC
Packaging Details Original case
Delivery Time 6 Weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Compatible Gases, Liquids Or Vapors Wetted Materials Types 316L SS
Accuracy BFSL: ±0.5% F.S. Stability ±1.0% F.S./yr.
Pressure Limits 3 X Full Scale Differential Pressure; Burst: 2500 Psig. Temperature Limits Ambient Operating: -40 To 140°F (-40 To 60°C)
Compensated Temperature Range -20 To 160°F Thermal Effect ±2% F.S./50°F
Output Signal 12-30 VDC For 4-20 MA Outputs Zero And Span Adjustments 4 To 20 MA DC Or 1-5 VDC
Highlight

316L SS Differential Pressure Transmitter

,

636D-0 636D-1 Differential Pressure Transmitter

,

Dwyer Series 636D Differential Pressure Transmitter
Leave a Message
Product Description

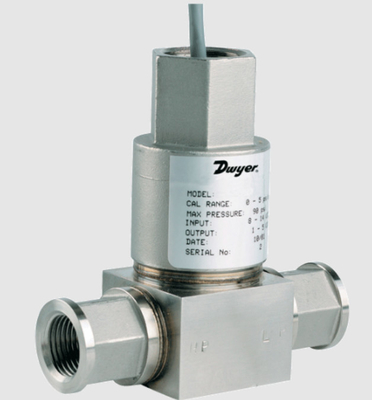

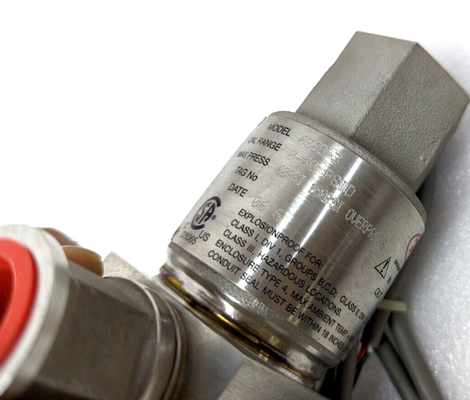

Dwyer Series 636D Fixed Range Differential Pressure Transmitter 636D-0 636D-1



Series 636D Differential Pressure Transmitter can be used for measuring pressures of liquids, gases & vapors. All available ranges have an excellent 0.5% F.S. accuracy with a 4-20 mA Output standard or optional 1-5 VDC output. The NEMA 4 housing is an all 316 welded construction that is designed to withstand the harshest environmental conditions. With all 316L wetted materials, this transmitter is compatible with most media. These units are CSA approved explosion-proof for use in the specified hazardous locations and meet NACE standards for off-shore applications.



Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application



636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS 0
