Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch

  • Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch
  • Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch
  • Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch
  • Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch
  • Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch
Place of Origin USA
Brand Name Dwyer
Certification CCC,CE
Model Number ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N
Minimum Order Quantity 1
Price USD$25/PC
Packaging Details Original case
Delivery Time 3 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Air And Non-combustible, Compatible Gases Temperature Limits Process And Ambient Temperature From -4 To 185°F
Storage -40 To 185°F Pressure Limits Max. Operating Pressure: 40" W.c. (10 KPa) For All Pressure Ranges
Switch Type Single-pole Double-throw Electrical Rating Max. 1.5 A Res./0.4 A Ind./250 VAC, 50/60 Hz; Max. Switching Rate: 6 Cycles/min
Electrical Connections Push-on Screw Terminals. M20x1.5 With Cable Strain Relief Or Optional 1/2" NPT Connection Process Connections 5/16" (7.94 Mm) Outside Diameter Tubing, 1/4" (6.0 Mm) Inside Diameter Tubing
Enclosure Rating IP54 Mounting Orientation Vertically, With Pressure Connections Pointing Downwards
Highlight

ADPS-07-2-N Differential Pressure Switch

,

ADPS-06-2-N Differential Pressure Switch

,

ADPS-08-2-N Differential Pressure Switch
Leave a Message
Product Description

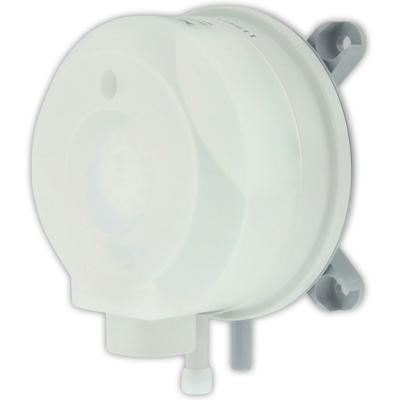

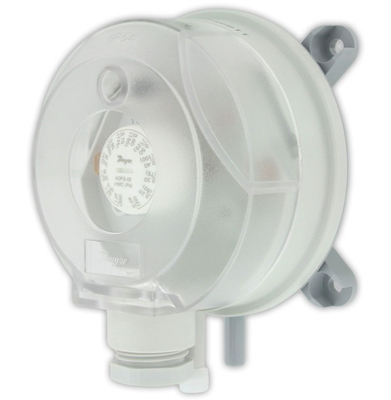

Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch



The Series ADPS/EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS/EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. Series EDPS models meet UL508 and are constructed of plenum rated plastics. The compact size, adjustment knob and low cost make the ADPS/EDPS the perfect choice for HVAC applications.



Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
Relay contact allows simple integration with DDC or building systems



Dwyer ADPS-06-2-N ADPS-07-2-N ADPS-08-2-N Differential Pressure Switch 0
