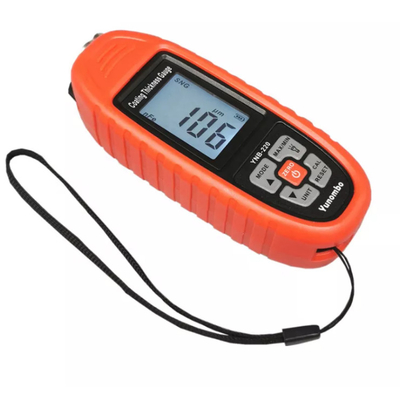

Digital Car Paint Thickness Tester Coating Thickness Gauge With Led Flashlight YNB-220
| Place of Origin | China |
|---|---|
| Brand Name | Yunombo |
| Certification | CE |
| Model Number | YNB-220 |
| Minimum Order Quantity | 1 |
| Price | USD$50/PC |
| Packaging Details | Carton |
| Delivery Time | 5-10 Work days |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | THICKNESS GAUGE | Customized Support | OEM, ODM |
|---|---|---|---|
| Dimension | 46.4*30.4*122.2mm | Weight | 109g(excluding Of Batteries) |
| Power Supply | 2*1.5V AAA Batteries | Condition | Original And New |
| Highlight | Digital Car Paint Thickness Tester,LED Flashlight Paint Thickness Tester YNB-220,Car Coating Thickness Gauge |
||
You can tick the products you need and communicate with us in the message board.
| Measurement ranges | 0~1500μm/0~59mil/0~1.5mm | |
|---|---|---|
| Resolution | (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm | |
| Measuring error | ≤150μm ， ± 5μm; >150μm ，±(3%H+1μm） | |
| Minimum diameter of magnetic substrate | 12mm | |
| Minimum thickness of magnetic substrate | 0.5mm | |
| Minimum curvature radius of convex magnetic substrate | 2mm | |
| Minimum curvature radius of concave magnetic substrate | 11mm | |
| Minimum diameter of non-magnetic substrate | 50mm | |
| Minimum thickness of non-magnetic substrate | 0. 5mm | |
| Operating temperature range | -20~40℃ | |
| Operating humidity range | 10~95%RH |
Product Description
New Yunombo Digital Auto Car Paint Thickness Tester YNB-220 YNB-400 YNB-555 Coating Thickness Gauge With Led flashlight
Functions:
1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.
2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4.The instrument can automatically recognize whether the magnetic metal substrate is covered with non-magnetic metal coating (usually zinc), and this function is optional.
5.Single measurement, continuous measurement and differential measurement available.
6. With maximum, minimum and average value viewing function.
7.Zero-point calibration, 2-point calibration and basic calibration available.
8.Metric and imperial units of measurement optional.
9.LCD backlight.
10. LED light
11. Automatic shutdown.
Specification:
| Measurement ranges | 0~1500μm/0~59mil/0~1.5mm |
| Resolution | (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm |
| Measuring error |
≤150μm , ± 5μm >150μm ,±(3%H+1μm) |
| Minimum diameter of magnetic substrate | 12mm |
| Minimum thickness of magnetic substrate | 0.5mm |
| Minimum curvature radius of convex magnetic substrate | 2mm |
| Minimum curvature radius of concave magnetic substrate | 11mm |
| Minimum diameter of non-magnetic substrate | 50mm |
| Minimum thickness of non-magnetic substrate | 0. 5mm |
| Operating temperature range | -20~40℃(It is recommended to calibrate it again when use in different environments, especially for large temperature difference) |
| Operating humidity range | 10~95%RH |
| Power supply | 2*1.5V AAA batteries |
| Overall dimensions | 46.4*30.4*122.2mm |
| Weight | 109g(excluding of batteries) |
Packages:
Package A:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films(6pcs)
1pc Black rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Package B:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films(6pcs)
1pc Red rubber case
1pc Fabric cover
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
Package C:
1pc YNB-220 coating thickness gauge with LED light
1pc Steel plate
1pc Aluminum plate
1set Films(6pcs)
1pc Gift pouch
1pc Hanging rope
1pc English&Russian manual
1pc Retail box
