Endress Huaser Ultrasonic FMU41-ANB2A4 For Time-of-Flight Measurement In Process Pressure
| Place of Origin | Germany |
|---|---|
| Brand Name | Endress Hauser |
| Certification | CCC,CE |
| Model Number | FMU41-ANB2A4 |
| Minimum Order Quantity | 1 |
| Price | USD$1030/PC |
| Packaging Details | Original |
| Delivery Time | 6-8 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Ultrasonic Measurement Time-of-Flight Prosonic FMU41 | Process Temperature | -40 °C ... 80 °C |
|---|---|---|---|
| Process Pressure / Max. Overpressure Limit | 0.7 Bar ... 3 Bar Abs | Max. Measurement Distance | Liquids: 8 M (26 Ft), Solids: 3.5 M (11 Ft) |
| Process Connection | G / NPT 2" | Blocking Distance | 0.35 M |
| Communication | 4...20 MA HART | Weight | 5kg |
| Highlight | Time-of-Flight Measurement Ultrasonic FMU41-ANB2A4,Endress Huaser Ultrasonic FMU41-ANB2A4,Process Pressure Ultrasonic FMU41-ANB2A4 |
||
Product Description

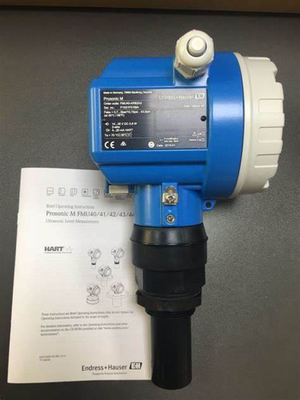

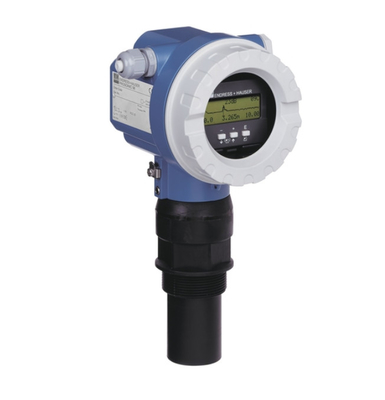

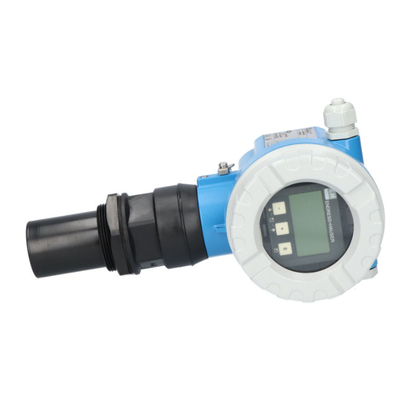

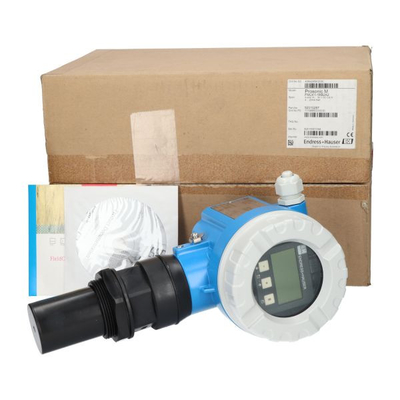

Endress Huaser Ultrasonic measurement Time-of-Flight Prosonic FMU41-ANB2A4
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 8m
Two-wire or four wire instrument for continuous non-contact level and flow measurement.
-
Process connection: Thread
-
Temperature: -40 to +80°C (-40 to +176°F)
-
Pressure: +0.7 to +3bar (+10 to +44psi)
-
Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)
-
Blocking distance: Liquids and Solids 0.35m (1.15ft)
-
International explosion protection certificates
