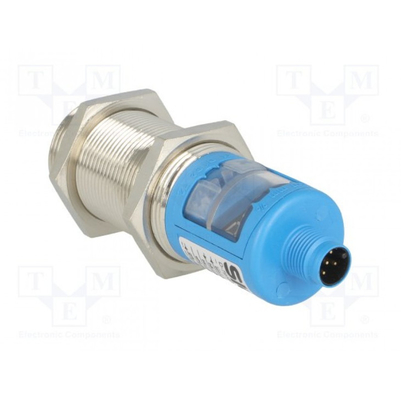

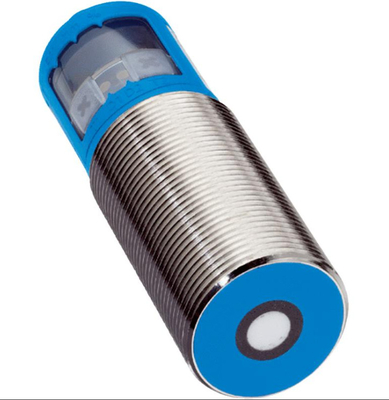

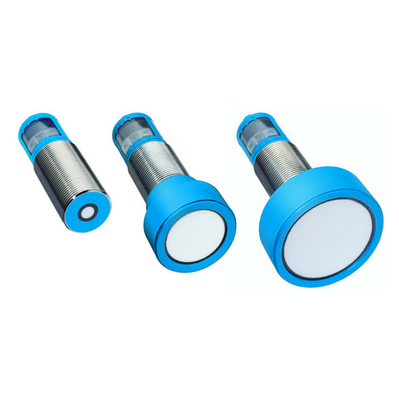

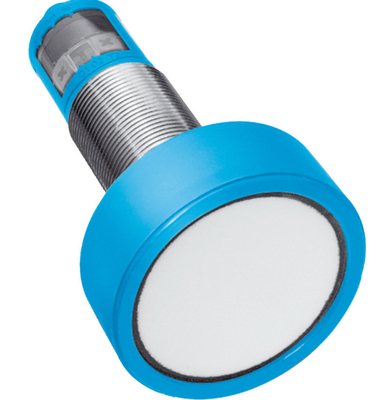

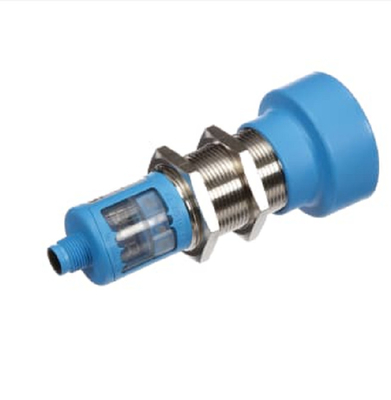

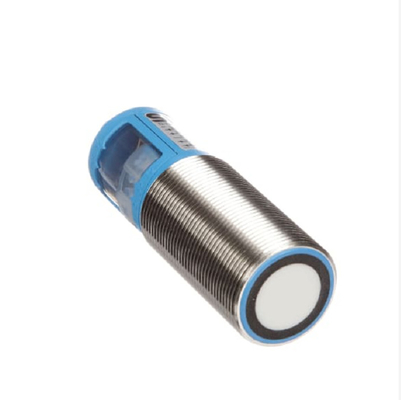

SICK Ultrasonic Distance Sensors UM30-212113 UM30-215113 UM30-215115 UM30-214114 UM30-214118 UM30-211113

Detailed technical data Mechanics/electronics Supply voltage Vs DC 9 V ... 30 V 1) 2) Power consumption ≤ 2.4 W 3) Initialization time < 300 ms Design Cylindrical Housing material Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) Thread size M30 x 1.5 Connection type Male connector, M12, 5-pin Indication LED display, 2 x LED Weight 210 g Sending axis Straight Dimensions (W x H x D) 47.5 mm x 47.5 mm x 102 mm Enclosure rating IP65 / IP67 Protection class III 1) Limit values, reverse-polarity protected Operation in short-circuit protected network: max. 8 A, class 2. 2) 15 V ... 30 V when using the analog voltage output. 3) Without load. Safety-related parameters MTTFD 101 years DCavg 0% Performance Operating range, limiting range 350 mm ... 3,400 mm, 5,000 mm Target Natural objects 1) In relation to the current measured value, minimum value ≥ resolution. 2) Referring to current measurement value. 3) Temperature compensation can be switched off, without temperature compensation: 0.17 % / K. 4) Subsequent smoothing of the analog output, depending on the application, may increase the response time by up to 200 %. 2 ULTRASONIC DISTANCE SENSORS | SICK Product data sheet | 2024-06-27 07:49:40 Subject to change without notice UM30-214118 | UM30 ULTRASONIC DISTANCE SENSORS Resolution ≥ 0.18 mm Repeatability ± 0.15 % 1) Accuracy ± 1 % 2) 3) Temperature compensation ✔ Response time 180 ms 4) Switching frequency 4 Hz Output time 43 ms Ultrasonic frequency (typical) 120 kHz Detection area (typical) See diagrams Additional function Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB) Teach-in of digital output Set levels of digital outputs Invertable digital output Set on delay digital output Teach-in of analog output Scaling of analog outputs Invertable analog output Automatic selection of analog current or voltage output Synchronization of up to 50 sensors Multiplexing: no cross talk of up to 50 sensors Adjustable measurement filters: Measured value filters/Filter strength/Foreground suppression/Detection area/Sensitivity and sound beam Display (can be deactivated) Reset to factory default 1) In relation to the current measured value, minimum value ≥ resolution. 2) Referring to current measurement value. 3) Temperature compensation can be switched off, without temperature compensation: 0.17 % / K. 4) Subsequent smoothing of the analog output, depending on the application, may increase the response time by up to 200 %. Interfaces Digital output Number 1 1) Type PNP Maximum output current IA ≤ 200 mA Analog output Number 1 Type Current output / voltage output Function Automatic selection of analog current or voltage output dependent on load Current 4 mA ... 20 mA, ≤ 500 Ω 2) Voltage 0 V ... 10 V, ≥ 100,000 Ω Resolution 12 bit Multifunctional input (MF) 1 x MF Hysteresis 50 mm 1) PNP: HIGH = VS - (< 2 V) / LOW = 0 V. 2) For 4 mA ... 20 mA and Vs ≤ 20 V max. load ≤ 100 Ω. Ambient data Ambient temperature, operation –25 °C ... +70 °C Ambient temperature, storage –40 °C ... +85 °C 2024-06-27 07:49:40 | Product data sheet Subject to change without notice ULTRASONIC DISTANCE SENSORS | SICK 3 A B C D E F H I J K L M N O P Q R S T UM30-214118 | UM30 ULTRASONIC DISTANCE SENSORS Classifications ECLASS 5.0 27270804 ECLASS 5.1.4 27270804 ECLASS 6.0 27270804 ECLASS 6.2 27270804 ECLASS 7.0 27270804 ECLASS 8.0 27270804 ECLASS 8.1 27270804 ECLASS 9.0 27270804 ECLASS 10.0 27270804 ECLASS 11.0 27270804 ECLASS 12.0 27272806 ETIM 5.0 EC001846 ETIM 6.0 EC001846 ETIM 7.0 EC001846 ETIM 8.0 EC001846 UNSPSC 16.0901 41111960 Dimensional drawing (Dimensions in mm (inch)) UM30-214 3 3 2 102 (4.02) 69 (2.72) 33 (1.30) 19.5 (0.77) Ø 47.5 (1.87) M30 x 1.5 5 (0.20) 5 (0.20) 1 11 (0.43) M12 x 1 ① Connection ② Display ③ Mounting nuts, SW 36 mm Connection type 1 2 4 3 5 4 ULTRASONIC DISTANCE SENSORS | SICK Product data sheet | 2024-06-27 07:49:40 Subject to change without notice UM30-214118 | UM30 ULTRASONIC DISTANCE SENSORS Connection diagram UM30-21x118 Connector M12, 5-pin L+ Q/¯Q 1 4 brn blk QA wht 2 3 M blu gra 5 Sync/Multi1 ① Synchronization and multiplex mode, Connect+ communication Adjustment possible 2 4 4 5 5 T1 D1 D2 T2 ② Display ④ Control elements ⑤ Status indicators 2024-06-27 07:49:40 | Product data sheet Subject to change without notice ULTRASONIC DISTANCE SENSORS | SICK 5 A B C D E F H I J K L M N O P Q R S T UM30-214118 | UM30 ULTRASONIC DISTANCE SENSORS Detection area 1,600 (63.00) 2,400 (94.49) 2,400 (94.49) 1,600 (63.00) 800 (31.50) 800 (31.50) 0 Detection area in mm (inch) 3 4 5 2 0 800 (31.50) 2,400 (94.49) 1,600 (63.00) 3,200 (125.98) 4,000 (157.48) 5,600 (220.47) 4,800 (188.98) Detection area in mm (inch) 1 ① Detection range dependent on reflection properties, size, and alignment of the object ② Limiting range ③ Operating range ④ Example object: aligned plate 500 mm x 500 mm
