WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness

  • WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
  • WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
  • WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
  • WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
Place of Origin china
Brand Name Wintact
Certification CE
Model Number WT2110B
Minimum Order Quantity 1
Price USD$60/PC
Packaging Details Plastic Box+Paper Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Coating Thickness Gauge Color Black
Size 70.30*38.6*149.59mm Weight 136.9(including Battery)
Measurement Range 0~1500μm/0~59mil/0~1.5mm Resolution ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
Measurement Error ≤150μm , ±5μm；>150μm , ±(3%H+1μm) Minimum Diameter Of Magnetic Metal Substrate 12mm
Minimum Thickness Of Magnetic Metal Substrate 0.5mm Minimum Radius Of Curvature For Magnetic Convex Substrate 2mm
Minimum Radius Of Curvature For Magnetic Concave Substrate 11mm Minimum Diameter Of Non- Magnetic Metal Substrate 50mm
Minimum Thickness Of Non- Magnetic Metal Substrate 0.5mm Battery 3x1.2V NiMH Battery (weight 36.5g) Or 5V1Apower Adapter
Highlight

Coating Film Thickness Gauge

,

Non Magnetic Coating Thickness Gauge WT2100

,

Measuring Film Thickness Gauge
Leave a Message
Product Description

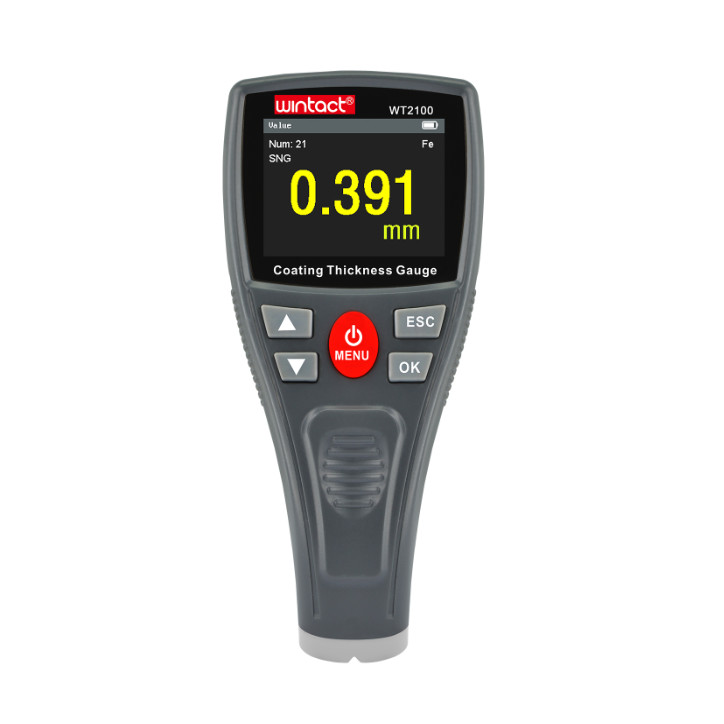

China Wintact WT2100 WT2110/2110B Wintact Coating/Film Thickness Gauge For Measuring Thickness Of Non-magnetic



This product is a color-screen portable coating thickness gauge with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry,commodity inspection and other testing areas.





Coating Thickness Gauge possesses the following features:



1.Menu operation and color-screen HD display.
2.Thickness measurement of non-magnetic coating on magnetic metal
substrate surface and non-metallic coating on nonmagnetic metal
substrate .
3.Two measurement methods: single measurement, continuous
measurement.
4.Three calibration modes: basic, offset, zero calibration.
5.Metric/imperial unit and storage function.
6.Screen rotation, charge protection, multi-interface displays,screen
brightness selection.
7.Automatic shutdown.
8.Bluetooth function(go with corresponding APP).
9.USB transport data(operating with PC software).
10.USB rechargeable.



Specifications



Measurement range
0~1500μm/0~59mil/0~1.5mm
Resolution
( 0.1μm(<100μm),1μm(≥100μm))/
0.1mil/0.001mm
Measurement error
≤150μm , ±5μm
>150μm , ±(3%H+1μm)
Minimum diameter of
magnetic metal substrate
12mm
Minimum thickness of
magnetic metal substrate
0.5mm
Minimum radius of curvature
for magnetic convex substrate
2mm
Minimum radius of curvature
for magnetic concave substrate
11mm
Minimum diameter of non-
magnetic metal substrate
50mm
Minimum thickness of non-
magnetic metal substrate
0.5mm
Battery
3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
Size
70.30*38.6*149.59mm
Weight
136.9(including battery)







Accessories



Calibration sheet*6
Aluminum base*1
Iron base*1
USB cable*1
Manual *1
Host*1
PP box*1
Color box*1
Ni-MH rechargeable battery*3
Plug*1
